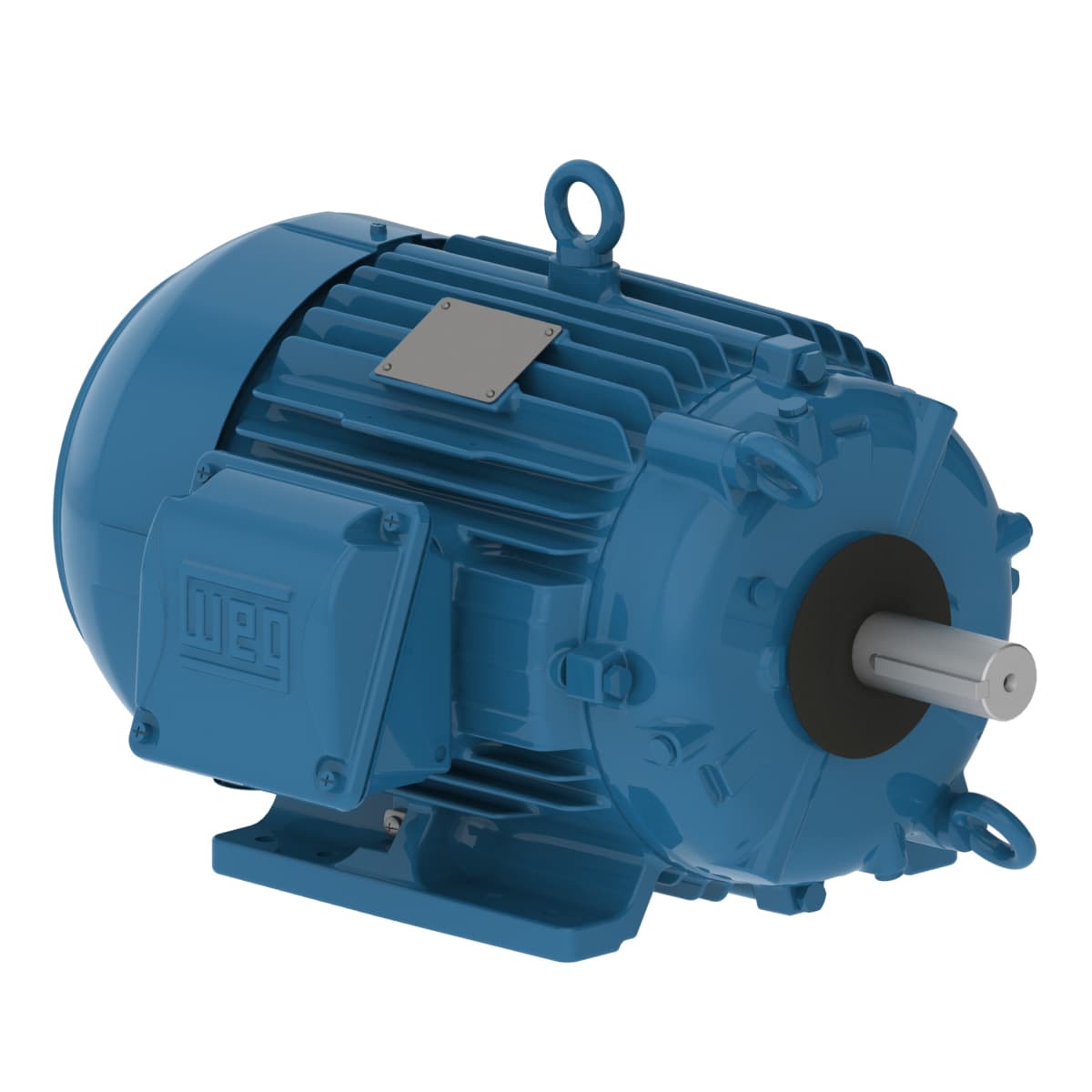

01089EP3QCT215VF1-W2 WEG AC Motors
Part#:01089EP3QCT215VF1-W2
Manufacturer:WEG
Alt. Part#:7909018678993
Product Lifecycle:Active
Get a quick Quote!
W22 Cooling Tower High Efficiency 2.5/10 HP 8/4P 213/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01089EP3QCT215VF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2.5/10 HP
- Rated Speed1765 rpm
- Number of Poles45508 Pole
- Voltage460 V
- Flange TypeWithout
- Number of Poles 8/4
- Breakdown torque 300 %
- Standard NEMA MG-1
- LRC 7.0x(Code J)
- Duty Cycle Cont.(S1)
- Altitude 1000 m.a.s.l.
- Flange Without
- Frequency 60 Hz
- Service factor 1.15
- Mounting F-1
- Rated current 13.0 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output rating 2.5/10 HP
- Rated voltage 460 V
- Locked rotor time 10s (cold) 6s (hot)
- Enclosure IC411 - TEFC
- Synchronous speed 900/1800 rpm
- L. R. Amperes 91.0 A
- Moment of inertia (J) 1.56 sq.ft.lb
- Degree of Protection IP55
- Output 10 HP (7.5 kW)
- Starting Method Direct On Line
- Terminal box¹ Left position
- Slip 1.94 %
- Frame 213/5T
- Locked rotor torque 210 %
- Rated torque 29.8 ft.lb
- Temperature rise 80 K
- Rated speed 1765 rpm
- No load current 7.20 A
- Approx. weight³ 174 lb
- Voltage 460 V
- Ambient temperature -20°C to +40°C
- Noise level² 61.0 dB(A)
- Number of poles 8/4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
