01018XT3E215T WEG AC Motors
Part#:01018XT3E215T
Manufacturer:WEG
Alt. Part#:7909323983317
Product Lifecycle:Active
Get a quick Quote!

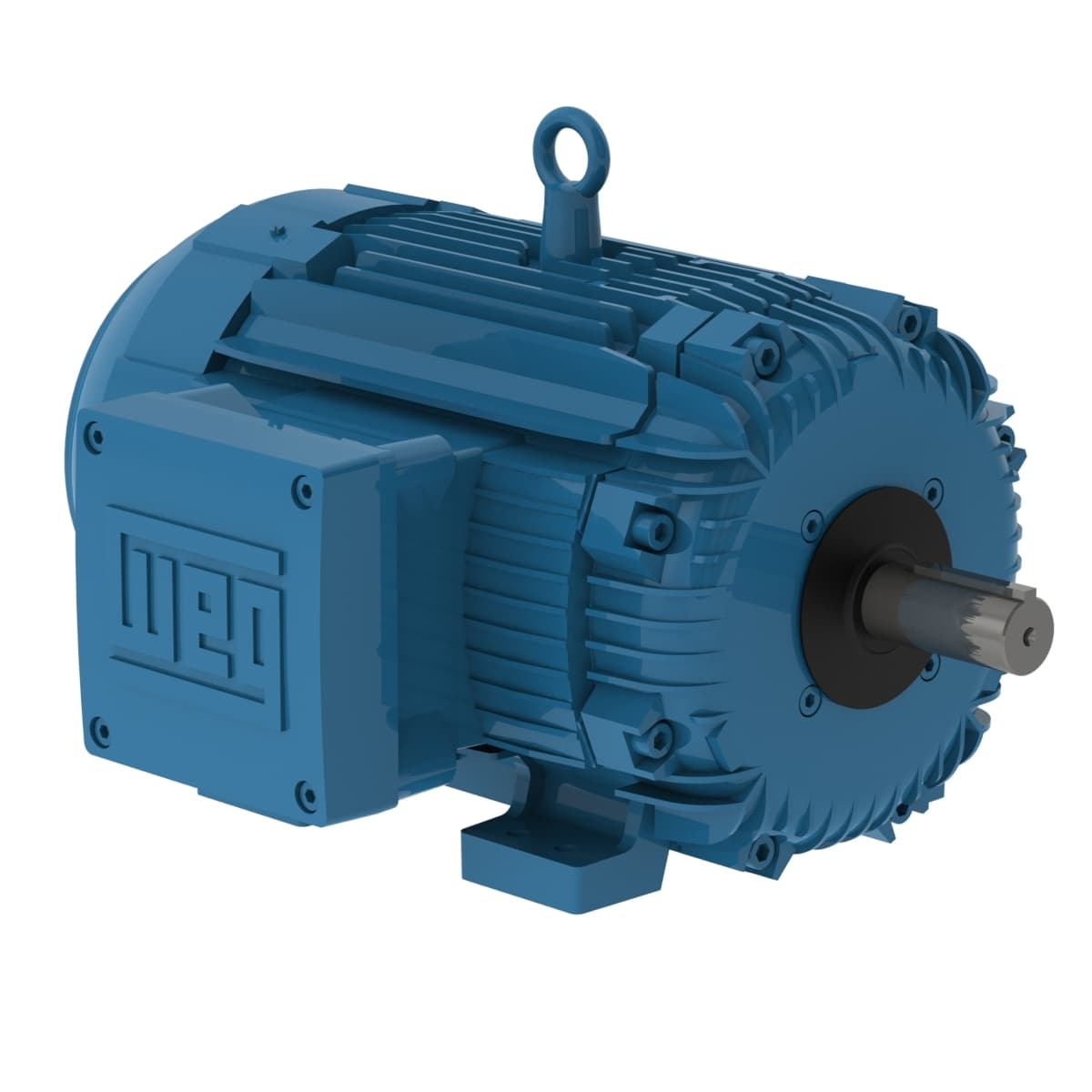

W21 Explosion-proof Motor NEMA Premium Efficiency 10 HP 4P L215T 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 01018XT3E215T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Number of Poles 4
- Moment of inertia (J) 1.34 sq.ft.lb
- Noise level² 58.0 dB(A)
- Terminal box¹ Left position
- Frame L215T
- Design B
- Duty Cycle Cont.(S1)
- Number of poles 4
- Flange Without
- Rated current 28.1-25.4/12.7 A
- Breakdown torque 270 %
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Rated voltage 208-230/460 V
- No load current 9.48-11.0/5.50 A
- Output rating 10 HP
- Frequency 60 Hz
- Rated torque 29.8 ft.lb
- Mounting F-1
- Synchronous speed 1800 rpm
- L. R. Amperes 183-165/82.5 A
- Locked rotor time 27s (cold) 15s (hot)
- Starting Method Direct On Line
- Approx. weight³ 229 lb
- Temperature rise 80 K
- Slip 1.94 %
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Output 10 HP (7.5 kW)
- Locked rotor torque 210 %
- Insulation Class F
- Standard NEMA MG-1
- Rated speed 1765 rpm
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- LRC 6.5x(Code H)
- Voltage 208-230/460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01018XT3E215T Specs
