01018ET3E215T-W22 WEG AC Motors
Part#:01018ET3E215T-W22
Manufacturer:WEG
Alt. Part#:7891327151864
Product Lifecycle:Active
In-stock parts: 2
Jun 20, 2025

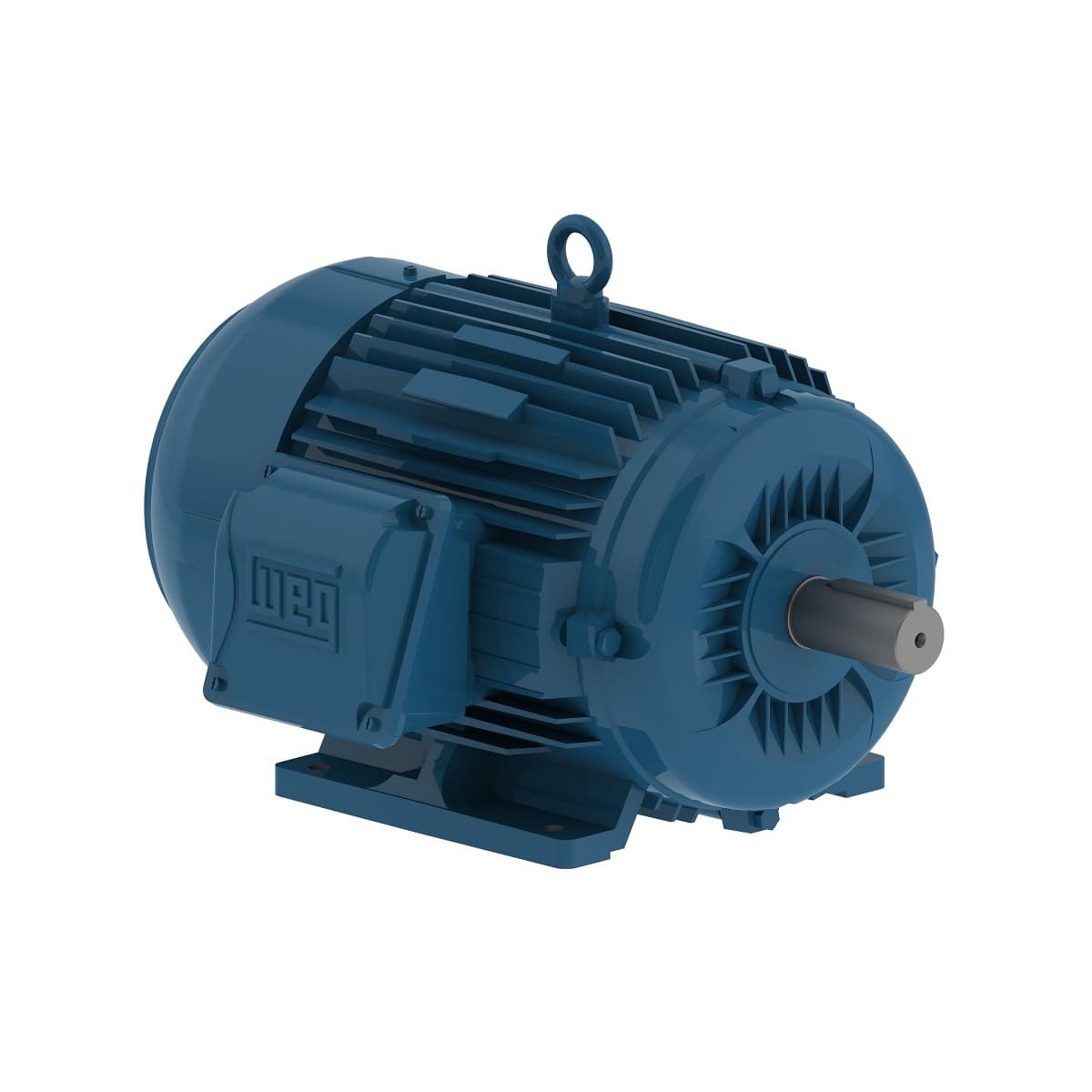

W22 NEMA Premium Efficiency 10 HP 4P 213/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 01018ET3E215T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated speed 1765 rpm
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- LRC 6.4x(Code H)
- Temperature rise 80 K
- Mounting F-1
- Frequency 60 Hz
- Altitude 1000 m.a.s.l.
- Locked rotor torque 200 %
- Rated current 25.3/12.7 A
- Ambient temperature -20°C to +40°C
- Moment of inertia (J) 1.51 sq.ft.lb
- Output rating 10 HP
- Frame 213/5T
- No load current 11.3/5.65 A
- Starting Method Direct On Line
- Output 10 HP (7.5 kW)
- Slip 1.94 %
- Insulation Class F
- Terminal box¹ Left position
- L. R. Amperes 162/81.1 A
- Breakdown torque 295 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 177 lb
- Locked rotor time 30s (cold) 17s (hot)
- Synchronous speed 1800 rpm
- Rated voltage 230/460 V
- Design B
- Number of poles 4
- Enclosure IC411 - TEFC
- Number of Poles 4
- Rated torque 29.8 ft.lb
- Degree of Protection IP55
- Noise level² 58.0 dB(A)
- Flange Without
- Voltage 230/460//380 V
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01018ET3E215T-W22 Specs
