01009XT3E284T WEG AC Motors
Part#:01009XT3E284T
Manufacturer:WEG
Alt. Part#:7909492061878
Product Lifecycle:Active
Get a quick Quote!

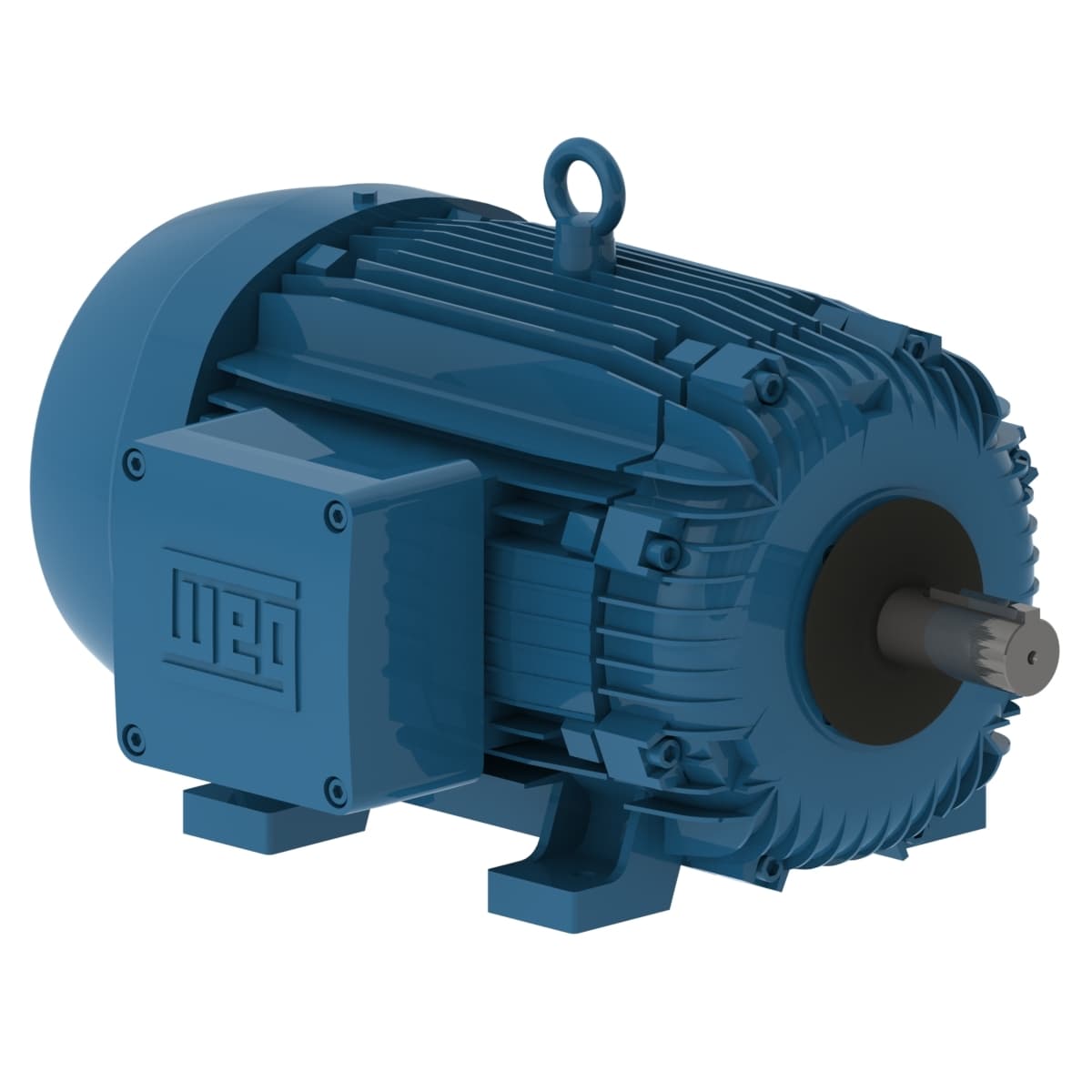

W21 Explosion-proof Motor NEMA Premium Efficiency 10 HP 8P 284T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 01009XT3E284T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed884 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated current 26.8/13.4 A
- Output 10 HP (7.5 kW)
- Design B
- Insulation Class F
- Standard NEMA MG-1
- Voltage 230/460//380 V
- Synchronous speed 900 rpm
- Frequency 60 Hz
- No load current 12.0/6.00 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Frame 284T
- Number of Poles 8
- Rated speed 884 rpm
- Moment of inertia (J) 7.20 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 8
- L. R. Amperes 161/80.4 A
- LRC 6.0x(Code H)
- Rated torque 59.4 ft.lb
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Slip 1.78 %
- Breakdown torque 240 %
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Mounting F-1
- Approx. weight³ 467 lb
- Terminal box¹ Left position
- Rated voltage 230/460 V
- Locked rotor torque 250 %
- Locked rotor time 54s (cold) 30s (hot)
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Flange Without
- Output rating 10 HP
- Noise level² 54.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01009XT3E284T Specs
