01009ST3QIE284TC-W22 WEG AC Motors
Part#:01009ST3QIE284TC-W22
Manufacturer:WEG
Alt. Part#:7899058010252
Product Lifecycle:Active
Get a quick Quote!

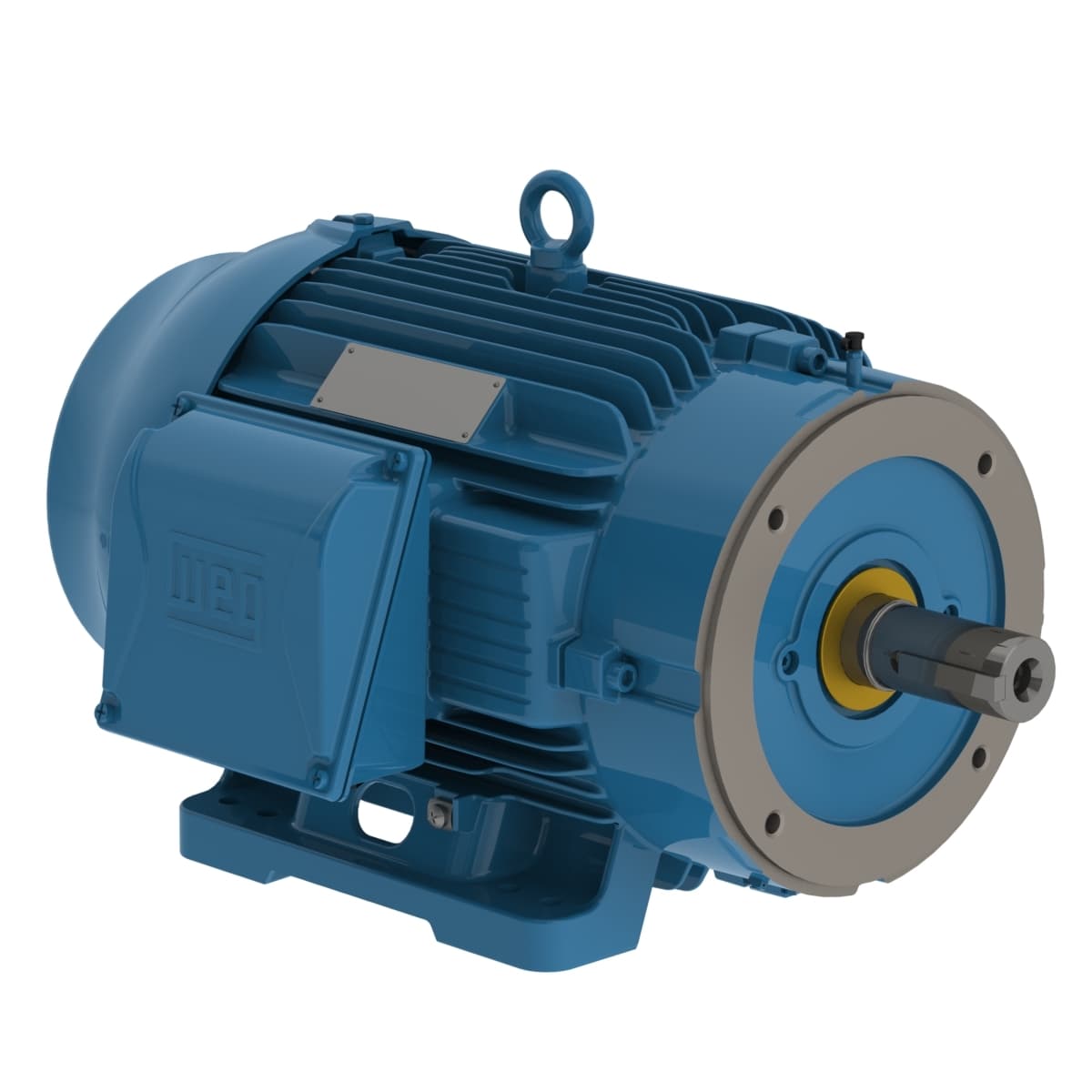

W22 IEEE 841 NEMA Premium Efficiency 10 HP 8P 284/6TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01009ST3QIE284TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed880 rpm
- Number of Poles8 Pole
- Voltage460 V
- Flange TypeC
- Frame 284/6TC
- Moment of inertia (J) 7.20 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 460 V
- Rated current 13.4 A
- Slip 2.22 %
- Design B
- Noise level² 54.0 dB(A)
- Terminal box¹ Left position
- Frequency 60 Hz
- Breakdown torque 240 %
- Mounting F-1
- LRC 5.6x(Code G)
- Temperature rise 80 K
- Standard NEMA MG-1
- No load current 6.50 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 373 lb
- Locked rotor torque 200 %
- Degree of Protection IP55
- Number of poles 8
- Insulation Class F
- Synchronous speed 900 rpm
- Output 10 HP (7.5 kW)
- Rated torque 59.7 ft.lb
- Service factor 1.25
- Enclosure IC411 - TEFC
- Number of Poles 8
- Rated voltage 460 V
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Flange C
- L. R. Amperes 75.0 A
- Rated speed 880 rpm
- Locked rotor time 57s (cold) 32s (hot)
- Altitude 1000 m.a.s.l.
- Output rating 10 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01009ST3QIE284TC-W22 Specs
