00736OT3V184JM-S WEG AC Motors
Part#:00736OT3V184JM-S
Manufacturer:WEG
Alt. Part#:7894171440900
Product Lifecycle:Active
Get a quick Quote!

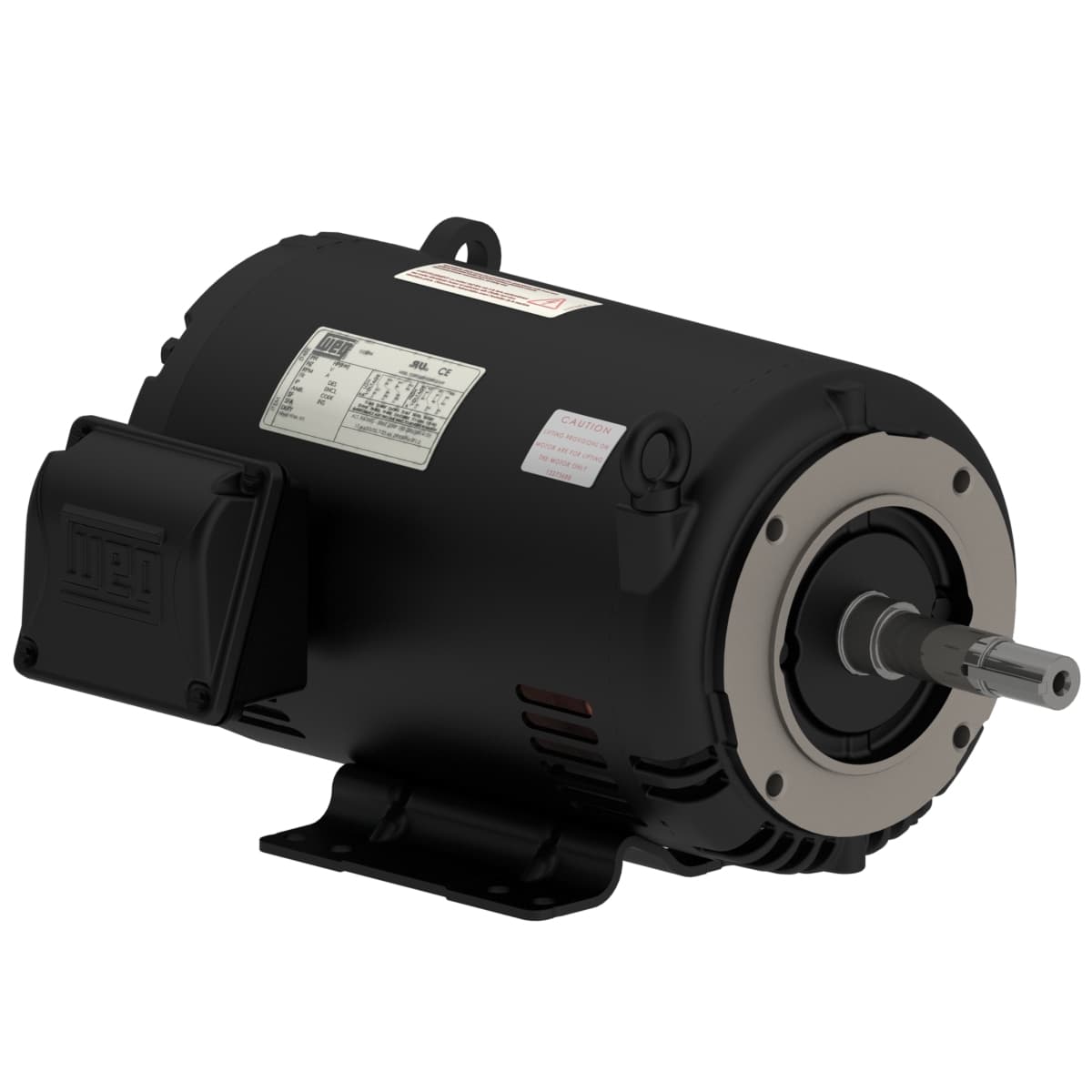

Rolled Steel JM Pump NEMA Premium Efficiency 7.5 HP 2P 182/4JM 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00736OT3V184JM-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed3500 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeC
- L. R. Amperes 153/76.3 A
- Design B
- Approx. weight³ 77.1 lb
- Output rating 7.5 HP
- Number of Poles 2
- Breakdown torque 300 %
- Starting Method Direct On Line
- Voltage 200/400 V
- Rated current 20.6/10.3 A
- Rated torque 11.3 ft.lb
- Enclosure IC01 - ODP
- Frequency 60 Hz
- No load current 8.97/4.49 A
- Rotation¹ Both (CW and CCW)
- Slip 2.78 %
- Insulation Class F
- Standard NEMA MG-1
- LRC 7.4x(Code H)
- Service factor 1.15
- Mounting F-1
- Number of poles 2
- Output 7.5 HP (5.5 kW)
- Moment of inertia (J) 0.1818 sq.ft.lb
- Noise level² 65.0 dB(A)
- Terminal box¹ Left position
- Rated voltage 200/400 V
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Flange C
- Rated speed 3500 rpm
- Locked rotor time 21s (cold) 12s (hot)
- Altitude 1000 m.a.s.l.
- Frame 182/4JM
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
