00736ES1B213T-W22 WEG AC Motors
Part#:00736ES1B213T-W22
Manufacturer:WEG
Alt. Part#:7909323717158
Product Lifecycle:Active
Get a quick Quote!

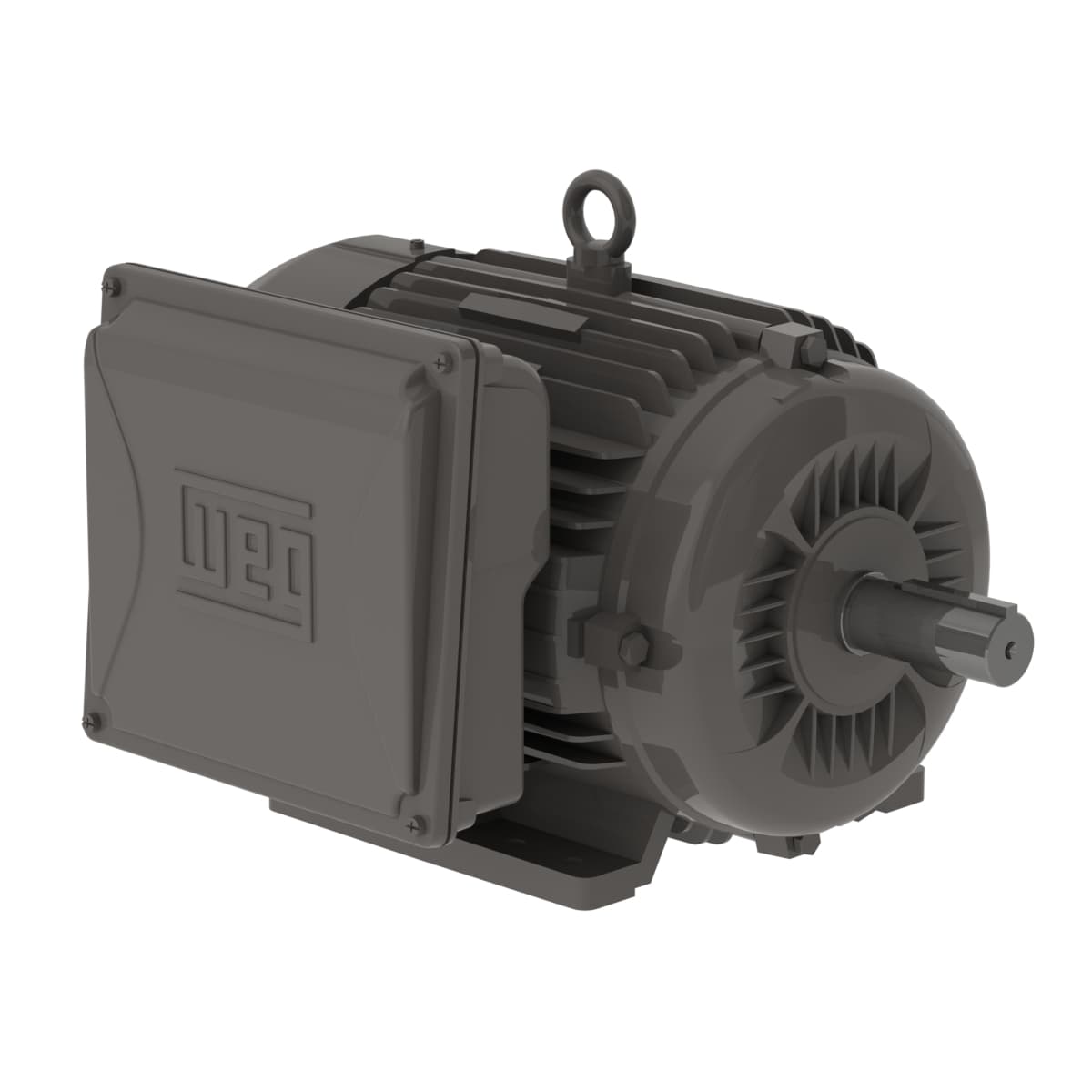

W22 7.5 HP 2P 213/5T 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00736ES1B213T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed3520 rpm
- Number of Poles2 Pole
- Voltage115/208-230 V
- Flange TypeWithout
- Frame 213/5T
- LRC 8.1x(Code J)
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Rated torque 11.2 ft.lb
- Enclosure IC411 - TEFC
- L. R. Amperes 497/275-249 A
- Locked rotor torque 210 %
- Rotation¹ Both (CW and CCW)
- Output 7.5 HP (5.5 kW)
- Starting Method Direct On Line
- Output rating 7.5 HP
- Rated voltage 115/208-230 V
- Locked rotor time 12s (cold) 7s (hot)
- Service factor 1.15
- Terminal box¹ Left position
- Slip 2.22 %
- Breakdown torque 310 %
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Number of Poles 2
- Insulation Class F
- Number of poles 2
- No load current 20.8/13.3-10.4 A
- Temperature rise 105 K
- Approx. weight³ 159 lb
- Rated speed 3520 rpm
- Degree of Protection IP55
- Flange Without
- Rated current 61.4/33.9-30.7 A
- Moment of inertia (J) 0.4865 sq.ft.lb
- Mounting F-1
- Voltage 115/208-230 V
