00312OT3H213T-S WEG AC Motors
Part#:00312OT3H213T-S
Manufacturer:WEG
Alt. Part#:7909158785667
Product Lifecycle:Active
Get a quick Quote!

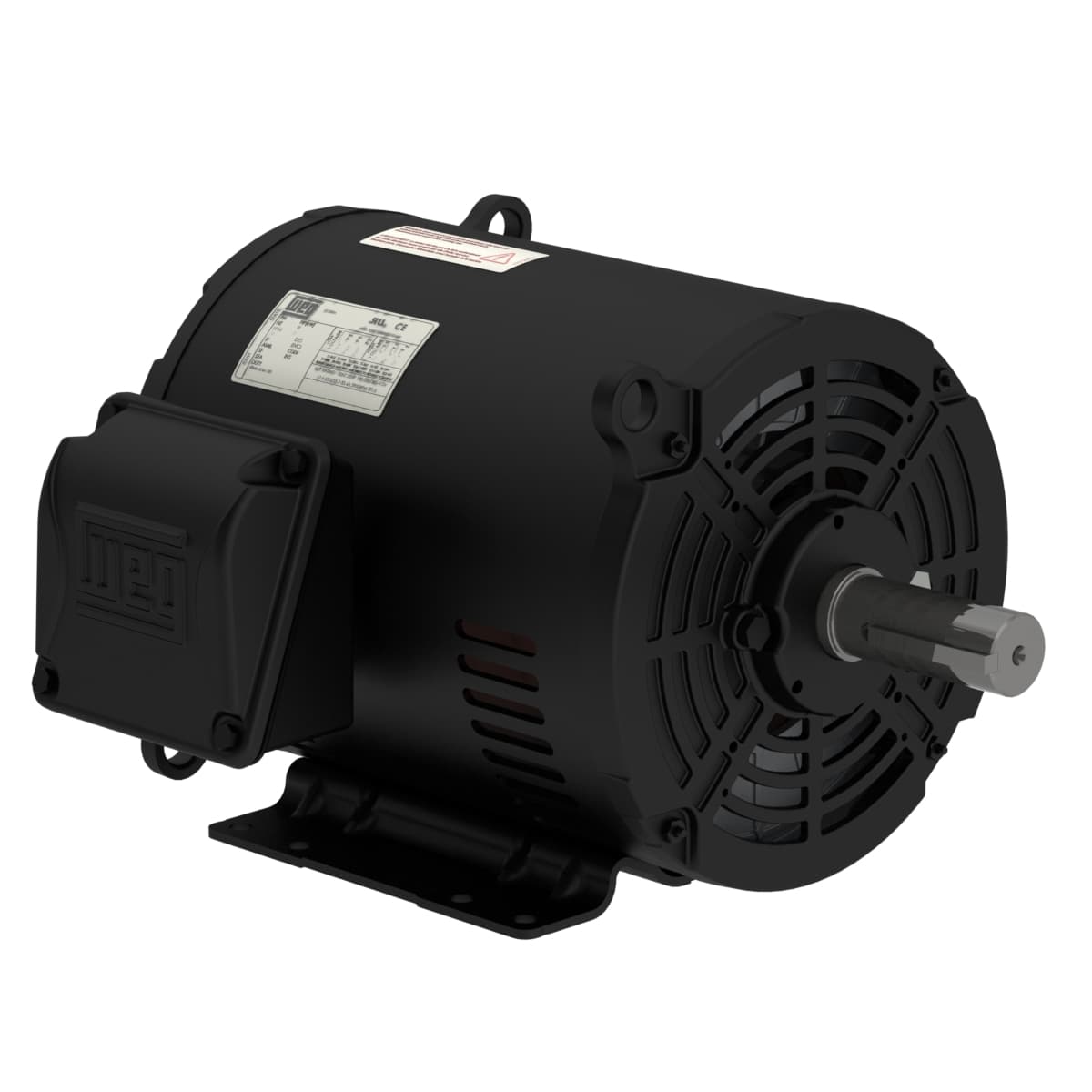

Rolled Steel NEMA Premium Efficiency 3 HP 6P 213/5T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00312OT3H213T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- LRC 5.9x(Code H)
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Rated current 3.33 A
- Breakdown torque 260 %
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Rated speed 1175 rpm
- Locked rotor time 70s (cold) 39s (hot)
- Mounting F-1
- Flange Without
- Frequency 60 Hz
- Moment of inertia (J) 0.8104 sq.ft.lb
- Approx. weight³ 104 lb
- L. R. Amperes 19.6 A
- Insulation Class F
- Enclosure IC01 - ODP
- Frame 213/5T
- Service factor 1.15
- Synchronous speed 1200 rpm
- Output 3 HP (2.2 kW)
- Rated torque 13.4 ft.lb
- Duty Cycle Cont.(S1)
- Output rating 3 HP
- Slip 2.08 %
- No load current 1.83 A
- Temperature rise 80 K
- Noise level² 55.0 dB(A)
- Number of Poles 6
- Locked rotor torque 210 %
- Starting Method Direct On Line
- Voltage 575 V
- Rated voltage 575 V
- Design B
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00312OT3H213T-S Specs
1-year warranty
