00318ET3E182T-W22S WEG AC Motors
Part#:00318ET3E182T-W22S
Manufacturer:WEG
Alt. Part#:7891327163393
Product Lifecycle:Active
In-stock parts: 1
Jun 19, 2025

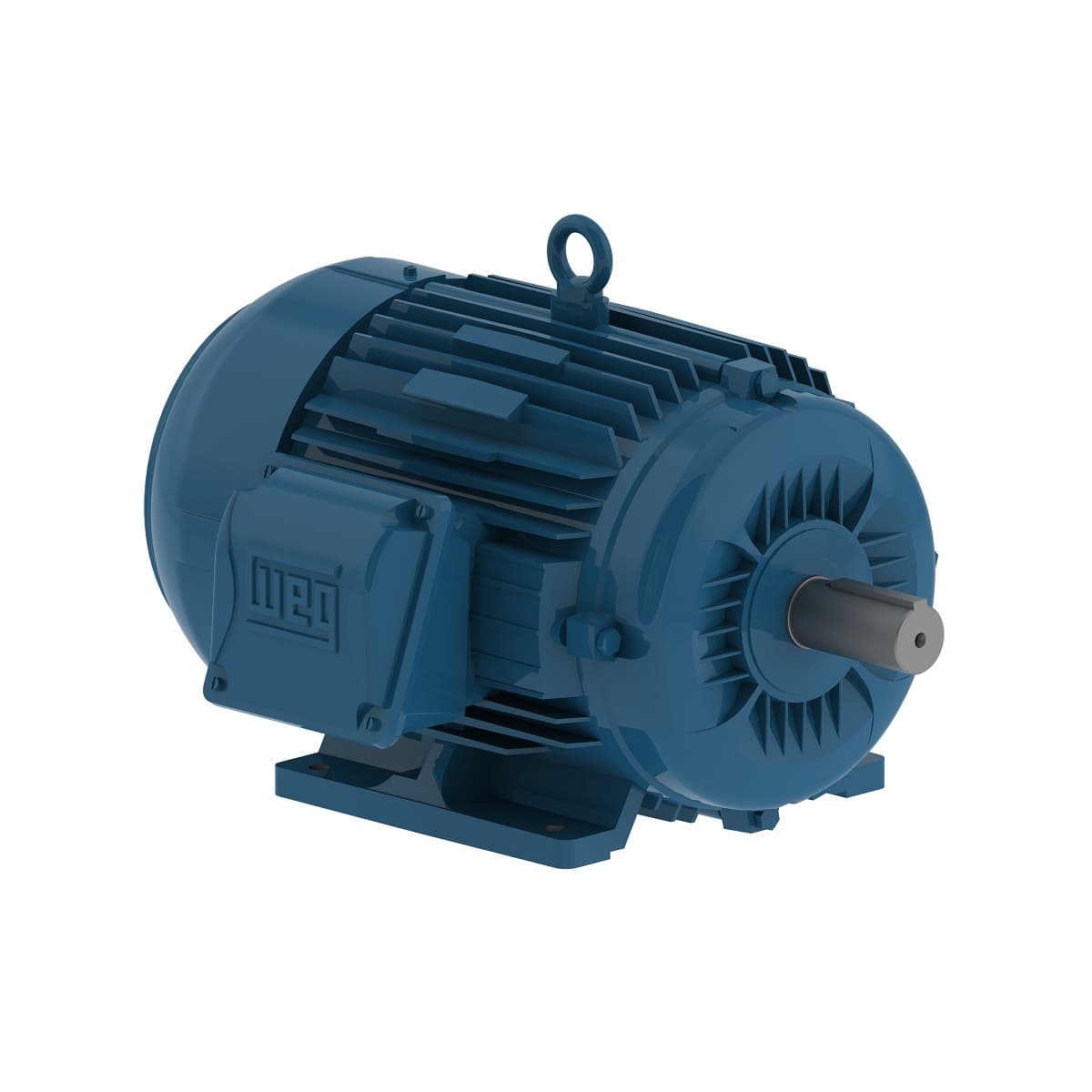

W22 NEMA Premium Efficiency 3 HP 4P 182T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00318ET3E182T-W22S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed1760 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated current 7.82/3.91 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output 3 HP (2.2 kW)
- Locked rotor torque 220 %
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Frame 182T
- LRC 8.1x(Code K)
- Temperature rise 80 K
- Standard NEMA MG-1
- Frequency 60 Hz
- Design B
- Noise level² 56.0 dB(A)
- L. R. Amperes 63.3/31.7 A
- Rated torque 8.95 ft.lb
- Service factor 1.25
- Duty Cycle Cont.(S1)
- Rated speed 1760 rpm
- Locked rotor time 41s (cold) 23s (hot)
- Synchronous speed 1800 rpm
- Mounting F-1
- Slip 2.22 %
- Approx. weight³ 87.2 lb
- Flange Without
- Rated voltage 230/460 V
- Degree of Protection IP55
- Output rating 3 HP
- Altitude 1000 m.a.s.l.
- Starting Method Direct On Line
- Terminal box¹ Left position
- Moment of inertia (J) 0.3401 sq.ft.lb
- Breakdown torque 330 %
- Number of Poles 4
- Voltage 230/460//380 V
- No load current 4.00/2.00 A
- Enclosure IC411 - TEFC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00318ET3E182T-W22S Specs
1-year warranty
