00312ET3ER213TC-W22 WEG AC Motors
Part#:00312ET3ER213TC-W22
Manufacturer:WEG
Alt. Part#:7909158843466
Product Lifecycle:Active
Get a quick Quote!

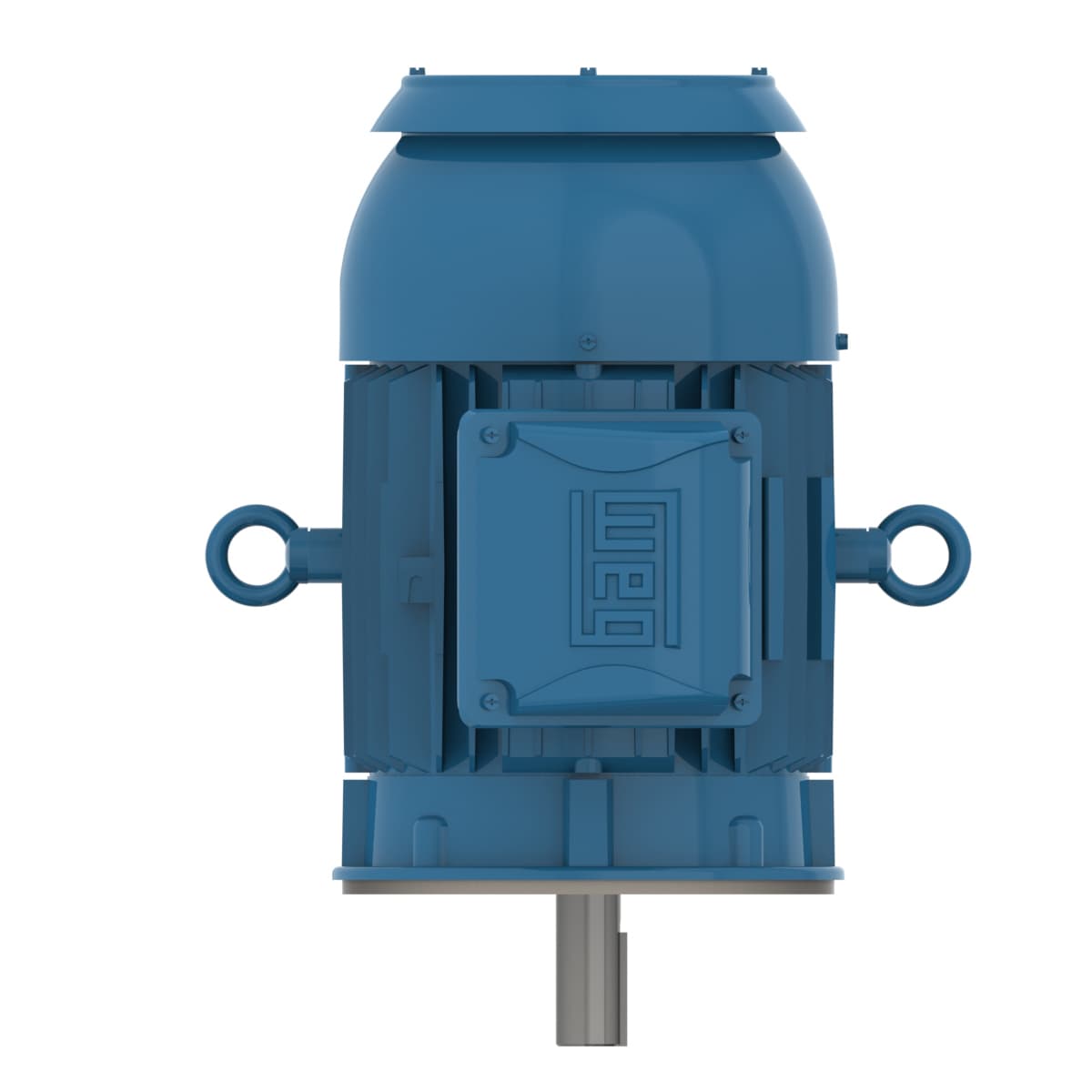

W22 NEMA Premium Efficiency 3 HP 6P 213TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 00312ET3ER213TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 2.08 %
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- LRC 7.0x(Code K)
- Insulation Class F
- Mounting W-6
- Flange C
- Rated voltage 230/460 V
- Duty Cycle Cont.(S1)
- Locked rotor torque 200 %
- Noise level² 55.0 dB(A)
- Output 3 HP (2.2 kW)
- Service factor 1.25
- Standard NEMA MG-1
- L. R. Amperes 61.8/30.9 A
- Rated torque 13.4 ft.lb
- Starting Method Direct On Line
- Output rating 3 HP
- Frame 213TC
- No load current 5.50/2.75 A
- Enclosure IC411 - TEFC
- Number of poles 6
- Number of Poles 6
- Moment of inertia (J) 1.20 sq.ft.lb
- Degree of Protection IP55
- Terminal box¹ Left position
- Rated current 8.83/4.41 A
- Breakdown torque 280 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Frequency 60 Hz
- Design B
- Approx. weight³ 152 lb
- Rated speed 1175 rpm
- Locked rotor time 104s (cold) 58s (hot)
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
