00312ET3EPM213/5Y-W2 WEG AC Motors
Part#:00312ET3EPM213/5Y-W2
Manufacturer:WEG
Alt. Part#:7909322545356
Product Lifecycle:Active
Get a quick Quote!

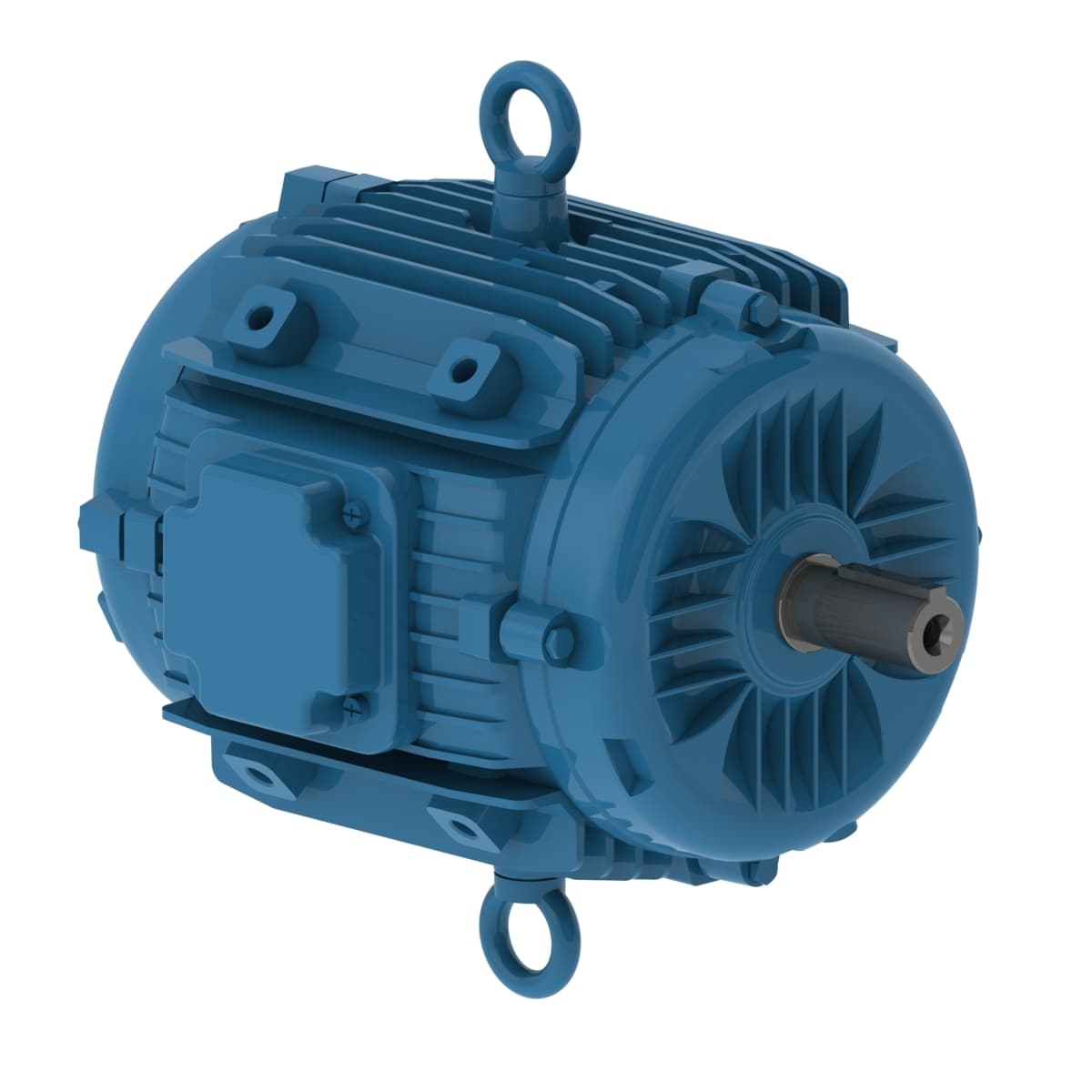

W22 NEMA Premium Efficiency 3 HP 6P 215YZ 3Ph 208-230/460 V 60 Hz IC418 - TEAO - Pad mounted
Check out the 00312ET3EPM213/5Y-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Rated current 9.75-8.81/4.41 A
- Design B
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Frame 215YZ
- Insulation Class F
- Mounting F-1
- Output rating 3 HP
- Rated speed 1175 rpm
- Service factor 1.25
- Approx. weight³ 150 lb
- Frequency 60 Hz
- Rated torque 13.4 ft.lb
- Duty Cycle Cont.(S1)
- Slip 2.08 %
- Moment of inertia (J) 1.20 sq.ft.lb
- Synchronous speed 1200 rpm
- L. R. Amperes 68.2-61.7/30.9 A
- Breakdown torque 280 %
- Starting Method Direct On Line
- Terminal box¹ Left position
- Number of Poles 6
- Locked rotor torque 200 %
- Enclosure IC418 - TEAO
- Voltage 208-230/460 V
- Rated voltage 208-230/460 V
- No load current 0.000-5.50/2.75 A
- Degree of Protection IP55
- Output 3 HP (2.2 kW)
- Locked rotor time 104s (cold) 58s (hot)
- Altitude 1000 m.a.s.l.
- Flange Without
- LRC 7.0x(Code K)
- Temperature rise 80 K
- Standard NEMA MG-1
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00312ET3EPM213/5Y-W2 Specs
