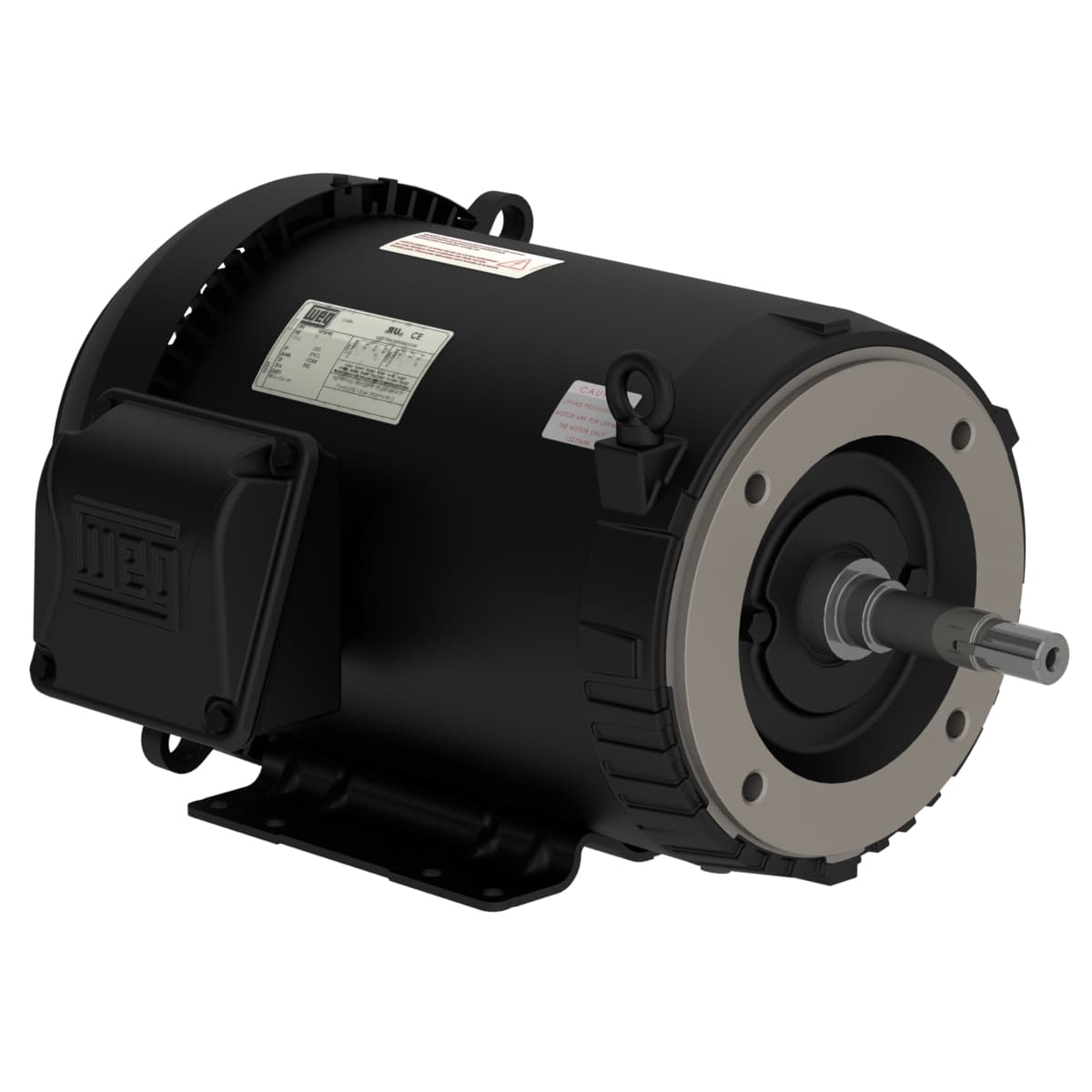

00312ET3E213JM-S WEG AC Motors
Part#:00312ET3E213JM-S
Manufacturer:WEG
Alt. Part#:7894171362530
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel JM Pump NEMA Premium Efficiency 3 HP 6P 213/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00312ET3E213JM-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeC
- Rated voltage 230/460 V
- Breakdown torque 290 %
- Rotation¹ Both (CW and CCW)
- Output 3 HP (2.2 kW)
- No load current 4.71/2.36 A
- Starting Method Direct On Line
- Noise level² 55.0 dB(A)
- L. R. Amperes 53.4/26.7 A
- Moment of inertia (J) 1.08 sq.ft.lb
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Rated speed 1175 rpm
- Rated torque 13.4 ft.lb
- Degree of Protection IP55
- Number of poles 6
- Slip 2.08 %
- Service factor 1.15
- Mounting F-1
- Frame 213/5JM
- Locked rotor torque 229 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Number of Poles 6
- Insulation Class F
- Approx. weight³ 138 lb
- Output rating 3 HP
- LRC 6.4x(Code H)
- Temperature rise 80 K
- Standard NEMA MG-1
- Frequency 60 Hz
- Design B
- Duty Cycle Cont.(S1)
- Flange C
- Rated current 8.34/4.17 A
- Locked rotor time 82s (cold) 46s (hot)
- Altitude 1000 m.a.s.l.
- Voltage 230/460//190-220/380-415 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00312ET3E213JM-S Specs
