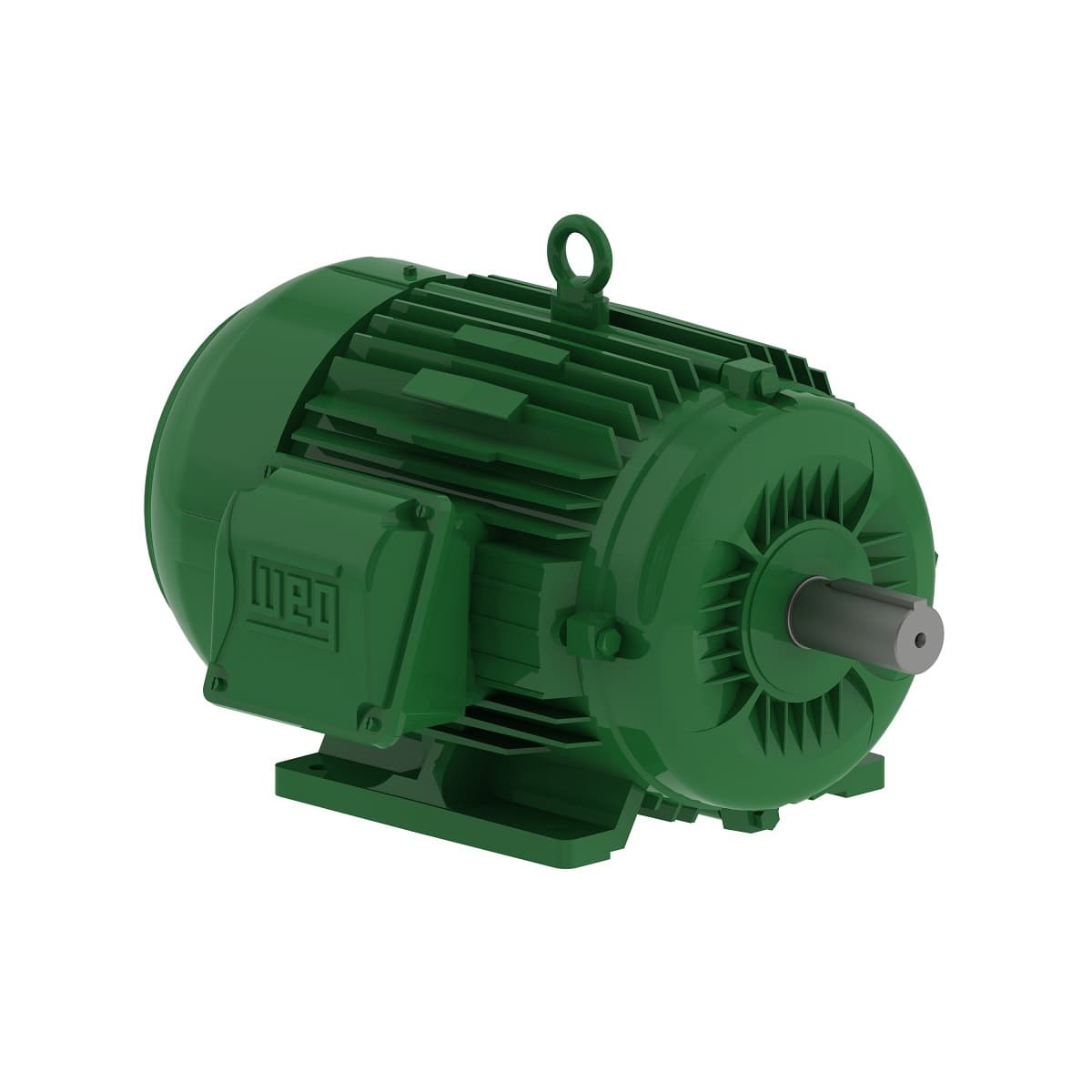

00312EG3E213T-W22 WEG AC Motors
Part#:00312EG3E213T-W22
Manufacturer:WEG
Alt. Part#:7909158777778
Product Lifecycle:Active
Get a quick Quote!
W22 Super Premium Efficiency 3 HP 6P 213/5T 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00312EG3E213T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Number of Poles 6
- Moment of inertia (J) 1.53 sq.ft.lb
- Duty Cycle Cont.(S1)
- Voltage 208-230/460//380 V
- Frequency 60 Hz
- Temperature rise 80 K
- Synchronous speed 1200 rpm
- Rated current 8.62/4.31 A
- Rated torque 13.4 ft.lb
- Noise level² 55.0 dB(A)
- Rated speed 1175 rpm
- Locked rotor time 162s (cold) 90s (hot)
- Starting Method Direct On Line
- Standard NEMA MG-1
- L. R. Amperes 62.1/31.0 A
- Service factor 1.25
- Approx. weight³ 179 lb
- Output 3 HP (2.2 kW)
- Enclosure IC411 - TEFC
- Ambient temperature -20°C to +40°C
- Output rating 3 HP
- Slip 2.08 %
- Locked rotor torque 180 %
- Degree of Protection IP55
- Number of poles 6
- No load current 5.13/2.56 A
- Design A
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Frame 213/5T
- Breakdown torque 290 %
- LRC 7.2x(Code K)
- Mounting F-1
- Rated voltage 230/460 V
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
