00236ET3WAL90LFF-W22 WEG AC Motors
Part#:00236ET3WAL90LFF-W22
Manufacturer:WEG
Alt. Part#:7909323283073
Product Lifecycle:Active
Get a quick Quote!

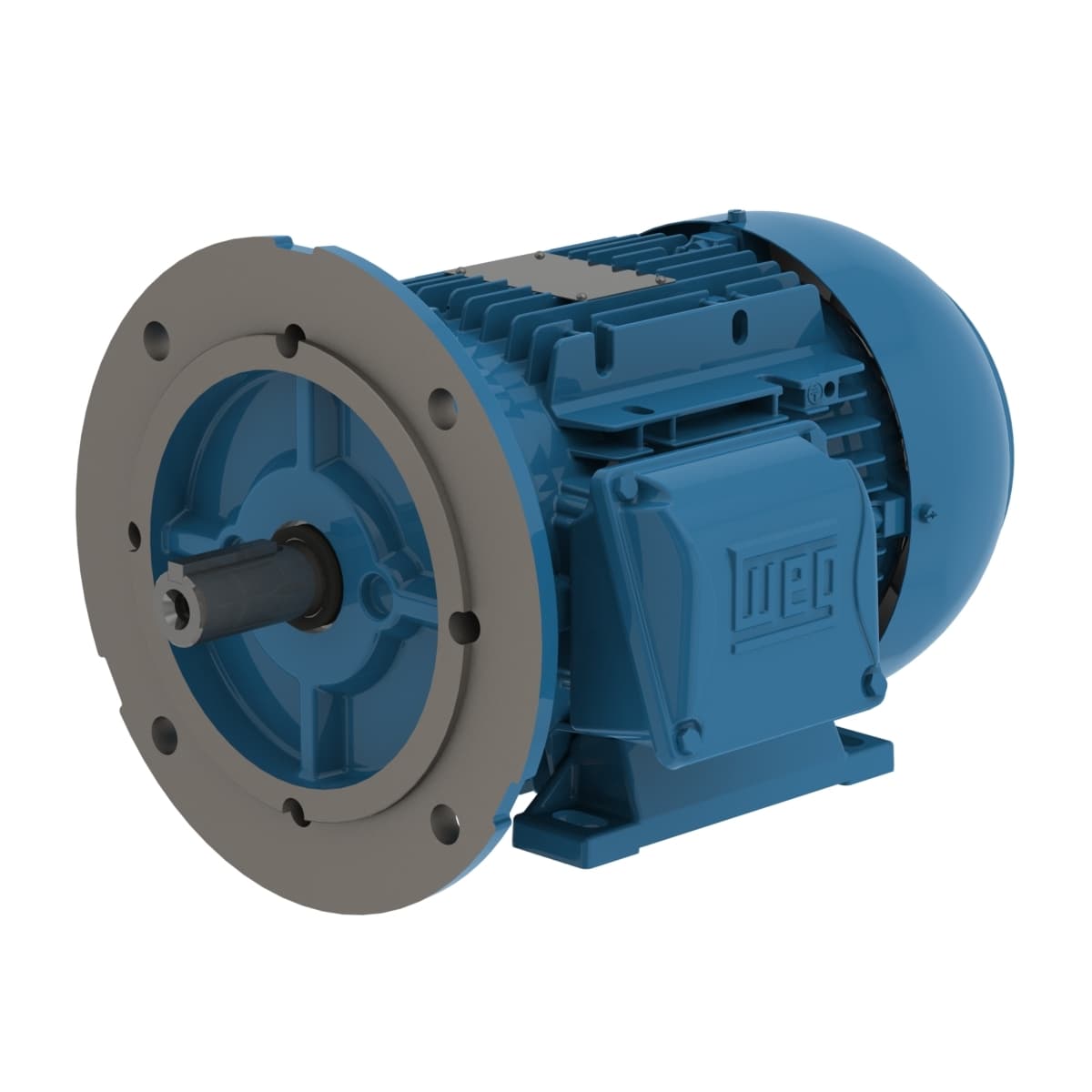

Multimounting IE3 3 HP 2P 90S/L 3Ph 460//220-240/380-415 V 60 Hz IC411 - TEFC - B35L(E)
Check out the 00236ET3WAL90LFF-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed2840 rpm
- Number of Poles2 Pole
- Voltage220/380 V
- Flange TypeFF
- Slip 5.33 %
- Insulation Class F
- Standard NEMA MG-1
- Rated speed 2840 rpm
- Locked rotor time 21s (cold) 12s (hot)
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- L. R. Amperes 55.4/32.1 A
- Rated torque 5.55 ft.lb
- Moment of inertia (J) 0.0617 sq.ft.lb
- Noise level² 62.0 dB(A)
- Output rating 3 HP
- Rated voltage 220/380 V
- Duty Cycle S1
- Approx. weight³ 48.5 lb
- Number of Poles 2
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output 3 HP (2.2 kW)
- Breakdown torque 310 %
- Design N
- Number of poles 2
- Frequency 50 Hz
- No load current 2.85/1.65 A
- Ambient temperature -20°C to +40°C
- Mounting B35L(E)
- LRC 7.1
- Starting Method Direct On Line
- Voltage 460//220-240/380-415 V
- Rated current 7.81/4.52 A
- Locked rotor torque 300 %
- Enclosure IC411 - TEFC
- Flange FF
- Terminal box¹ Right position
- Frame 90S/L
- Altitude 1000 m.a.s.l.
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
