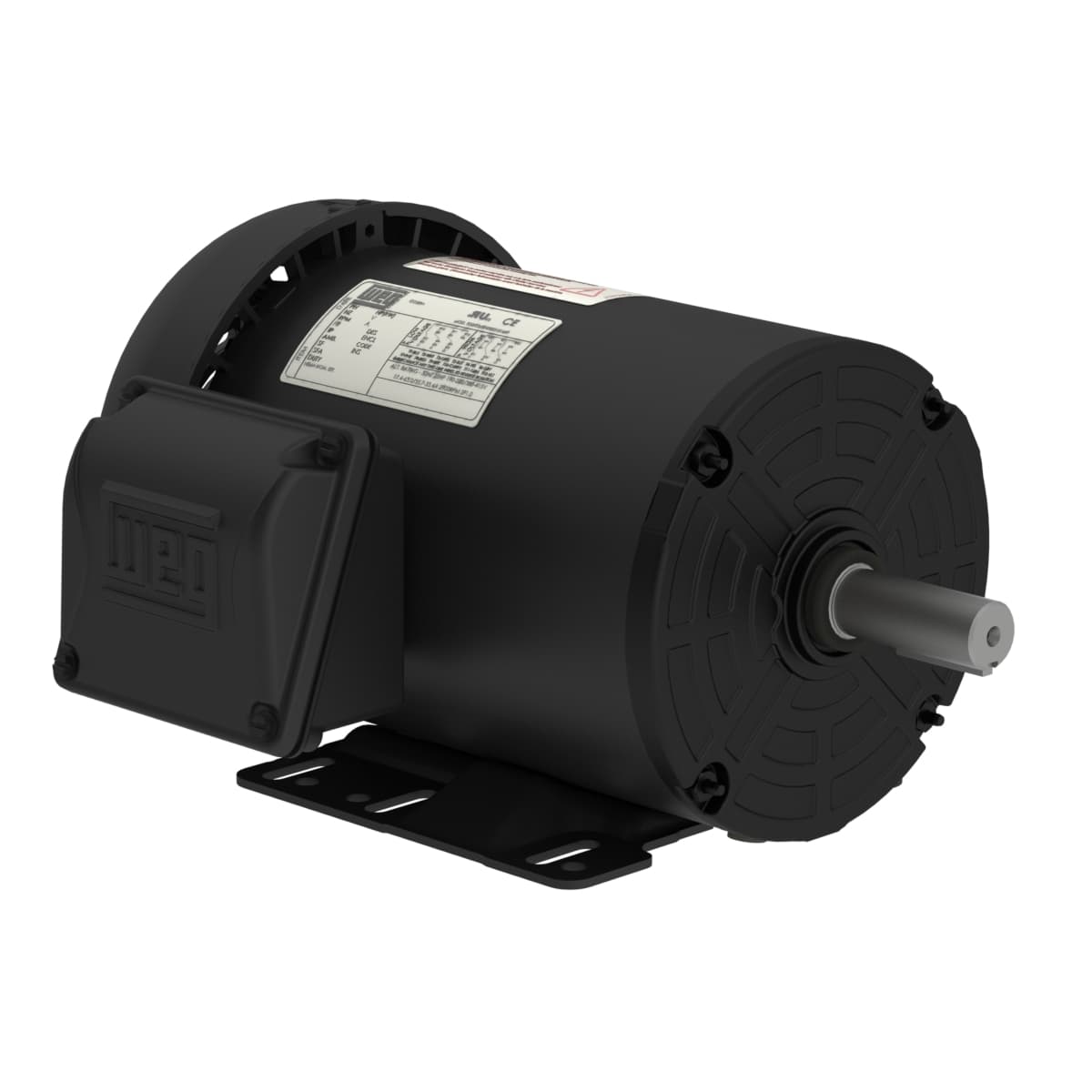

00236ET3H145T-SG WEG AC Motors
Part#:00236ET3H145T-SG
Manufacturer:WEG
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel NEMA Premium Efficiency 2 HP 2P 143/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00236ET3H145T-SG WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed3520 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Frequency 60 Hz
- Locked rotor time 23s (cold) 13s (hot)
- Altitude 1000 m.a.s.l.
- Output 2 HP (1.5 kW)
- Breakdown torque 300 %
- LRC 9.9x(Code L)
- Number of Poles 2
- Frame 143/5T
- Rated current 1.98 A
- Slip 2.22 %
- L. R. Amperes 19.6 A
- Moment of inertia (J) 0.1279 sq.ft.lb
- Duty Cycle Cont.(S1)
- Design B
- Degree of Protection IP55
- Terminal box¹ Left position
- Rated voltage 575 V
- No load current 0.850 A
- Mounting F-1
- Standard NEMA MG-1
- Insulation Class F
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
- Output rating 2 HP
- Rated speed 3520 rpm
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- Rated torque 2.98 ft.lb
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Service factor 1.15
- Number of poles 2
- Locked rotor torque 250 %
- Starting Method Direct On Line
- Noise level² 68.0 dB(A)
- Approx. weight³ 2.2 lb
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
