00218ES1RFD182T-W22 WEG AC Motors
Part#:00218ES1RFD182T-W22
Manufacturer:WEG
Alt. Part#:7909492753544
Product Lifecycle:Active
Get a quick Quote!

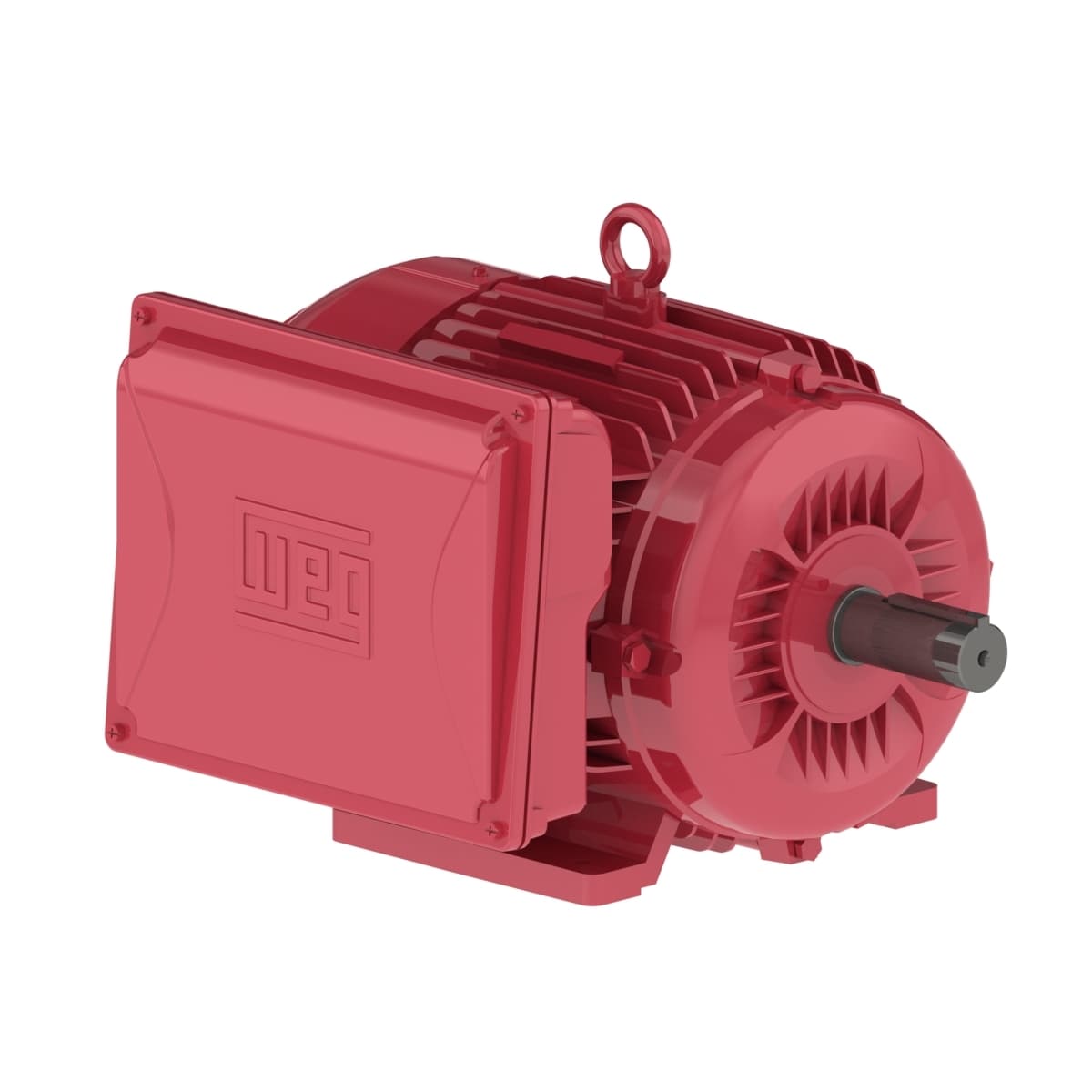

W22 2 HP 4P 182/4T 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00218ES1RFD182T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed1740 rpm
- Number of Poles4 Pole
- Voltage115/230 V
- Flange TypeWithout
- Rated current 16.8/8.40 A
- LRC 7.4x(Code J)
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated voltage 115/230 V
- Breakdown torque 229 %
- Degree of Protection IP55
- Flange Without
- L. R. Amperes 124/62.2 A
- Rated torque 6.04 ft.lb
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Number of Poles 4
- Duty Cycle Cont.(S1)
- Approx. weight³ 97.2 lb
- Frame 182/4T
- Locked rotor torque 290 %
- Altitude 1000 m.a.s.l.
- Voltage 115/230 V
- Frequency 60 Hz
- Service factor 1.15
- Noise level² 60.0 dB(A)
- No load current 4.50/2.25 A
- Starting Method Direct On Line
- Number of poles 4
- Slip 3.33 %
- Locked rotor time 14s (cold) 8s (hot)
- Ambient temperature -20°C to +40°C
- Output rating 2 HP
- Rated speed 1740 rpm
- Moment of inertia (J) 0.2957 sq.ft.lb
- Mounting F-1
- Output 2 HP (1.5 kW)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
