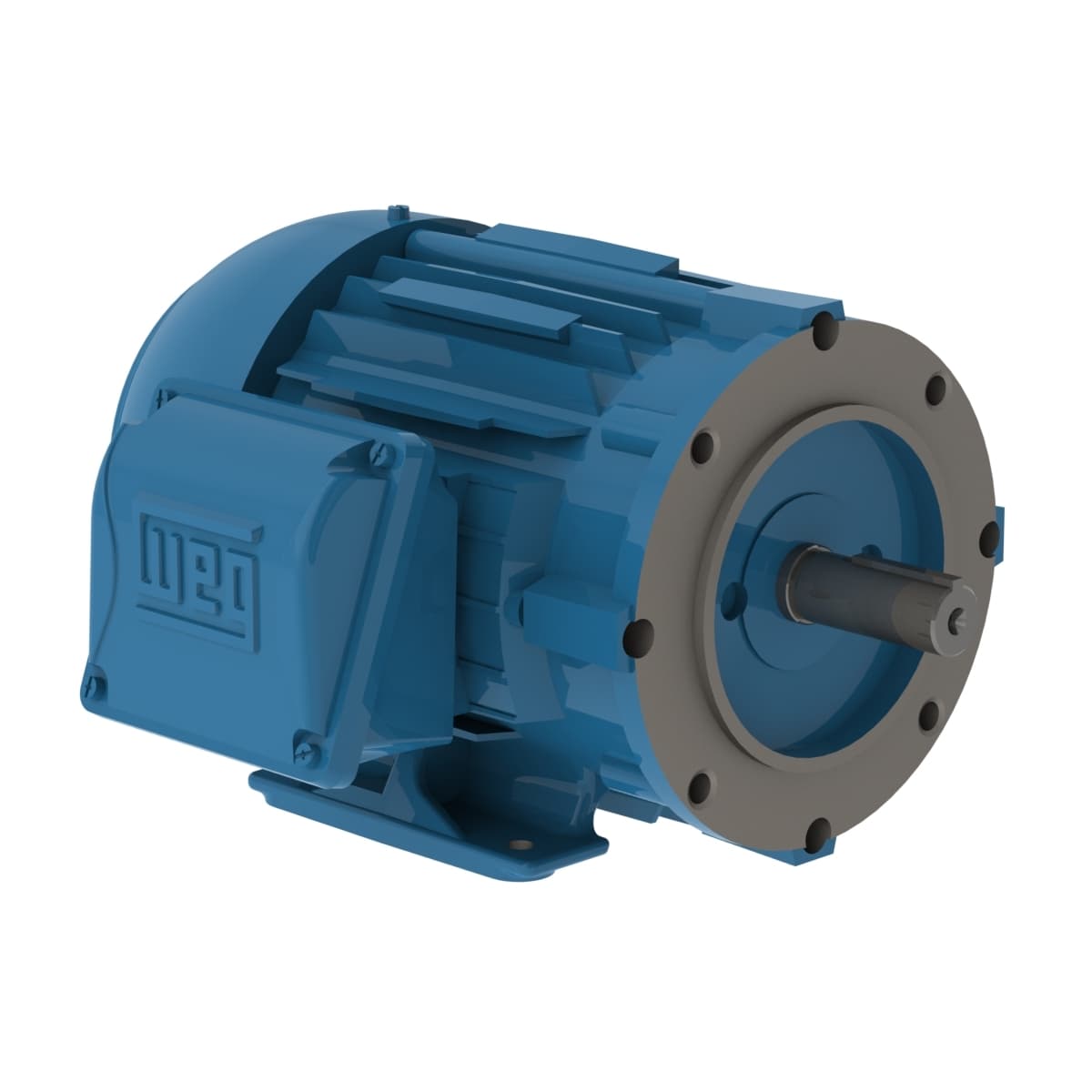

00218ET3E145TC-W22 WEG AC Motors
Part#:00218ET3E145TC-W22
Manufacturer:WEG
Alt. Part#:7891327535640
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 2 HP 4P 143/5TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00218ET3E145TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed1750 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 2.78 %
- Rated torque 6.00 ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 2 HP
- Frequency 60 Hz
- Rated speed 1750 rpm
- Moment of inertia (J) 0.1561 sq.ft.lb
- Locked rotor time 18s (cold) 10s (hot)
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Voltage 230/460//380 V
- Terminal box¹ Left position
- Rated current 5.58/2.79 A
- Breakdown torque 320 %
- Rotation¹ Both (CW and CCW)
- Flange C
- Rated voltage 230/460 V
- Insulation Class F
- Degree of Protection IP55
- Noise level² 51.0 dB(A)
- Number of Poles 4
- L. R. Amperes 46.3/23.2 A
- No load current 3.26/1.63 A
- Design B
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Number of poles 4
- Output 2 HP (1.5 kW)
- LRC 8.3x(Code L)
- Service factor 1.25
- Duty Cycle Cont.(S1)
- Mounting F-1
- Synchronous speed 1800 rpm
- Approx. weight³ 52.3 lb
- Frame 143/5TC
- Locked rotor torque 270 %
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00218ET3E145TC-W22 Specs
1-year warranty
