00218ES1E145JM-W22 WEG AC Motors
Part#:00218ES1E145JM-W22
Manufacturer:WEG
Alt. Part#:7909323523827
Product Lifecycle:Active
Get a quick Quote!

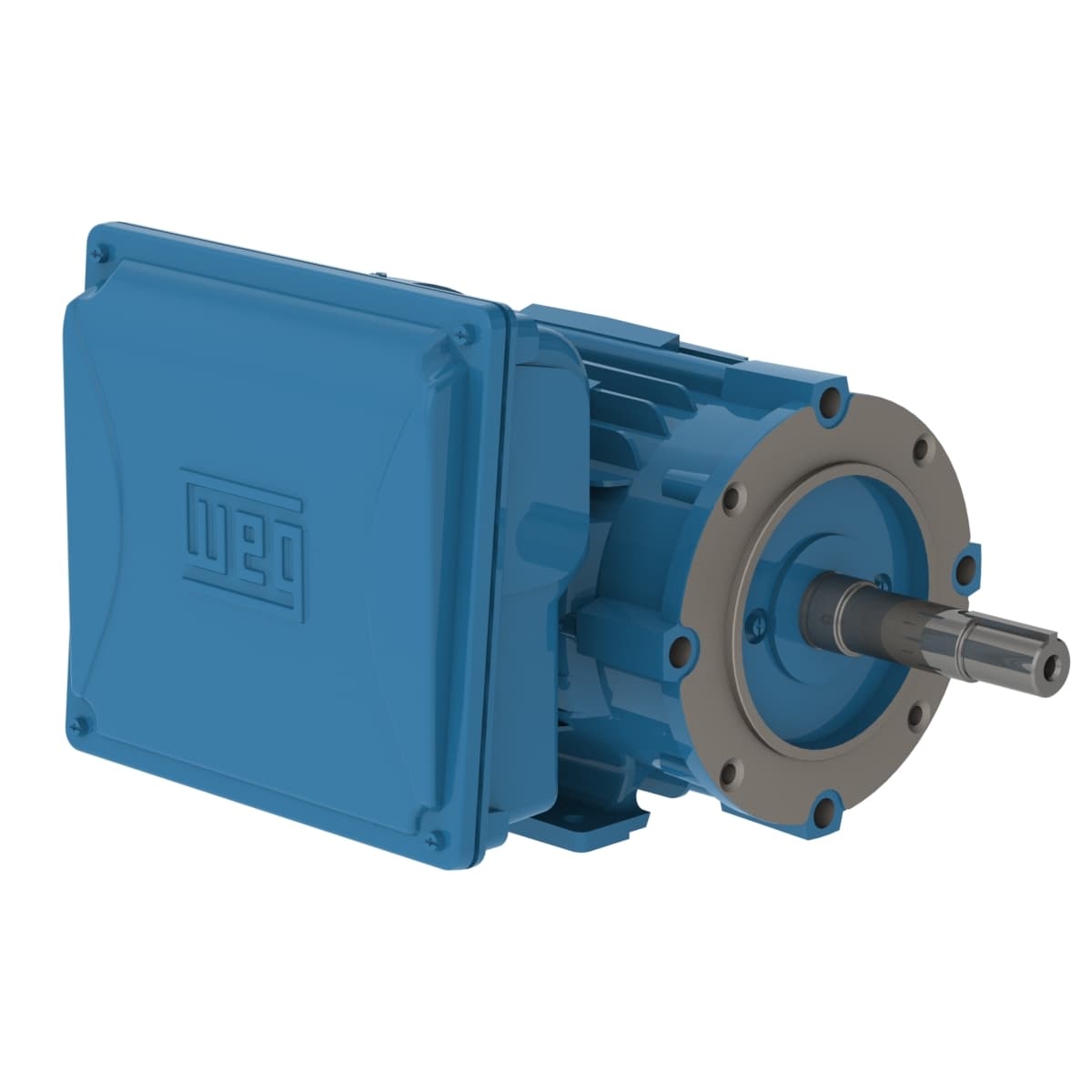

W22 JM Pump 2 HP 4P 143/5JM 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00218ES1E145JM-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed1745 rpm
- Number of Poles4 Pole
- Voltage208-230/460 V
- Flange TypeC
- Rated voltage 208-230/460 V
- Rated torque 6.02 ft.lb
- Noise level² 58.0 dB(A)
- Output 2 HP (1.5 kW)
- Locked rotor torque 270 %
- Altitude 1000 m.a.s.l.
- Rated current 9.50-9.12/4.56 A
- Locked rotor time 14s (cold) 8s (hot)
- Degree of Protection IP55
- Frequency 60 Hz
- Temperature rise 80 K
- Mounting F-1
- Number of Poles 4
- No load current 3.62-4.20/2.10 A
- Starting Method Direct On Line
- Approx. weight³ 69.4 lb
- Terminal box¹ Left position
- Rated speed 1745 rpm
- Ambient temperature -20°C to +40°C
- Number of poles 4
- L. R. Amperes 70.3-67.5/33.7 A
- Service factor 1.15 (1.00 @ 208V)
- Rotation¹ Both (CW and CCW)
- Frame 143/5JM
- Moment of inertia (J) 0.1497 sq.ft.lb
- Enclosure IC411 - TEFC
- Output rating 2 HP
- LRC 7.4x(Code J)
- Insulation Class F
- Standard NEMA MG-1
- Flange C
- Slip 3.06 %
- Breakdown torque 240 %
- Duty Cycle Cont.(S1)
- Voltage 208-230/460 V
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00218ES1E145JM-W22 Specs
1-year warranty
