00218AT3PCT145TF1-W2 WEG AC Motors
Part#:00218AT3PCT145TF1-W2
Manufacturer:WEG
Alt. Part#:7909492076667
Product Lifecycle:Active
Get a quick Quote!

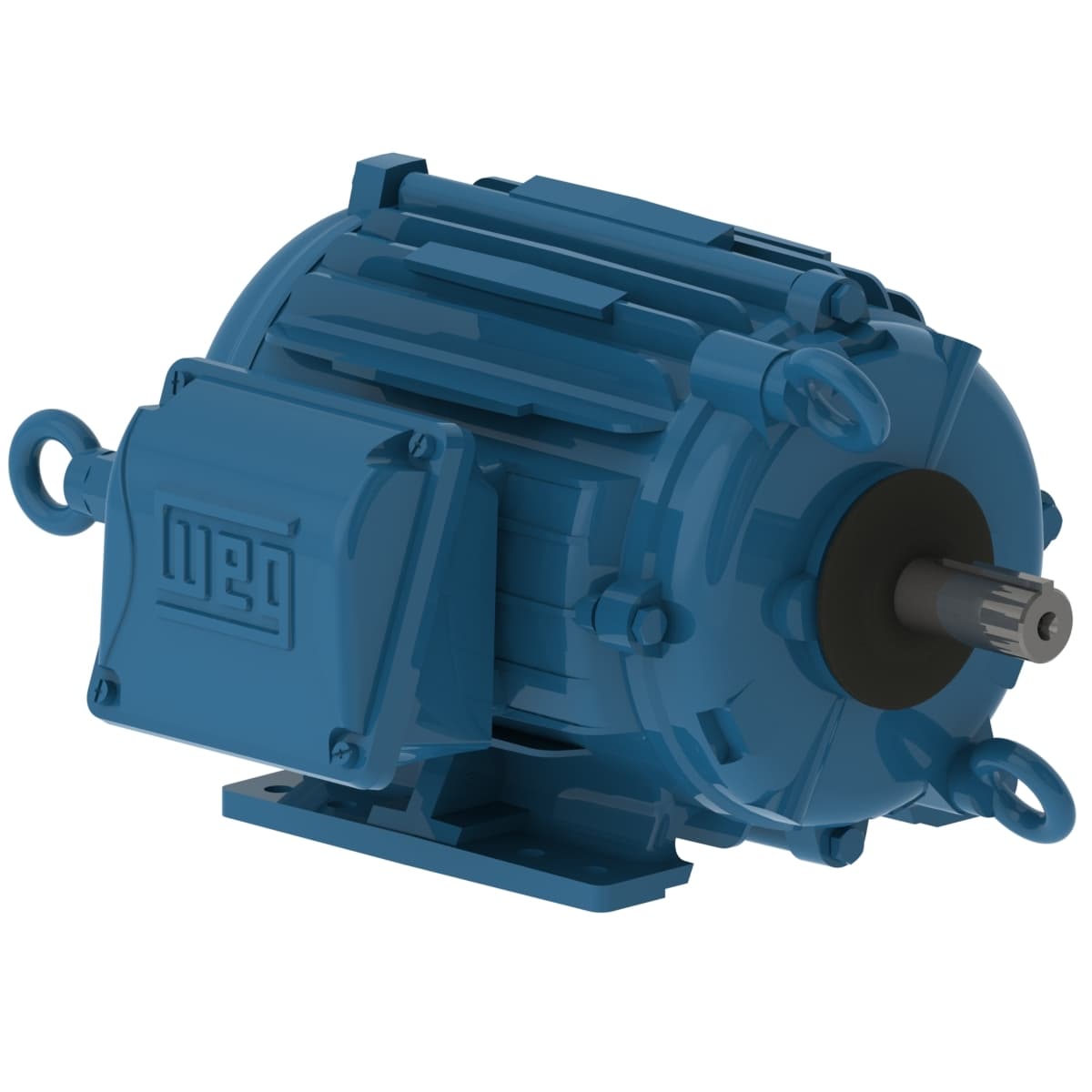

W22 Cooling Tower NEMA Premium Efficiency 2 HP 4P 143/5T 3Ph 200 V 60 Hz IC418 - TEAO - Foot-mounted
Check out the 00218AT3PCT145TF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed1750 rpm
- Number of Poles4 Pole
- Voltage200 V
- Flange TypeWithout
- Temperature rise 80 K
- Mounting F-1
- Rated current 6.42 A
- Terminal box¹ Left position
- Locked rotor torque 270 %
- Degree of Protection IP55
- Enclosure IC418 - TEAO
- LRC 8.3x(Code L)
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Output 2 HP (1.5 kW)
- Rated torque 6.00 ft.lb
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Approx. weight³ 53.4 lb
- Number of Poles 4
- Duty Cycle Cont.(S1)
- Flange Without
- L. R. Amperes 53.3 A
- Rated voltage 200 V
- Moment of inertia (J) 0.1561 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Rated speed 1750 rpm
- No load current 3.75 A
- Locked rotor time 18s (cold) 10s (hot)
- Output rating 2 HP
- Frame 143/5T
- Design B
- Service factor 1.25
- Standard NEMA MG-1
- Slip 2.78 %
- Breakdown torque 320 %
- Noise level² 51.0 dB(A)
- Voltage 200 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00218AT3PCT145TF1-W2 Specs
