00212ET3E184T-W22 WEG AC Motors
Part#:00212ET3E184T-W22
Manufacturer:WEG
Alt. Part#:7891327160316
Product Lifecycle:Active
Get a quick Quote!

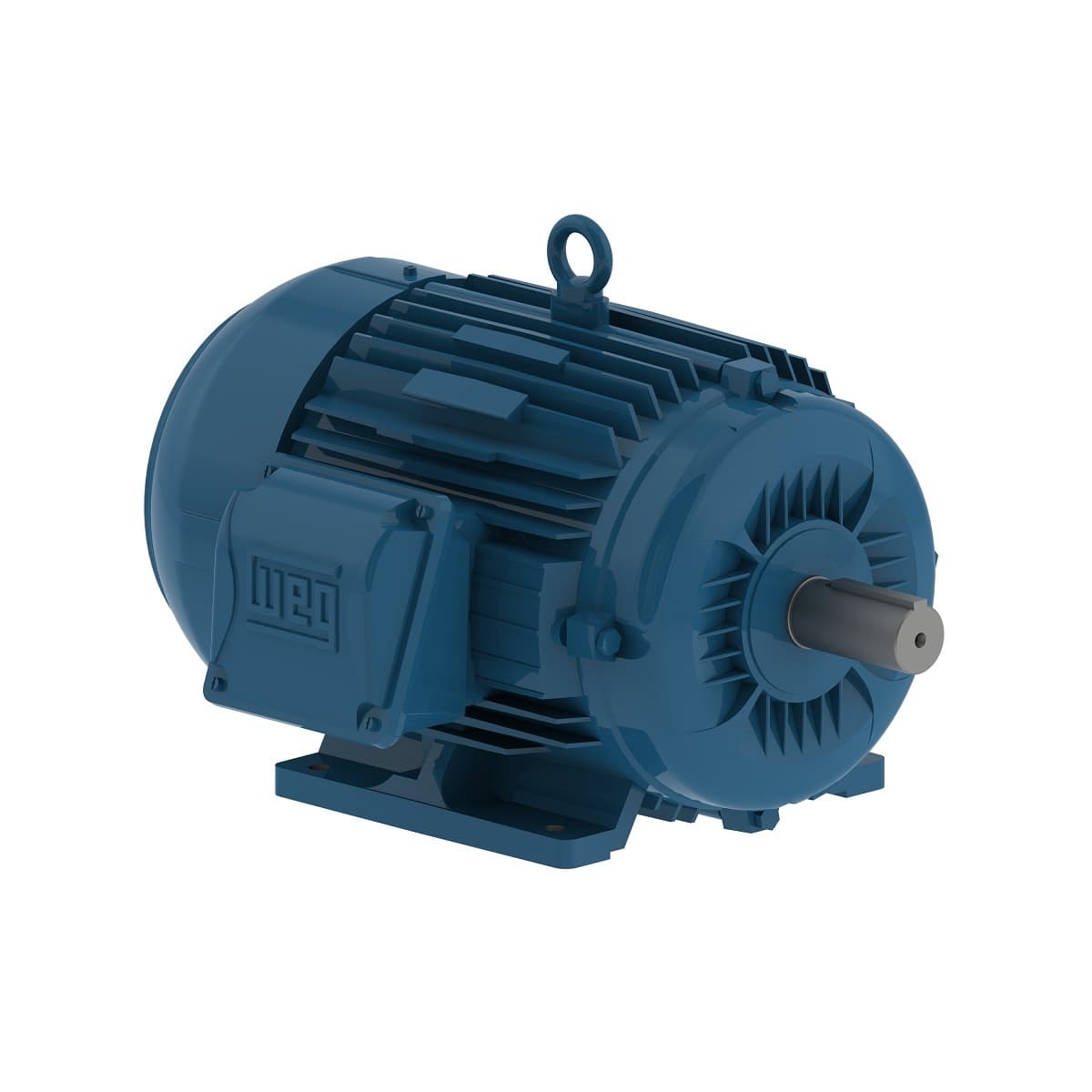

W22 NEMA Premium Efficiency 2 HP 6P 182/4T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00212ET3E184T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed1170 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated speed 1170 rpm
- Breakdown torque 350 %
- Starting Method Direct On Line
- Approx. weight³ 97.7 lb
- Frequency 60 Hz
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Rated voltage 230/460 V
- Locked rotor torque 300 %
- Degree of Protection IP55
- Voltage 230/460//380 V
- Slip 2.50 %
- Moment of inertia (J) 0.6210 sq.ft.lb
- Duty Cycle Cont.(S1)
- Noise level² 52.0 dB(A)
- Number of Poles 6
- Design B
- Enclosure IC411 - TEFC
- Output rating 2 HP
- L. R. Amperes 48.3/24.2 A
- Rated torque 8.98 ft.lb
- Mounting F-1
- Flange Without
- Frame 182/4T
- No load current 3.80/1.90 A
- Altitude 1000 m.a.s.l.
- Synchronous speed 1200 rpm
- Terminal box¹ Left position
- Output 2 HP (1.5 kW)
- Temperature rise 80 K
- Locked rotor time 55s (cold) 31s (hot)
- Number of poles 6
- Rated current 6.44/3.22 A
- Standard NEMA MG-1
- LRC 7.5x(Code L)
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00212ET3E184T-W22 Specs
