00212ET3E184T-SG WEG AC Motors
Part#:00212ET3E184T-SG
Manufacturer:WEG
Alt. Part#:7909158711949
Product Lifecycle:Active
Get a quick Quote!

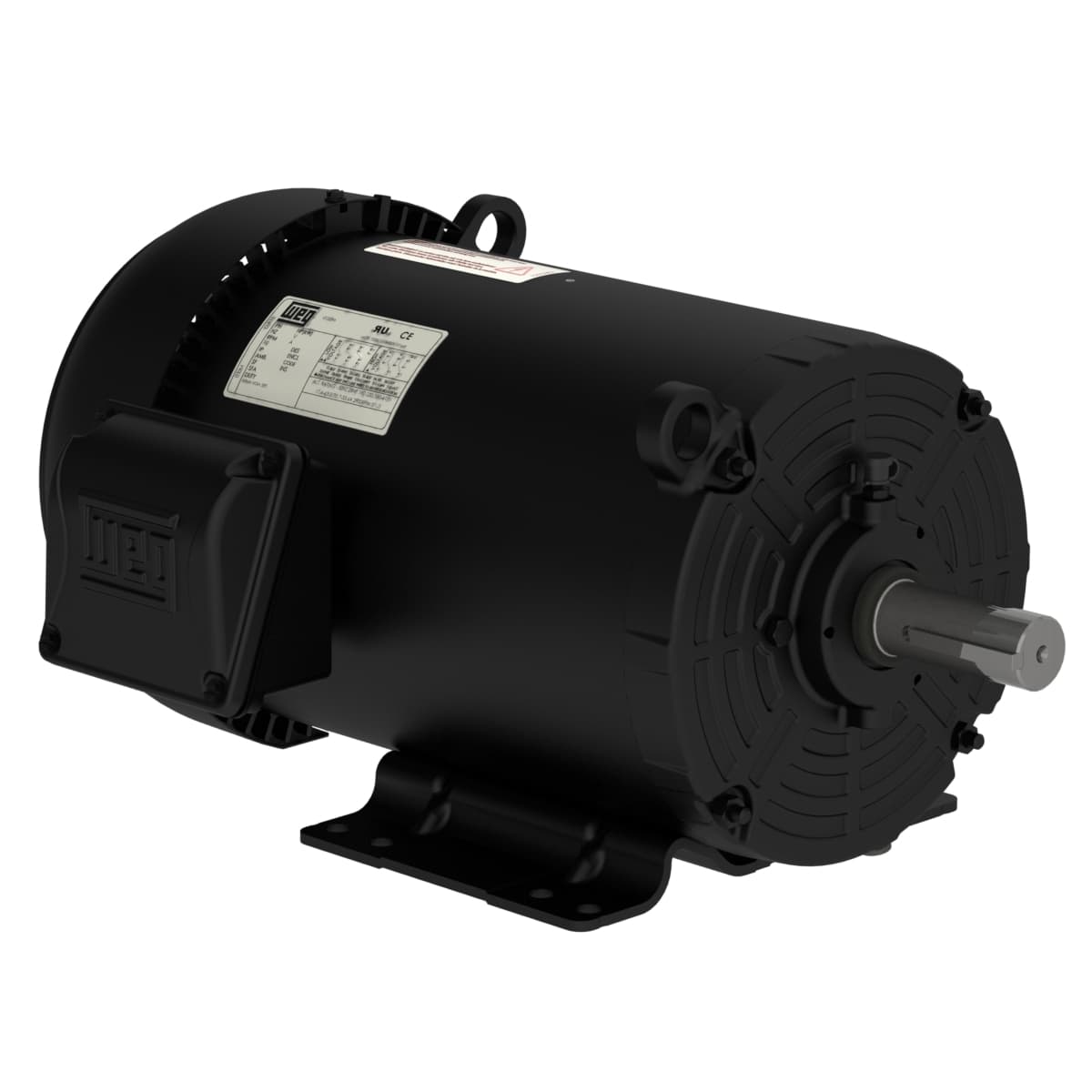

Rolled Steel NEMA Premium Efficiency 2 HP 6P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00212ET3E184T-SG WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed1170 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Breakdown torque 370 %
- Rated voltage 230/460 V
- Ambient temperature -20°C to +40°C
- LRC 7.5x(Code K)
- Temperature rise 80 K
- Mounting F-1
- Flange Without
- Rated current 6.00/3.00 A
- Locked rotor torque 260 %
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Number of Poles 6
- Design B
- Starting Method Direct On Line
- Standard NEMA MG-1
- Slip 2.50 %
- Locked rotor time 79s (cold) 44s (hot)
- Degree of Protection IP55
- Number of poles 6
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- Insulation Class F
- Output rating 2 HP
- Frame 182/4T
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Output 2 HP (1.5 kW)
- Moment of inertia (J) 0.3424 sq.ft.lb
- Noise level² 52.0 dB(A)
- L. R. Amperes 45.0/22.5 A
- No load current 3.74/1.87 A
- Approx. weight³ 79.4 lb
- Rated speed 1170 rpm
- Rated torque 8.98 ft.lb
- Voltage 230/460//190-220/380-415 V
- Altitude 1000 m.a.s.l.
- Synchronous speed 1200 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00212ET3E184T-SG Specs
