00118OT3ECD143T-S WEG AC Motors
Part#:00118OT3ECD143T-S
Manufacturer:WEG
Alt. Part#:7909158601660
Product Lifecycle:Active
Get a quick Quote!

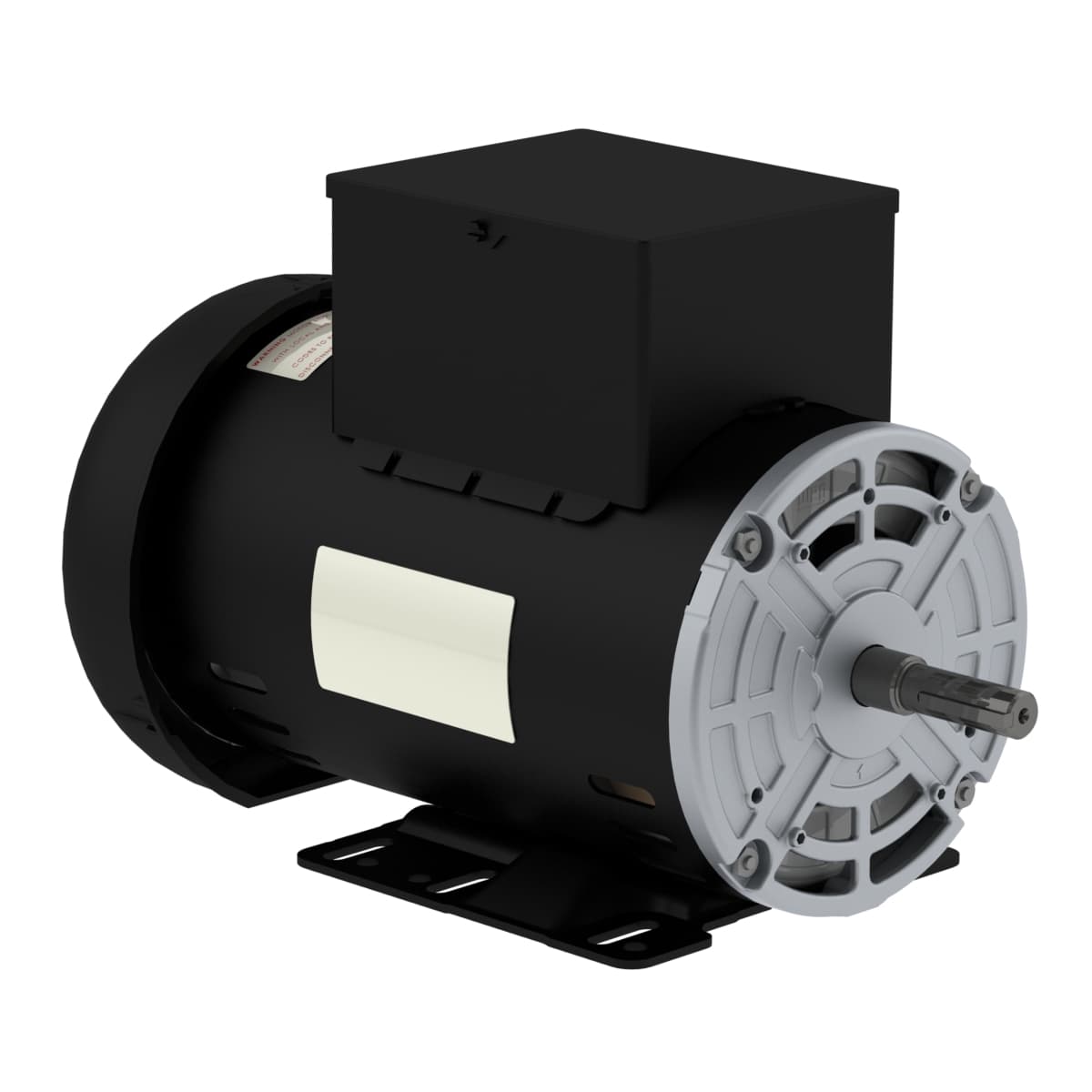

Rolled Steel NEMA Premium Efficiency 1 HP 4P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00118OT3ECD143T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed1760 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated torque 2.98 ft.lb
- Enclosure IC01 - ODP
- Frame 143/5T
- Service factor 1.15 (1.00 @ 208V)
- Output rating 1 HP
- Rated voltage 230/460 V
- Duty Cycle Cont.(S1)
- Number of poles 4
- L. R. Amperes 24.2/12.1 A
- Number of Poles 4
- Design B
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- No load current 1.92/0.958 A
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Rated current 3.02/1.51 A
- Breakdown torque 360 %
- Approx. weight³ 34.9 lb
- Terminal box¹ Left position
- Slip 2.22 %
- Locked rotor time 39s (cold) 22s (hot)
- Ambient temperature -20°C to +40°C
- Flange Without
- Rated speed 1760 rpm
- Moment of inertia (J) 0.1101 sq.ft.lb
- Noise level² 52.0 dB(A)
- Output 1 HP (0.75 kW)
- Locked rotor torque 290 %
- Insulation Class F
- Standard NEMA MG-1
- Voltage 230/460//190-220/380-415 V
- LRC 8.0x(Code L)
- Temperature rise 80 K
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
