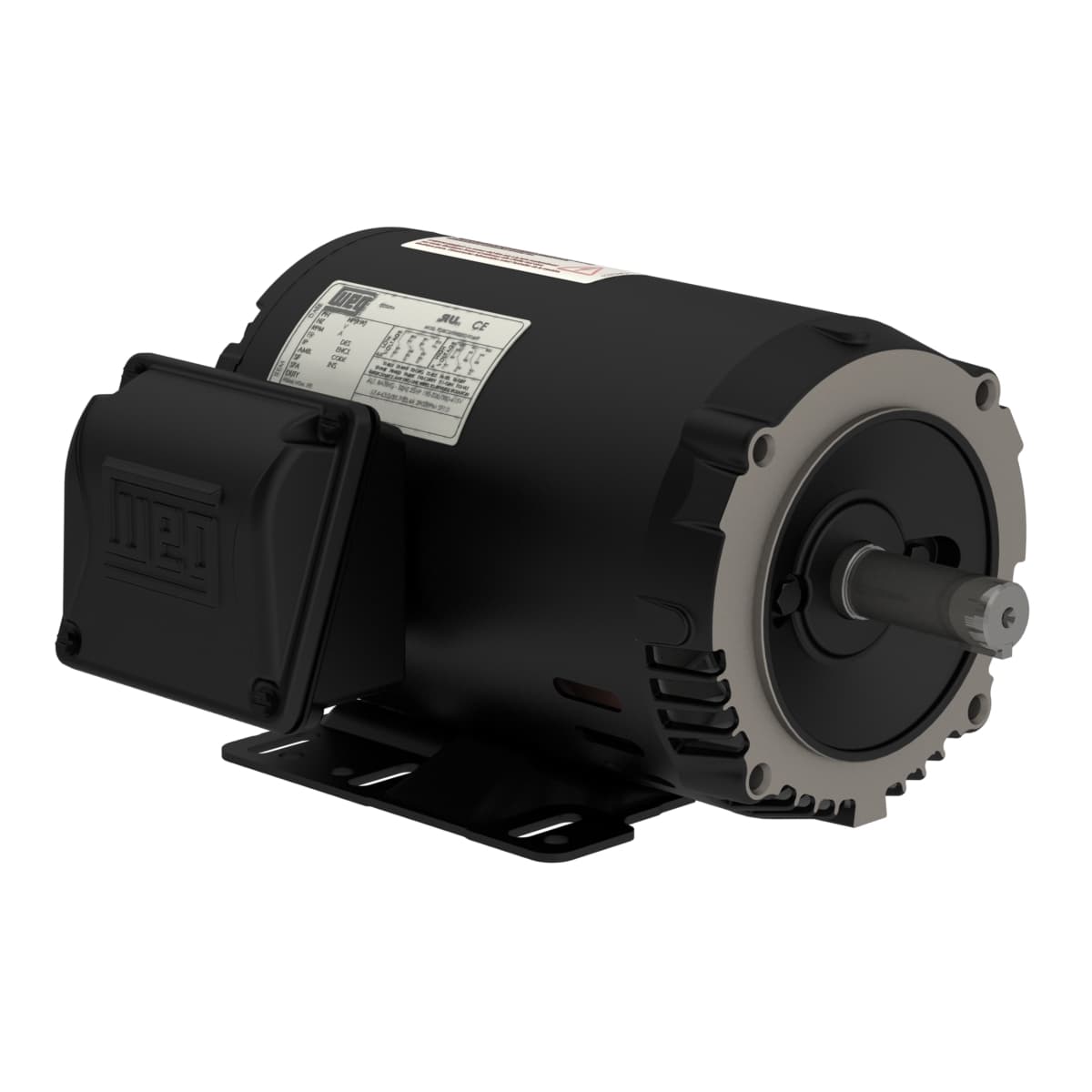

00118OT3P143TC-S WEG AC Motors
Part#:00118OT3P143TC-S
Manufacturer:WEG
Alt. Part#:7909322092508
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel NEMA Premium Efficiency 1 HP 4P 143/5TC 3Ph 200 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00118OT3P143TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed1760 rpm
- Number of Poles4 Pole
- Voltage200 V
- Flange TypeC
- Frame 143/5TC
- Moment of inertia (J) 0.1101 sq.ft.lb
- Approx. weight³ 34.4 lb
- Rated current 3.47 A
- Design B
- Mounting F-1
- Flange C
- L. R. Amperes 27.8 A
- Service factor 1.15
- Noise level² 52.0 dB(A)
- Terminal box¹ Left position
- No load current 2.20 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output 1 HP (0.75 kW)
- Locked rotor torque 290 %
- Standard NEMA MG-1
- Frequency 60 Hz
- Locked rotor time 39s (cold) 22s (hot)
- Altitude 1000 m.a.s.l.
- Output rating 1 HP
- Rated speed 1760 rpm
- Breakdown torque 360 %
- Ambient temperature -20°C to +40°C
- Voltage 200 V
- Rated voltage 200 V
- LRC 8.0x(Code L)
- Starting Method Direct On Line
- Number of Poles 4
- Rated torque 2.98 ft.lb
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Slip 2.22 %
- Insulation Class F
- Enclosure IC01 - ODP
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00118OT3P143TC-S Specs
