00118ET3H143TC-S WEG AC Motors
Part#:00118ET3H143TC-S
Manufacturer:WEG
Alt. Part#:7909522026655
Product Lifecycle:Active
Get a quick Quote!

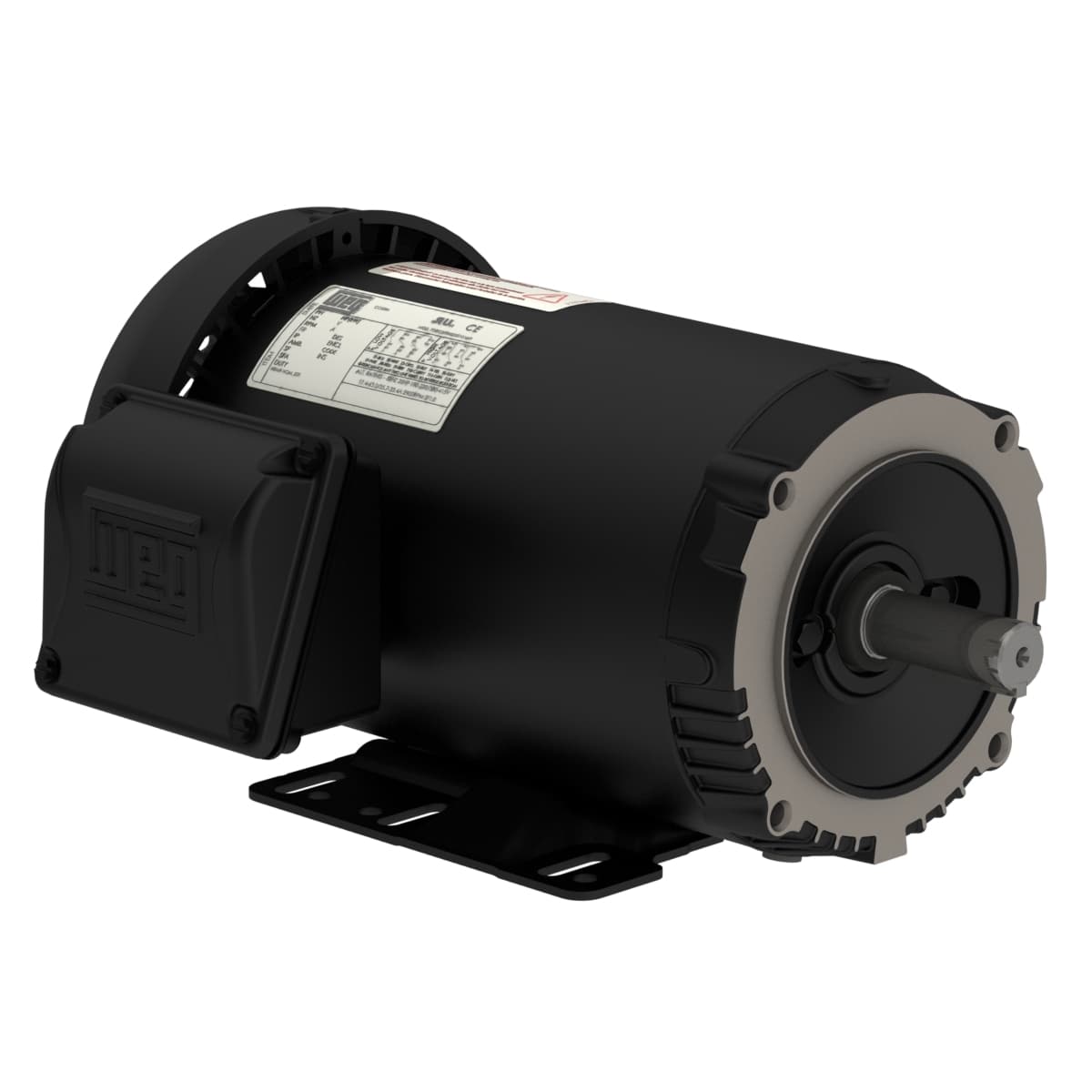

Rolled Steel NEMA Premium Efficiency 1 HP 4P 143/5TC 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00118ET3H143TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeC
- Frame 143/5TC
- LRC 8.6x(Code M)
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Flange C
- Number of Poles 4
- Locked rotor time 34s (cold) 19s (hot)
- Enclosure IC411 - TEFC
- Output 1 HP (0.75 kW)
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Rated current 1.18 A
- Breakdown torque 300 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 39.1 lb
- L. R. Amperes 10.1 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Frequency 60 Hz
- Rated torque 2.98 ft.lb
- Insulation Class F
- Noise level² 52.0 dB(A)
- Rated speed 1765 rpm
- Service factor 1.15
- Degree of Protection IP55
- Number of poles 4
- Locked rotor torque 280 %
- No load current 0.712 A
- Rotation¹ Both (CW and CCW)
- Voltage 575 V
- Slip 1.94 %
- Moment of inertia (J) 0.1232 sq.ft.lb
- Mounting F-1
- Output rating 1 HP
- Rated voltage 575 V
- Design B
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00118ET3H143TC-S Specs
1-year warranty
