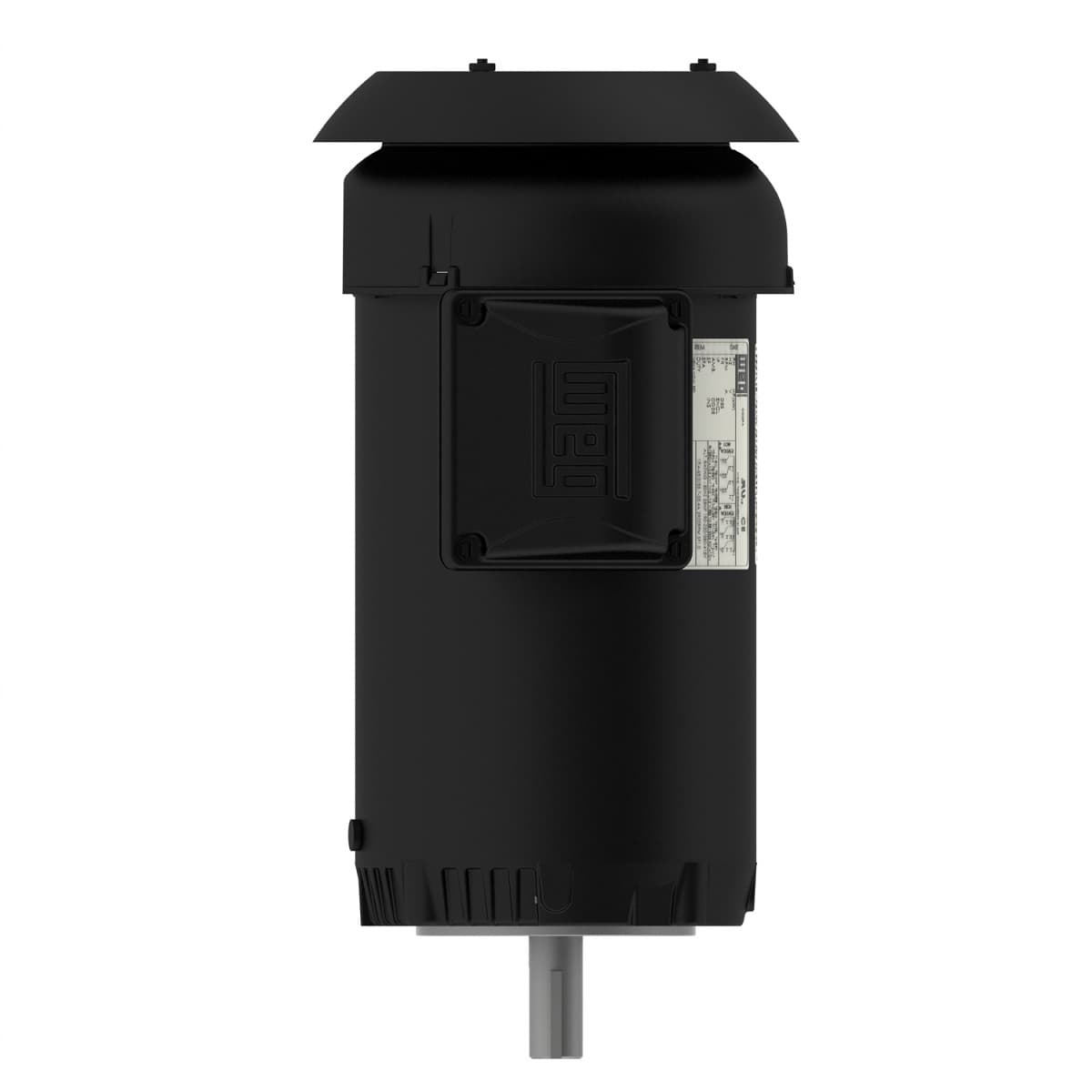

00112ET3VR145TC-S WEG AC Motors
Part#:00112ET3VR145TC-S
Manufacturer:WEG
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel NEMA Premium Efficiency 1 HP 6P 143/5T 3Ph 200/400 V 60 Hz IC411 - TEFC - Footless
Check out the 00112ET3VR145TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1 HP
- Rated Speed1145 rpm
- Number of Poles6 Pole
- Voltage200/400 V
- Flange TypeC
- Rated speed 1145 rpm
- Moment of inertia (J) 0.1597 sq.ft.lb
- Noise level² 50.0 dB(A)
- L. R. Amperes 21.1/10.5 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Flange C
- Frame 143/5T
- LRC 5.8x(Code J)
- Starting Method Direct On Line
- Voltage 200/400 V
- Slip 4.58 %
- Design B
- Duty Cycle Cont.(S1)
- Number of poles 6
- No load current 2.33/1.16 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Frequency 60 Hz
- Locked rotor time 55s (cold) 31s (hot)
- Degree of Protection IP55
- Output rating 1 HP
- Rated current 3.63/1.82 A
- Locked rotor torque 229 %
- Mounting W-6
- Synchronous speed 1200 rpm
- Output 1 HP (0.75 kW)
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Number of Poles 6
- Breakdown torque 280 %
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Rated voltage 200/400 V
- Rated torque 4.59 ft.lb
- Ambient temperature -20°C to +40°C
- Approx. weight³ 38.6 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
