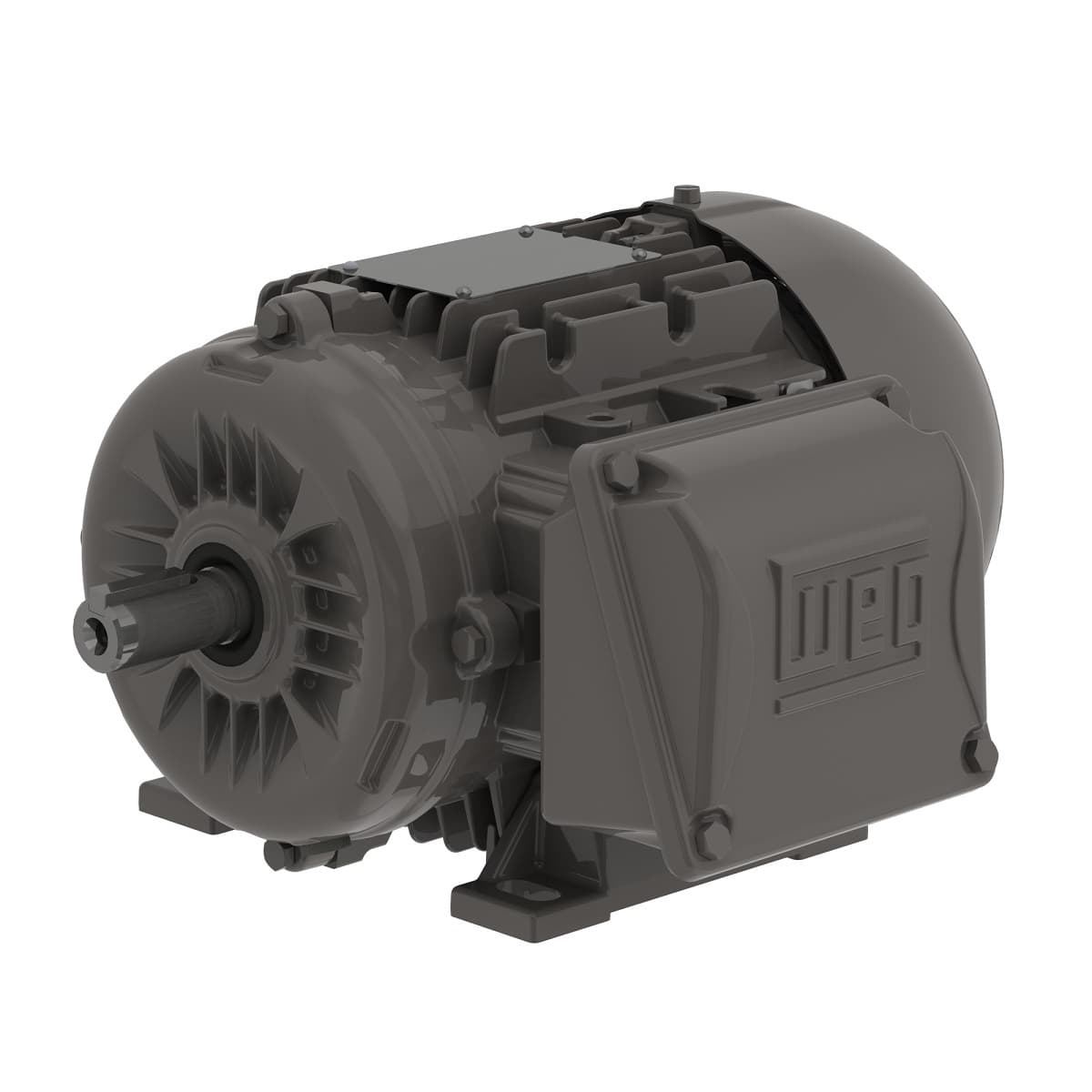

.5512EP3EAL80-W22 WEG AC Motors
Part#:.5512EP3EAL80-W22
Manufacturer:WEG
Alt. Part#:7909323281109
Product Lifecycle:Active
Get a quick Quote!
Multimounting High Efficiency 0.75 HP 6P 80 3Ph 230/460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the .5512EP3EAL80-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.75 HP
- Rated Speed910 rpm
- Number of Poles6 Pole
- Voltage380 V
- Flange TypeWithout
- Rated speed 910 rpm
- Locked rotor torque 200 %
- Starting Method Direct On Line
- Voltage 230/460//380-415 V
- L. R. Amperes 7.95 A
- Breakdown torque 210 %
- Duty Cycle S1
- Output rating 0.75 HP
- Number of Poles 6
- LRC 5.3
- Locked rotor time 16s (cold) 9s (hot)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Temperature rise 80 K
- Frame 80
- Frequency 50 Hz
- Noise level² 43.0 dB(A)
- Flange Without
- Design N
- Mounting B3L(E)
- Synchronous speed 1200 rpm
- Rated torque 4.33 ft.lb
- Degree of Protection IP55
- Rotation¹ Both (CW and CCW)
- Output 0.75 HP (0.55 kW)
- Moment of inertia (J) 0.0738 sq.ft.lb
- Rated voltage 380 V
- Altitude 1000 m.a.s.l.
- Rated current 1.50 A
- No load current 1.30 A
- Number of poles 6
- Approx. weight³ 28.3 lb
- Slip 9.00 %
- Insulation Class F
- Enclosure IC411 - TEFC
- Terminal box¹ Right position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
