.3318ES3EBMW56CFL-S WEG AC Motors
Part#:.3318ES3EBMW56CFL-S
Manufacturer:WEG
Alt. Part#:7909492492702
Product Lifecycle:Active
Get a quick Quote!

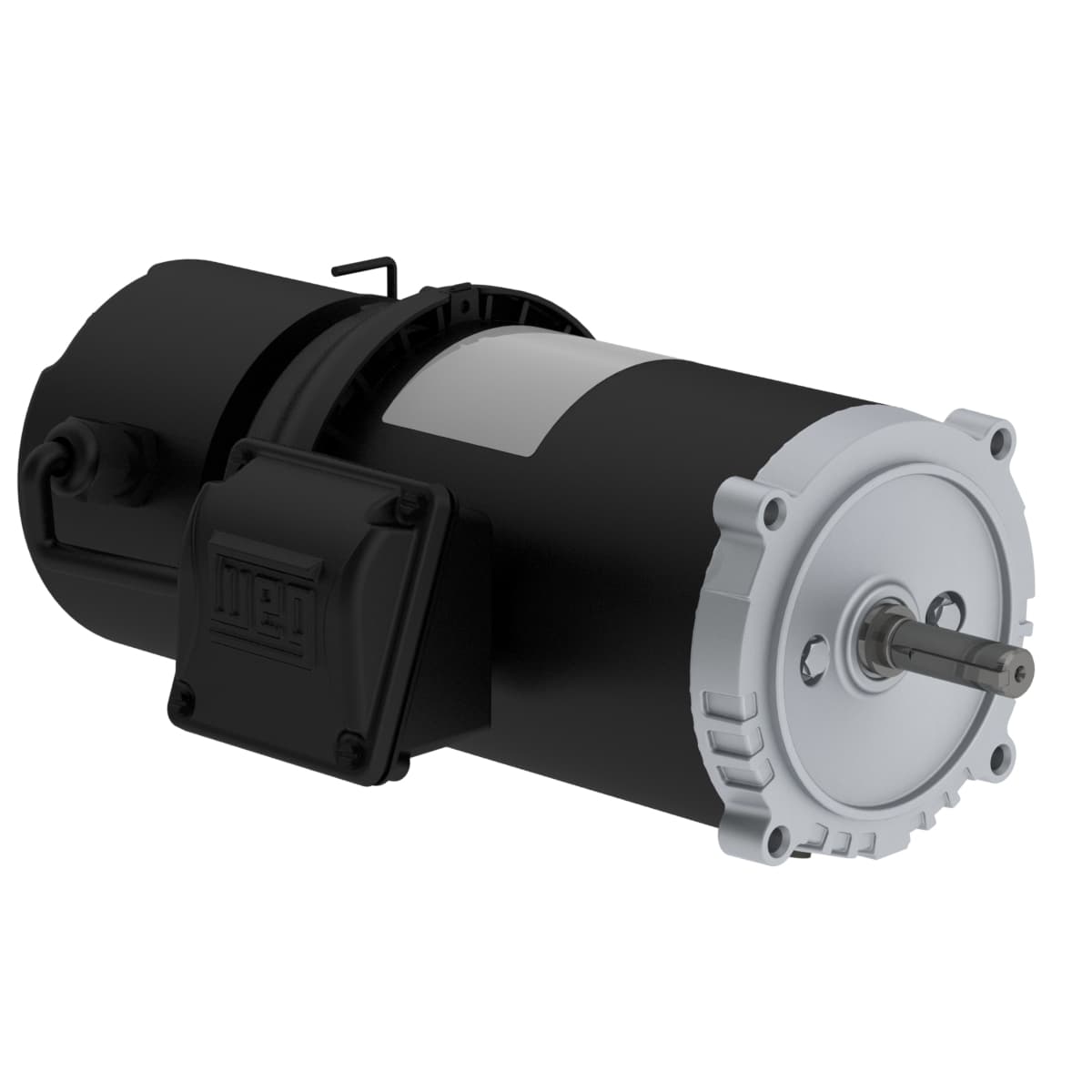

Rolled Steel Standard Efficiency 0.33 HP 4P W56C 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the .3318ES3EBMW56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.33 HP
- Rated Speed1730 rpm
- Number of Poles4 Pole
- Voltage208-230/460 V
- Flange TypeC
- Rated voltage 208-230/460 V
- Rated torque 1.00 ft.lb
- Number of poles 4
- No load current 0.919-1.07/0.533 A
- Moment of inertia (J) 0.0318 sq.ft.lb
- Approx. weight³ 23.3 lb
- Noise level² 50.0 dB(A)
- Output 0.33 HP (0.25 kW)
- Insulation Class F
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- LRC 5.4x(Code K)
- Starting Method Direct On Line
- Degree of Protection IP55
- Flange C
- Rated speed 1730 rpm
- Frequency 60 Hz
- Mounting F-1
- Ambient temperature -20°C to +40°C
- Slip 3.89 %
- Frame W56C
- Service factor 1.15 (1.00 @ 208V)
- Number of Poles 4
- Voltage 208-230/460//190-220/380-415 V
- Breakdown torque 270 %
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Output rating 0.33 HP
- L. R. Amperes 7.88-7.12/3.56 A
- Locked rotor time 37s (cold) 21s (hot)
- Altitude 1000 m.a.s.l.
- Synchronous speed 1800 rpm
- Rated current 1.46-1.32/0.659 A
- Locked rotor torque 229 %
- Temperature rise 80 K
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
