.3312AS1BPFPC48Z-S WEG AC Motors
Part#:.3312AS1BPFPC48Z-S
Manufacturer:WEG
Alt. Part#:7909712328378
Product Lifecycle:Active
Get a quick Quote!

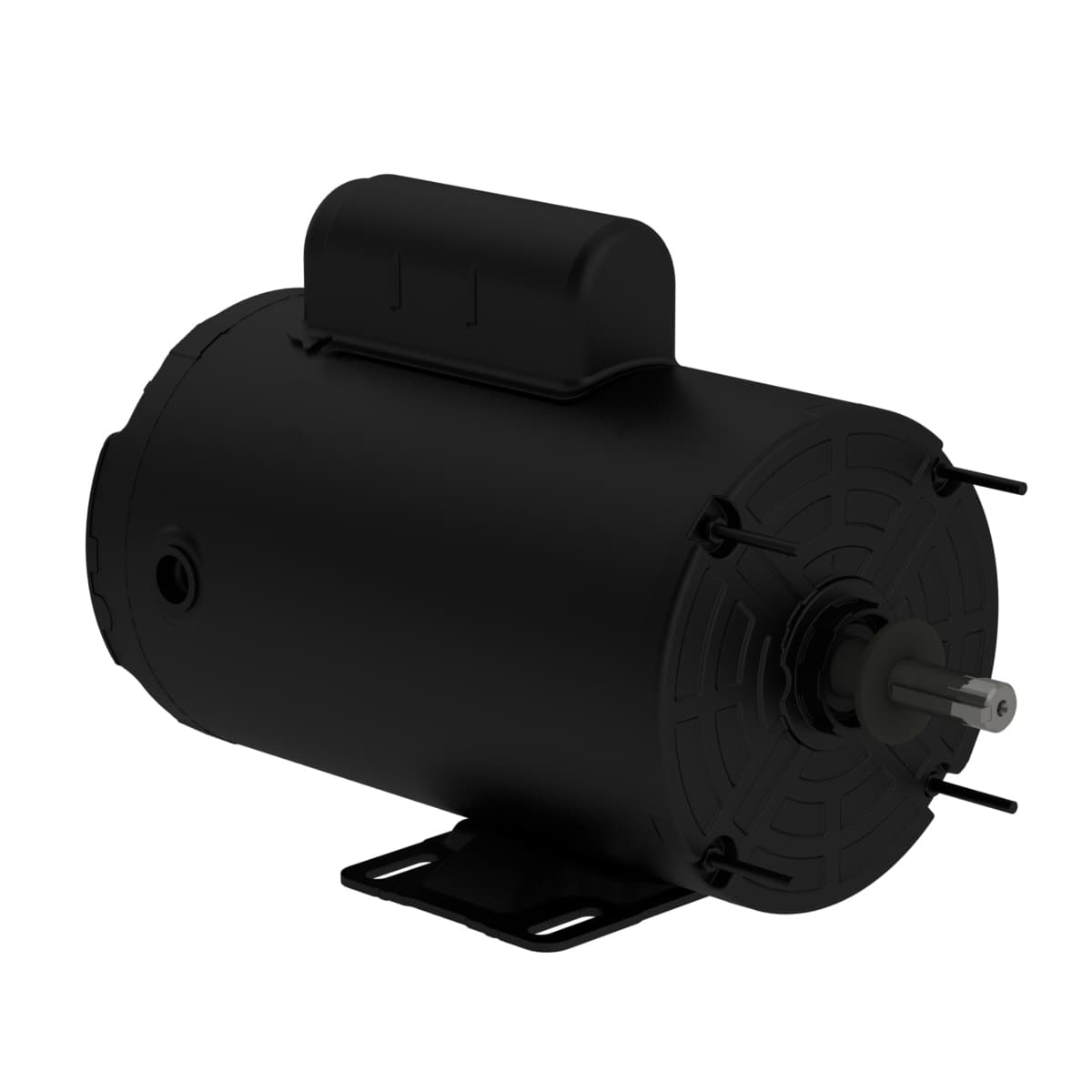

Rolled Steel Fan and Exhaust 0.33 HP 6P 48Z 1Ph 115/208-230 V 60 Hz IC418 - TEAO - Foot-mounted
Check out the .3312AS1BPFPC48Z-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.33 HP
- Rated Speed1165 rpm
- Number of Poles6 Pole
- Voltage115/208-230 V
- Flange TypeWithout
- Number of Poles 6
- Moment of inertia (J) 0.0617 sq.ft.lb
- Starting Method Direct On Line
- Frequency 60 Hz
- Rated voltage 115/208-230 V
- Locked rotor time 0s (cold) 0s (hot)
- Ambient temperature -20°C to +40°C
- Slip 2.92 %
- Locked rotor torque 40 %
- Temperature rise 80 K
- Flange Without
- L. R. Amperes 18.4/9.11-9.21 A
- Breakdown torque 270 %
- Mounting F-1
- Standard NEMA MG-1
- No load current 2.20/0.900-1.10 A
- Design N
- Approx. weight³ 27.6 lb
- Output 0.33 HP (0.25 kW)
- Rated torque 1.49 ft.lb
- Altitude 1000 m.a.s.l.
- Voltage 115/208-230 V
- Rated current 3.75/1.86-1.88 A
- Insulation Class F
- Number of poles 6
- Frame 48Z
- Rated speed 1165 rpm
- Service factor 1.25
- Enclosure IC418 - TEAO
- Terminal box¹ Without Terminal Box
- LRC 4.9x(Code H)
- Degree of Protection IP55
- Synchronous speed 1200 rpm
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Output rating 0.33 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
