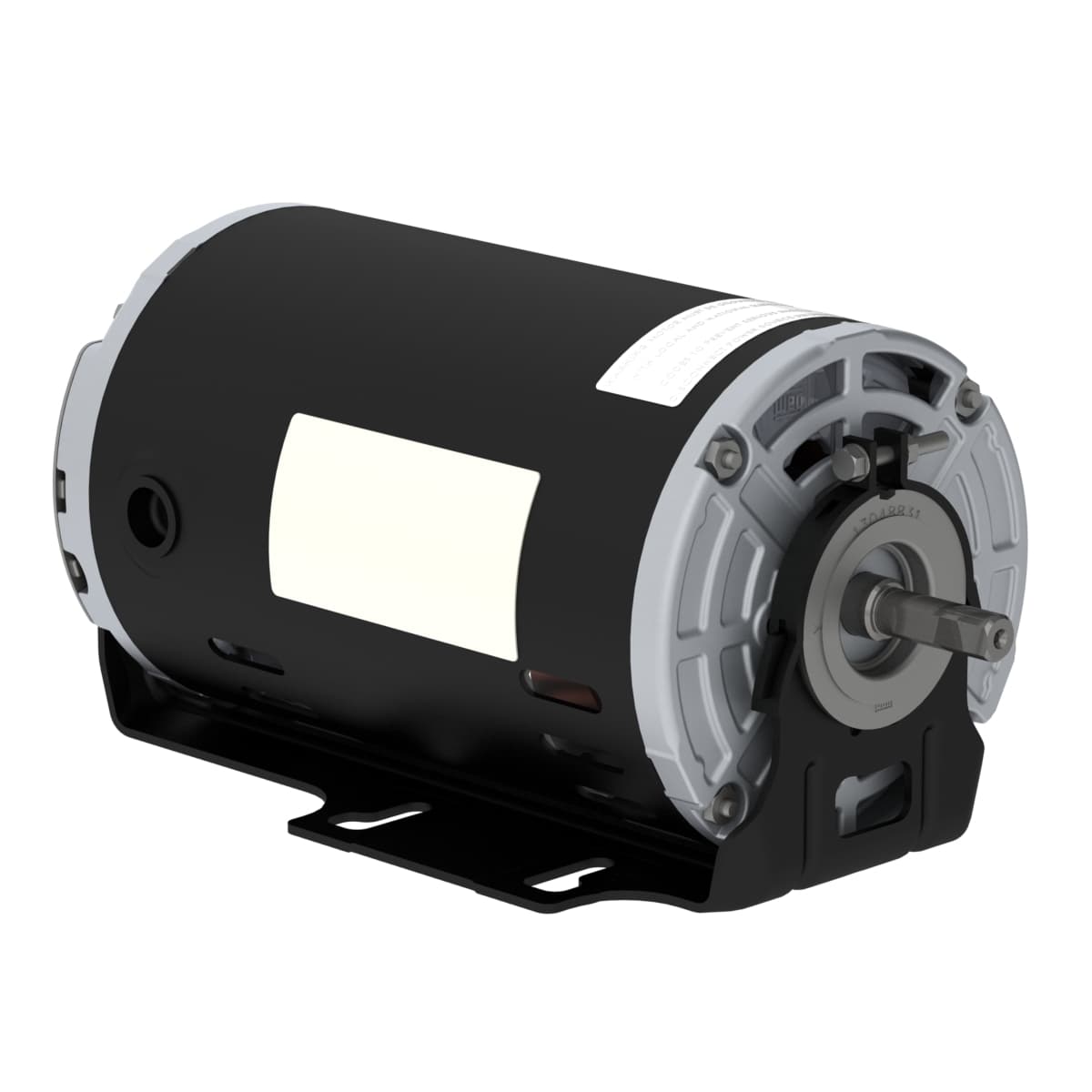

.1618OS1ASPRB48Z-S WEG AC Motors
Part#:.1618OS1ASPRB48Z-S
Manufacturer:WEG
Alt. Part#:7909492486749
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel Fan and Exhaust Split Phase 0.16 HP 4P 48Z 1Ph 115 V 60 Hz IC01 - ODP - Foot-mounted
Check out the .1618OS1ASPRB48Z-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.16 HP
- Rated Speed1725 rpm
- Number of Poles4 Pole
- Voltage115 V
- Flange TypeWithout
- Rated current 3.04 A
- Locked rotor torque 130 %
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
- Rated voltage 115 V
- No load current 2.80 A
- Mounting F-1
- Terminal box¹ Without Terminal Box
- Frame 48Z
- Locked rotor time 10s (cold) 6s (hot)
- Rotation¹ Both (CW and CCW)
- Breakdown torque 270 %
- Temperature rise 80 K
- Output rating 0.16 HP
- Output 0.16 HP (0.12 kW)
- Altitude 1000 m.a.s.l.
- Flange Without
- L. R. Amperes 18.8 A
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Slip 4.17 %
- Rated torque 0.487 ft.lb
- Approx. weight³ 16.1 lb
- Number of Poles 4
- LRC 6.2x(Code P)
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Service factor 1.35
- Standard NEMA MG-1
- Rated speed 1725 rpm
- Design N
- Voltage 115 V
