XVBL8G4 Schneider Electric Industrial Automation Components

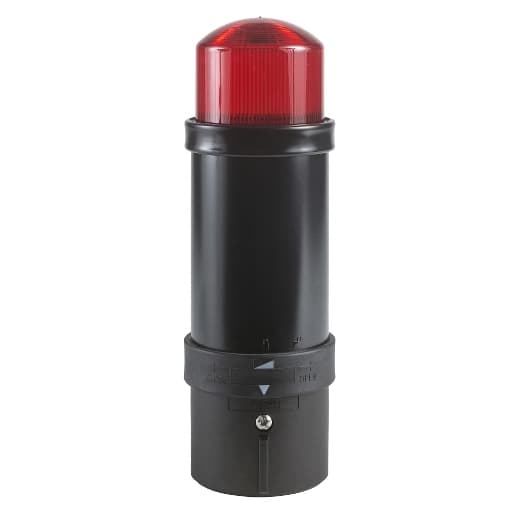

Schneider Electric XVBL8G4 Schneider Electric XVBL8G4 is a modular tower light from the XVB sub-range, designed as a cylindrical illuminated beacon featuring a 10 Joule "flash" discharge tube for strobe light functionality. This 1-tier light has a diameter of 70 mm and operates with a control and supply voltage of 120 Vac. It is equipped to deliver a red light output. The XVBL8G4 offers a degree of protection rated at IP66 and IP65 when mounted on the fixing base XVBZ0, ensuring its suitability for various industrial environments.
Schneider Electric

Part#:XVBL8G4

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric XVBL8G4 is a modular tower light from the XVB sub-range, designed as a cylindrical illuminated beacon featuring a 10 Joule "flash" discharge tube for strobe light functionality. This 1-tier light has a diameter of 70 mm and operates with a control and supply voltage of 120 Vac. It is equipped to deliver a red light output. The XVBL8G4 offers a degree of protection rated at IP66 and IP65 when mounted on the fixing base XVBZ0, ensuring its suitability for various industrial environments.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the XVBL8G4 Schneider Electric price in the box on the right side or send a quick quote.

Product Details

  • Range Of Product
    Harmony XVB Universal
  • [Us] Rated Supply Voltage
    120 V AC
  • Bulb Type
    Flash discharge tube
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
  • Connections - Terminals
    Screw clamp terminals, <= 1 x 1.5 mm² with cable end
  • Mounting Diameter
    2.76 in (70 mm)
  • [Ui] Rated Insulation Voltage
    250 V IEC 60947-1
  • Signalling Type
    Flashing
  • Component Name
    XVBL
  • Current Consumption
    < 290 mA AC
  • Flash Energy
    10 J
  • Net Weight
    1.01 lb(US) (0.46 kg)
  • Flashing Frequency
    1 Hz
  • Product Or Component Type
    Complete beacon
  • Light Source
    Integral flash discharge tube, red
  • Nominal Voltage Limit
    0.85...1.1 Un IEC 60947-5-1
  • CAD Overall Height
    9.13 in (232 mm)
  • CAD Overall Width
    2.76 in (70 mm)
  • CAD Overall Depth
    2.76 in (70 mm)
  • Material
    Glass reinforced polyamide base unit Polycarbonate illuminated unit
  • Terminals Description ISO N°1
    (GND)GROUND (COM-1)PW
  • Beacon Or Indicator Bank Unit Type
    Base unit direct or tube fixing Illuminated unit

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents XVBL8G4 Specs

XVBL8G4 Catalog-1631030089272.pdf
XVBL8G4 Product Datasheet-1631030089267.pdf
XVBL8G4 Instruction Sheet-1631030089270.pdf
