XVBL8B4 Schneider Electric Industrial Automation Components

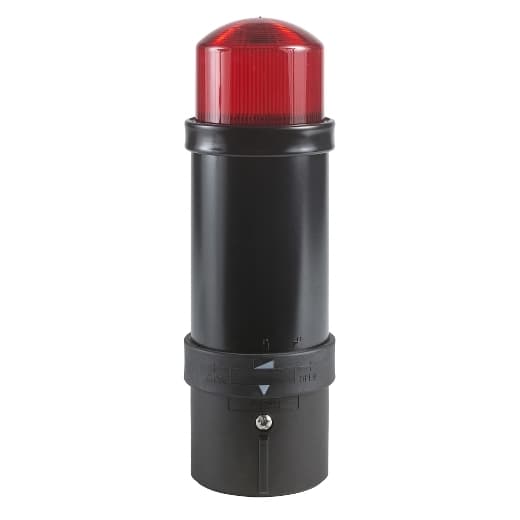

Schneider Electric XVBL8B4 Schneider Electric XVBL8B4 is a modular tower light from the XVB sub-range, designed as a cylindrical illuminated beacon featuring a 10 Joule "flash" discharge tube for strobe light functionality in a 1-tier configuration. It offers a degree of protection rated at IP66 and IP65 when mounted on the fixing base XVBZ0. This unit operates with a control voltage of 24 Vac and 24 Vdc, and similarly, its supply voltage requirements are 24 V for both AC and DC inputs. The light color emitted by this device is red, and it has a diameter of 70 mm.
Schneider Electric

Part#:XVBL8B4

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric XVBL8B4 is a modular tower light from the XVB sub-range, designed as a cylindrical illuminated beacon featuring a 10 Joule "flash" discharge tube for strobe light functionality in a 1-tier configuration. It offers a degree of protection rated at IP66 and IP65 when mounted on the fixing base XVBZ0. This unit operates with a control voltage of 24 Vac and 24 Vdc, and similarly, its supply voltage requirements are 24 V for both AC and DC inputs. The light color emitted by this device is red, and it has a diameter of 70 mm.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the XVBL8B4 Schneider Electric price in the box on the right side or send a quick quote.

Product Details

  • Product Or Component Type
    Complete beacon
  • Connections - Terminals
    Screw clamp terminals, <= 1 x 1.5 mm² with cable end
  • Flashing Frequency
    1 Hz
  • Range Of Product
    Harmony XVB Universal
  • Bulb Type
    Flash discharge tube
  • Mounting Diameter
    2.76 in (70 mm)
  • [Us] Rated Supply Voltage
    24 V AC/DC
  • CAD Overall Depth
    2.76 in (70 mm)
  • Flash Energy
    10 J
  • Signalling Type
    Flashing
  • Net Weight
    0.99 lb(US) (0.45 kg)
  • Component Name
    XVBL
  • [Ui] Rated Insulation Voltage
    250 V IEC 60947-1
  • Light Source
    Integral flash discharge tube, red
  • CAD Overall Width
    2.76 in (70 mm)
  • Nominal Voltage Limit
    0.85...1.1 Un IEC 60947-5-1
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
  • CAD Overall Height
    9.13 in (232 mm)
  • Current Consumption
    < 1300 mA AC < 850 mA DC
  • Beacon Or Indicator Bank Unit Type
    Base unit direct or tube fixing Illuminated unit
  • Terminals Description ISO N°1
    (GND)GROUND (COM-1)PW
  • Material
    Glass reinforced polyamide base unit Polycarbonate illuminated unit

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents XVBL8B4 Specs

XVBL8B4 Instruction Sheet-1631029850157.pdf
XVBL8B4 Product Datasheet-1631029850155.pdf
XVBL8B4 Catalog-1631029850426.pdf
