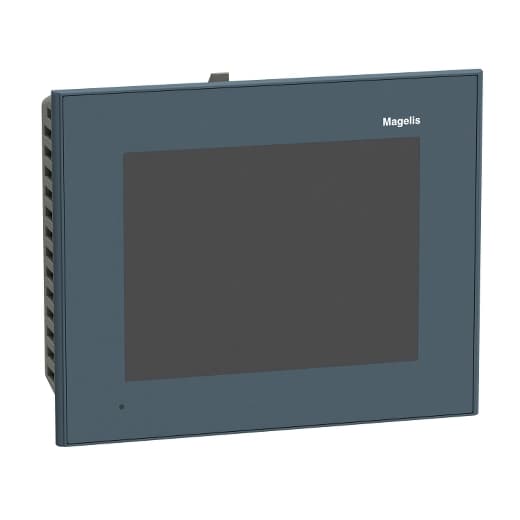

HMIGTO2315FW Schneider Electric LCD Touch Panels - HMI Panel

Name: HMIGTO2315FW
Brand: Schneider Electric

Schneider Electric HMIGTO2315FW Schneider Electric HMIGTO2315FW is a stainless steel operator dialogue touchscreen HMI and Programmable Terminal (PT) designed for industrial applications. It features 32 groups of 64 recipes, allowing for a maximum of 1024 ingredients and recipe curves, along with a log alarm and a built-in real-time clock. For connectivity, it includes a USB mini-B port, a USB type A port, two RJ45 ports, and a 9-pin D-Sub connector. The HMIGTO2315FW supports multiple communication protocols, including Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP. It operates on a 24Vdc supply voltage and is designed for flush mounting. The operating ambient air temperature range is 0 to +55°C, and it offers a degree of protection rated at IP66K and NEMA 4X. The device supports a 4GB SD card for expansion and has a memory capacity of 96MB for applications. The display is a 5.7" QVGA TFT with 65K colors and LED backlight, featuring a pixel count of 320x240. It can be stored in temperatures ranging from -20 to +60°C. The operating system is Magelis, and the electrical durability of the backlight is rated for 50,000 hours.

Part#:HMIGTO2315FW

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric HMIGTO2315FW is a stainless steel operator dialogue touchscreen HMI and Programmable Terminal (PT) designed for industrial applications. It features 32 groups of 64 recipes, allowing for a maximum of 1024 ingredients and recipe curves, along with a log alarm and a built-in real-time clock. For connectivity, it includes a USB mini-B port, a USB type A port, two RJ45 ports, and a 9-pin D-Sub connector. The HMIGTO2315FW supports multiple communication protocols, including Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP. It operates on a 24Vdc supply voltage and is designed for flush mounting. The operating ambient air temperature range is 0 to +55°C, and it offers a degree of protection rated at IP66K and NEMA 4X. The device supports a 4GB SD card for expansion and has a memory capacity of 96MB for applications. The display is a 5.7" QVGA TFT with 65K colors and LED backlight, featuring a pixel count of 320x240. It can be stored in temperatures ranging from -20 to +60°C. The operating system is Magelis, and the electrical durability of the backlight is rated for 50,000 hours.

About the manufacturer: Schneider Electric is one of the manufacturers that offers LCD Touch Panels - HMI Panel that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the HMIGTO2315FW Schneider Electric price in the box on the right side or send a quick quote.

Product Details

Supply
External source
Display Size
5.7 inch
Height
7.13 in (181 mm)
Display Type
Backlit colour TFT LCD
Inrush Current
30 A
Product Or Component Type
Advanced touchscreen panel
Terminal Type
Touchscreen display
[Us] Rated Supply Voltage
24 V DC
Front Material
Stainless steel 304
Provided Equipment
1 protective cover
Supply Voltage Limits
19.2…28.8 V
Display Colour
65536 colours
Touch Sensitive Zone
1024 x 1024
Net Weight
2.65 lb(US) (1.2 kg)
Product Mounting
Flush mounting
Battery Type
Lithium internal RAM 100 days 5 day(s) 10 year(s)
Software Designation
Vijeo Designer configuration software >= V6.1
Width
8.41 in (213.5 mm)
Display Resolution
320 x 240 pixels QVGA
Type Of Cooling
Natural convection

Enclosure Material

PPT

Backlight Lifespan

50000 hours white 77 °F (25 °C)

Memory Description

Flash EPROM, 96 MB

Touch Panel

Resistive film, 1000000 cycles

Range Of Product

Harmony GTO

Data Backed Up

512 kB internal RAM SRAM)

Depth

2.34 in (59.5 mm)

Brightness

16 levels by touch panel 16 levels by software

Data Storage Equipment

SD card, <= 32 GB SDHC card, <= 32 GB

Fixing Mode

by 8 nuts by 4 L brackets

Maximum Power Consumption In W

6.5 W when power is not supplied to external devices 4.5 W when backlight is OFF 5 W when backlight is dimmed 10.5 W

Character Font

Japanese (ANK, Kanji) ASCII Taiwanese (traditional Chinese) Korean Chinese (simplified Chinese)

Local Signalling

Status LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF) COM2 LED yellow, steady data

Integrated Connection Type

COM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI Ethernet RJ45 10BASE-T/100BASE-TX Ethernet RJ45 IEEE 802.3 USB 2.0 type A USB

Downloadable Protocols

Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
