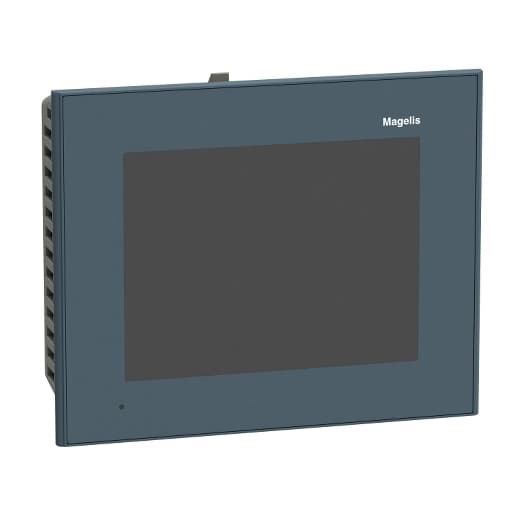

HMIGTO2300FCW Schneider Electric LCD Touch Panels - HMI Panel

Name: HMIGTO2300FCW
Brand: Schneider Electric

Schneider Electric HMIGTO2300FCW Schneider Electric HMIGTO2300FCW is a coated operator dialogue touchscreen HMI and Programmable Terminal (PT) designed for various automation applications. It supports up to 32 groups of 64 recipes, allowing for a maximum of 1024 ingredients, and includes recipe curves with a log alarm log and a built-in real-time clock. For connectivity, it features a USB mini-B port, a USB type A port, two RJ45 ports, and a 9-pin D-Sub connector. The HMIGTO2300FCW utilizes communication protocols such as Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP. It requires a 24Vdc supply voltage and is designed for flush mounting. The operating ambient air temperature range is 0 to +50°C, and it offers a degree of protection of IP65, IP67, and NEMA 4X. With a memory capacity of 64MB for applications, it features a 5.7" QVGA TFT 65K color display with LED backlight, supporting a pixel count of 320x240 pixels. The storage ambient air temperature range is -20 to +60°C. It operates on the Magelis OS, and the electrical durability of its backlight is rated at 50,000 hours.

Part#:HMIGTO2300FCW

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric HMIGTO2300FCW is a coated operator dialogue touchscreen HMI and Programmable Terminal (PT) designed for various automation applications. It supports up to 32 groups of 64 recipes, allowing for a maximum of 1024 ingredients, and includes recipe curves with a log alarm log and a built-in real-time clock. For connectivity, it features a USB mini-B port, a USB type A port, two RJ45 ports, and a 9-pin D-Sub connector. The HMIGTO2300FCW utilizes communication protocols such as Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP. It requires a 24Vdc supply voltage and is designed for flush mounting. The operating ambient air temperature range is 0 to +50°C, and it offers a degree of protection of IP65, IP67, and NEMA 4X. With a memory capacity of 64MB for applications, it features a 5.7" QVGA TFT 65K color display with LED backlight, supporting a pixel count of 320x240 pixels. The storage ambient air temperature range is -20 to +60°C. It operates on the Magelis OS, and the electrical durability of its backlight is rated at 50,000 hours.

About the manufacturer: Schneider Electric is one of the manufacturers that offers LCD Touch Panels - HMI Panel that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the HMIGTO2300FCW Schneider Electric price in the box on the right side or send a quick quote.

Product Details

Display Resolution
320 x 240 pixels QVGA
Touch Panel
Resistive film, 1000000 cycles
Front Material
PPT
Supply
External source
Range Of Product
Harmony GTO
[Us] Rated Supply Voltage
24 V DC
Data Backed Up
128 kB internal RAM SRAM)
Width
6.67 in (169.5 mm)
Display Size
5.7 inch
Touch Sensitive Zone
1024 x 1024
Software Designation
Vijeo Designer configuration software >= V6.1
Type Of Cooling
Natural convection
Product Or Component Type
Advanced touchscreen panel
Memory Description
Flash EPROM, 64 MB
Enclosure Material
PPT
Display Colour
65536 colours
Supply Voltage Limits
19.2…28.8 V
Height
5.39 in (137 mm)
Terminal Type
Touchscreen display
Backlight Lifespan
50000 hours white 77 °F (25 °C)

Fixing Mode

by 4 screw clamps

Display Type

Backlit colour TFT LCD

Product Mounting

Flush mounting

Net Weight

1.76 lb(US) (0.8 kg)

Battery Type

Lithium internal RAM 100 days 5 day(s) 10 year(s)

Inrush Current

30 A

Depth

2.34 in (59.5 mm)

Downloadable Protocols

Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell

Brightness

16 levels by touch panel 16 levels by software

Maximum Power Consumption In W

6.5 W when power is not supplied to external devices 4.5 W when backlight is OFF 5 W when backlight is dimmed 10.5 W

Integrated Connection Type

COM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI USB 2.0 type A USB 2.0 type mini B

Character Font

Korean ASCII (European characters) Chinese (simplified Chinese) Taiwanese (traditional Chinese) Japanese (ANK, Kanji)

Local Signalling

Status LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF) COM2 LED yellow, steady data

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
