HMIGTO1310FC Schneider Electric LCD Touch Panels - HMI Panel
Part#:HMIGTO1310FC
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

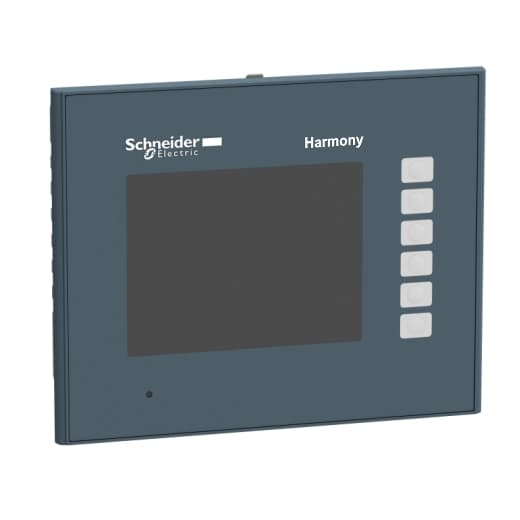

Schneider Electric HMIGTO1310FC is a coated operator dialogue touchscreen HMI/Programmable Terminal (PT) featuring the Schneider Electric logo, equipped with 6 function keys and capable of managing 32 groups of 64 recipes, totaling up to 1024 ingredients. It includes recipe curves, a log alarm log, and a built-in real-time clock. This unit offers connectivity through a USB mini-B port, a USB type A port, and two RJ45 ports, supporting communication protocols such as Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP. It requires a 24Vdc power supply and is designed for flush mounting. The HMIGTO1310FC operates within an ambient air temperature range of 0 to +50°C and offers a degree of protection rated at IP65, IP67, and NEMA 4X. It has a memory capacity of 96MB for applications and features a 3.5" QVGA TFT 65K color display with LED backlight, supporting a pixel count of 320x240. The device is designed to withstand ambient air temperatures ranging from -20 to +60°C during storage and runs on the Magelis operating system. Its electrical durability is rated at 50,000 hours for the backlight.
About the manufacturer: Schneider Electric is one of the manufacturers that offers LCD Touch Panels - HMI Panel that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the HMIGTO1310FC Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Display Type Backlit colour TFT LCD
- Touch Sensitive Zone 1024 x 1024
- Software Designation Vijeo Designer configuration software >= V6.1
- Net Weight 0.88 lb(US) (0.4 kg)
- Display Size 3.5 inch
- Data Backed Up 512 kB internal RAM SRAM)
- Width 5.20 in (132 mm)
- Display Colour 65536 colours
- Memory Description Flash EPROM, 96 MB
- Fixing Mode by 4 screw clamps
- Battery Type Lithium internal RAM 100 days 5 day(s) 10 year(s)
- Supply Voltage Limits 19.2…28.8 V
- Depth 1.65 in (42 mm)
- Range Of Product Harmony GTO
- Control Button Type 6 operation defined using Vijeo Designer push-button key F1...F6
- Enclosure Material PPT
- Supply External source
- Backlight Lifespan 50000 hours white 77 °F (25 °C)
- Product Or Component Type Advanced touchscreen panel
- [Us] Rated Supply Voltage 24 V DC
- Front Material PPT
- Product Mounting Flush mounting
- Display Resolution 320 x 240 pixels QVGA
- Touch Panel Resistive film, 1000000 cycles
- Terminal Type Touchscreen display
- Inrush Current 30 A
- Type Of Cooling Natural convection
- Height 4.17 in (106 mm)
- Brightness 16 levels by touch panel 16 levels by software
- Data Storage Equipment SD card, <= 32 GB SDHC card, <= 32 GB
- Maximum Power Consumption In W 5.2 W when power is not supplied to external devices 4.2 W when backlight is OFF 4.3 W when backlight is dimmed 9.6 W
- Local Signalling Status LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF)
- Character Font ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Taiwanese (traditional Chinese) Korean
- Integrated Connection Type COM1 serial link RJ45 RS232C/RS485 2400...115200 bps COM1 serial link RJ45 RS232C/RS485 187.5 kbps Siemens MPI Ethernet RJ45 10BASE-T/100BASE-TX Ethernet RJ45 IEEE 802.3 USB 2.0 type A USB 2.0 type mini B
- Downloadable Protocols Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents HMIGTO1310FC Specs
