EDB14040 Schneider Electric Industrial Automation Components
Part#:EDB14040
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 14
Jun 19, 2025

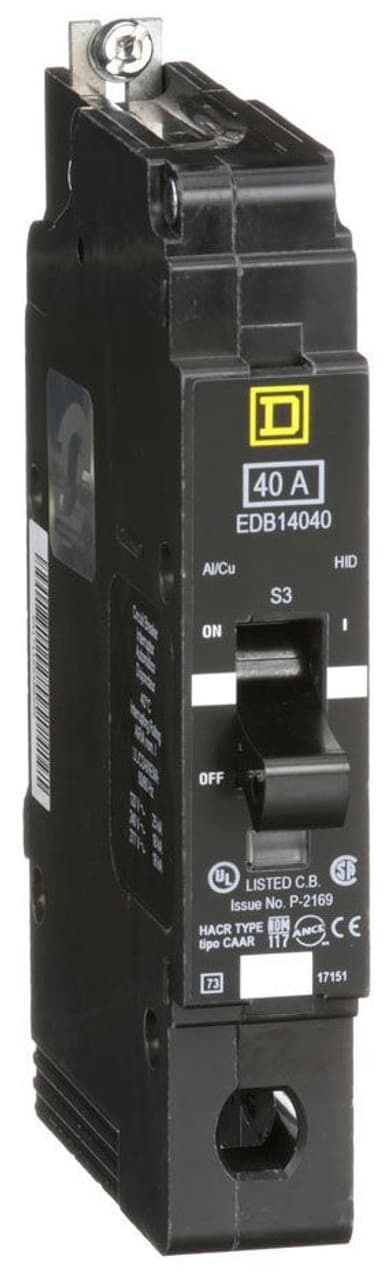

Square D by Schneider Electric EDB14040 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 277 V AC. This MCB serves as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code D. It offers short-circuit and overload protection, utilizing an aluminium lugs connection. The EDB14040 is rated for a current of 40A and is a single-pole device. It accommodates a wire cross-section ranging from 12 to 2/0 AWG. The short circuit breaking rating is specified at 25kA for 120Vac, 18kA for 240Vac, and 18kA for 277Vac. It features a thermal-magnetic trip unit with a protection setting (trip unit rating) of 1800A.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the EDB14040 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Number Of Spaces Required 1
- Depth 4.05 in (102.87 mm)
- Mounting Mode Bolt-on
- Height 5.66 in (143.76 mm)
- Line Rated Current 40 A
- Local Signalling Trip indicator
- Product Or Component Type Miniature circuit-breaker
- Electrical Connection Lugs aluminium
- Trip Unit Technology Thermal-magnetic
- Range Of Product 125 A Frame EDB-EGB-EJB
- Holding Current 630 A
- Device Short Name EDB
- Number Of Poles 1
- Net Weight 2 lb(US) (0.91 kg)
- Trip Unit Rating 1800 A
- Number Of Spaces 1
- Width 0.98 in (24.89 mm)
- Product Destination NF panelboard
- Maximum Operating Voltage 277 V AC
- Module Type E-Frame
- Breaking Capacity Code D
- TS PIK: 115178510
- Shipping Weight: 1.25 lbs.
- UPC: 78590187895
- Shipping Length: 10.00 In.
- Shipping Height: 2.00 In.
- Shipping Width: 6.00 In.
- Circuit Breaker Application HACR rated HID rated
- Protection Type Short-circuit Overload
- Tightening Torque 34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
- AWG Gauge AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper
- Breaking Capacity 18 kA 277 V AC 18 kA 240 V AC 25 kA 120 V AC 18 kA 120/240 V AC
