EDB14015 Schneider Electric Industrial Automation Components
Part#:EDB14015
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

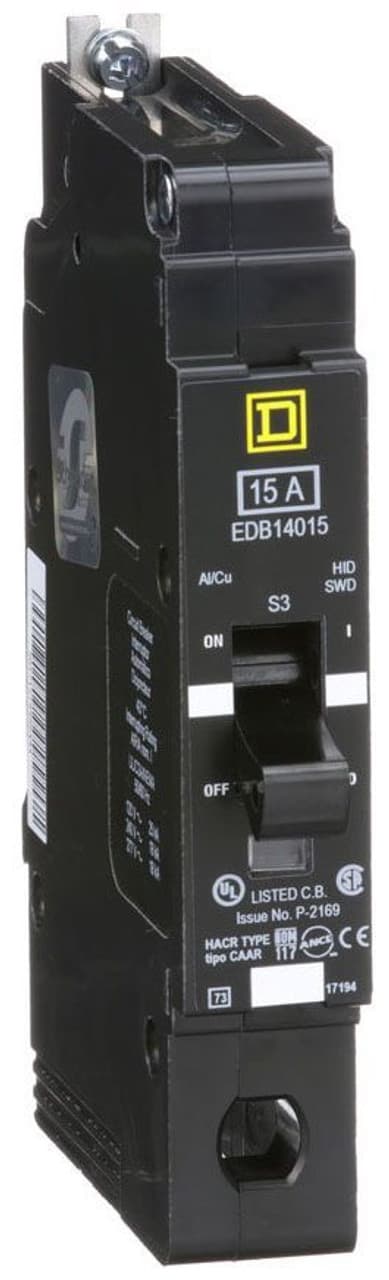

Square D by Schneider Electric EDB14015 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and an aluminium lugs connection. This MCB operates at a rated voltage of 277 V AC, with a rated current of 15A and is suitable for a single pole configuration. It supports a wire cross-section of 14-6AWG for one copper cable. The EDB14015 offers protection functions against short-circuit and overload conditions, serving as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code D. It has a short circuit breaking rating of 25kA at 120Vac, 18kA at 240Vac, and 18kA at 277Vac. The thermal-magnetic trip unit has a protection setting with a trip unit rating of 875A.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the EDB14015 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Height 5.66 in (143.76 mm)
- Product Or Component Type Miniature circuit-breaker
- Net Weight 2 lb(US) (0.91 kg)
- Maximum Operating Voltage 277 V AC
- Holding Current 270 A
- Device Short Name EDB
- Number Of Spaces Required 1
- Number Of Spaces 1
- Trip Unit Technology Thermal-magnetic
- Module Type E-Frame
- Breaking Capacity Code D
- Product Destination NF panelboard
- Trip Unit Rating 875 A
- Mounting Mode Bolt-on
- Width 0.98 in (24.89 mm)
- Local Signalling Trip indicator
- Range Of Product 125 A Frame EDB-EGB-EJB
- Electrical Connection Lugs aluminium
- Tightening Torque 30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
- Depth 4.05 in (102.87 mm)
- Line Rated Current 15 A
- Number Of Poles 1
- UPC: 78590187889
- Shipping Height: 2.00 In.
- Shipping Length: 10.00 In.
- Shipping Width: 6.00 In.
- Shipping Weight: 1.35 lbs.
- TS PIK: 21032802
- Protection Type Short-circuit Overload
- AWG Gauge AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
- Circuit Breaker Application Switching Duty rated HACR rated HID rated
- Breaking Capacity 18 kA 277 V AC 18 kA 240 V AC 25 kA 120 V AC 18 kA 120/240 V AC
