TESZ110 Schmersal Electronic Components
Part#:TESZ110
Manufacturer:Schmersal
Alt. Part#:101028894
Product Lifecycle:Active
Get a quick Quote!

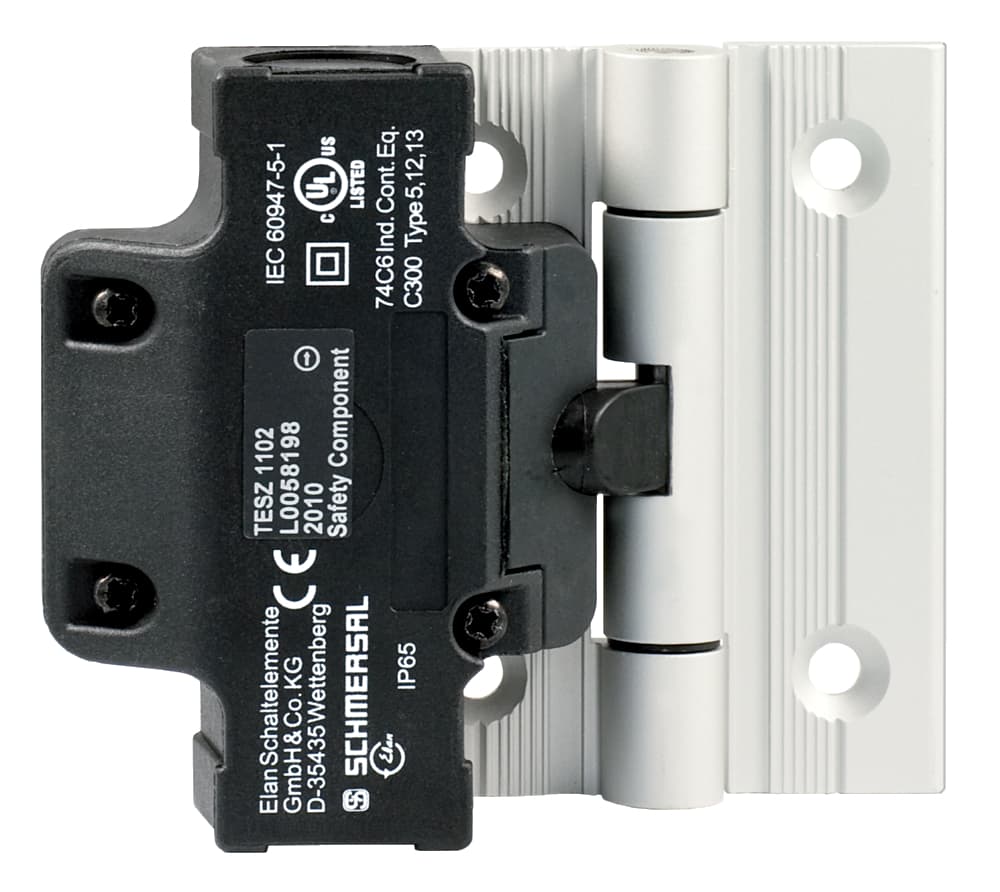

Safety switch for hinged guards; Hinge safety switch; 2 cable entries M 20 x 1.5; Simple fitting, especially on 40 mm profiles; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 111,5 mm x 92 mm x 36 mm
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the TESZ110 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the contacts, electrical Silver
- Positive break force, minimum 1 N
- Height of sensor 92 mm
- Standards IEC/EN 60947-5-1, BG-GS-ET-15
- Mechanical life, minimum 1,000,000 Operations
- Gross weight 420 g
- Terminal Connector Screw connection
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Width of sensor 111.5 mm
- Ambient temperature, minimum -25 °C
- Degree of protection IP65
- Material of the hinge Aluminium
- Additional hinge Yes
- Cable section, maximum 1.5 mm²
- Length x Width x Height Suitable for mounting to profile systems: 40 mm
- Rated insulation voltage Ui 250 V
- Utilisation category AC-15 2 A
- mounting hinge Yes
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Length of sensor 36 mm
- Cable section, minimum 0.5 mm²
- Ambient temperature, maximum +65 °C
- Thermal test current 2.5 A
- Switching element Opener (NC)
- Positive break angle 14 °
- Number of safety contacts 2
- Rated impulse withstand voltage Uimp 2.5 kV
- Switching principle Creep circuit element
- Switching frequency 120 /h
- Utilisation category DC-13 1 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents TESZ110 Specs
