TESZ110/45 Schmersal Electronic Components
Part#:TESZ110/45
Manufacturer:Schmersal
Alt. Part#:101030525
Product Lifecycle:Active
Get a quick Quote!

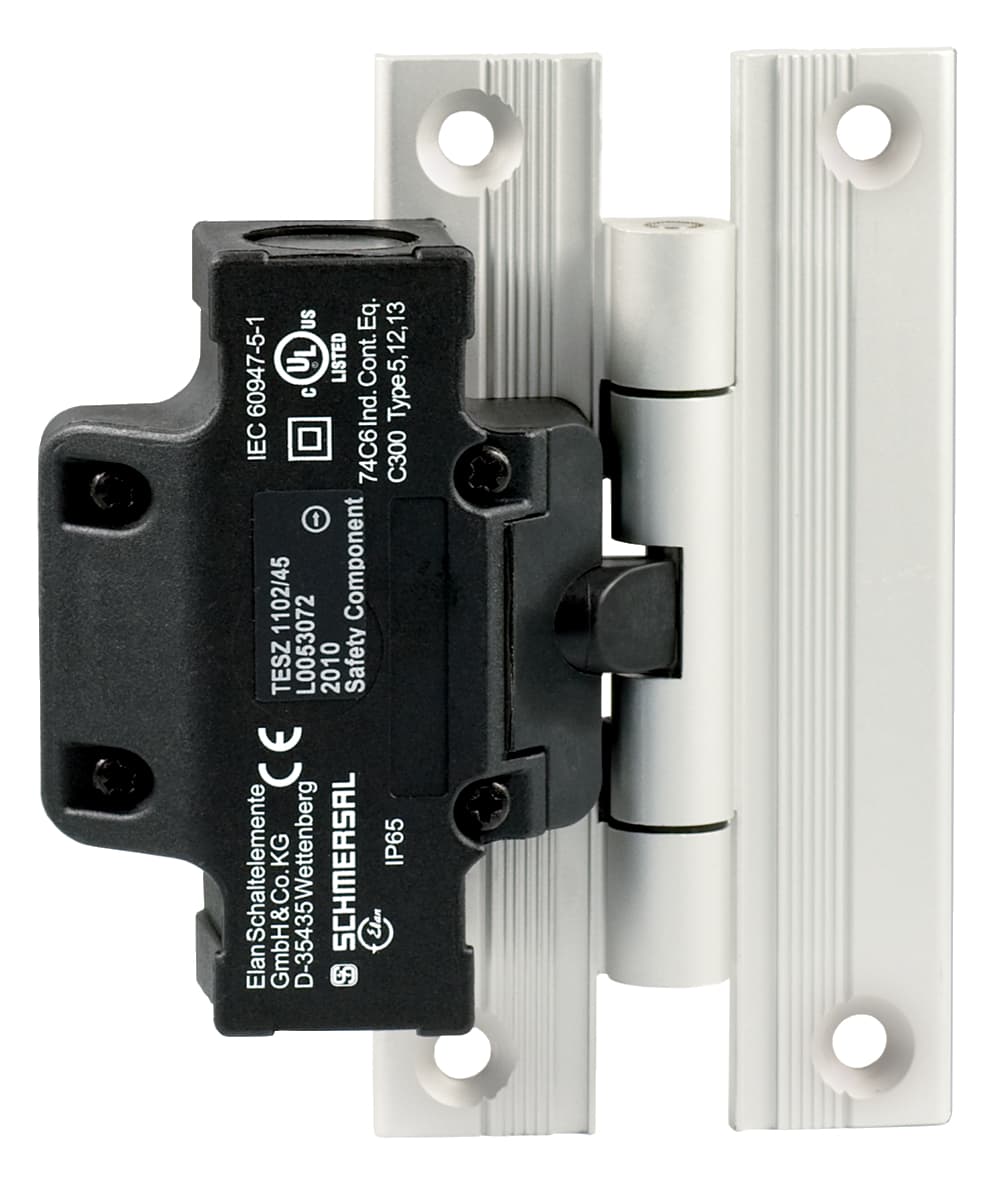

Safety switch for hinged guards; Hinge safety switch; 2 cable entries M 20 x 1.5; Simple fitting, especially on 45 mm profiles; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 111,5 mm x 92 mm x 36 mm
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the TESZ110/45 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Standards IEC/EN 60947-5-1, BG-GS-ET-15
- Terminal Connector Screw connection
- Length of sensor 36 mm
- Rated insulation voltage Ui 250 V
- Switching frequency 120 /h
- Gross weight 500 g
- Number of safety contacts 2
- Length x Width x Height Suitable for mounting to profile systems: 45 mm
- Thermal test current 2.5 A
- Switching principle Creep circuit element
- Positive break angle 14 °
- Material of the hinge Aluminium
- Width of sensor 111.5 mm
- Utilisation category AC-15 2 A
- Material of the contacts, electrical Silver
- Cable section, minimum 0.5 mm²
- Degree of protection IP65
- Switching element Opener (NC)
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Cable section, maximum 1.5 mm²
- Ambient temperature, minimum -25 °C
- Mechanical life, minimum 1,000,000 Operations
- Positive break force, minimum 1 N
- Ambient temperature, maximum +65 °C
- Utilisation category DC-13 1 A
- mounting hinge Yes
- Height of sensor 92 mm
- Additional hinge Yes
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Rated impulse withstand voltage Uimp 2.5 kV
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents TESZ110/45 Specs
