SLG 425I-E/R0900-04-RF Schmersal Electronic Components
Part#:SLG 425I-E/R0900-04-RF
Manufacturer:Schmersal
Alt. Part#:101207665
Product Lifecycle:Active
Get a quick Quote!

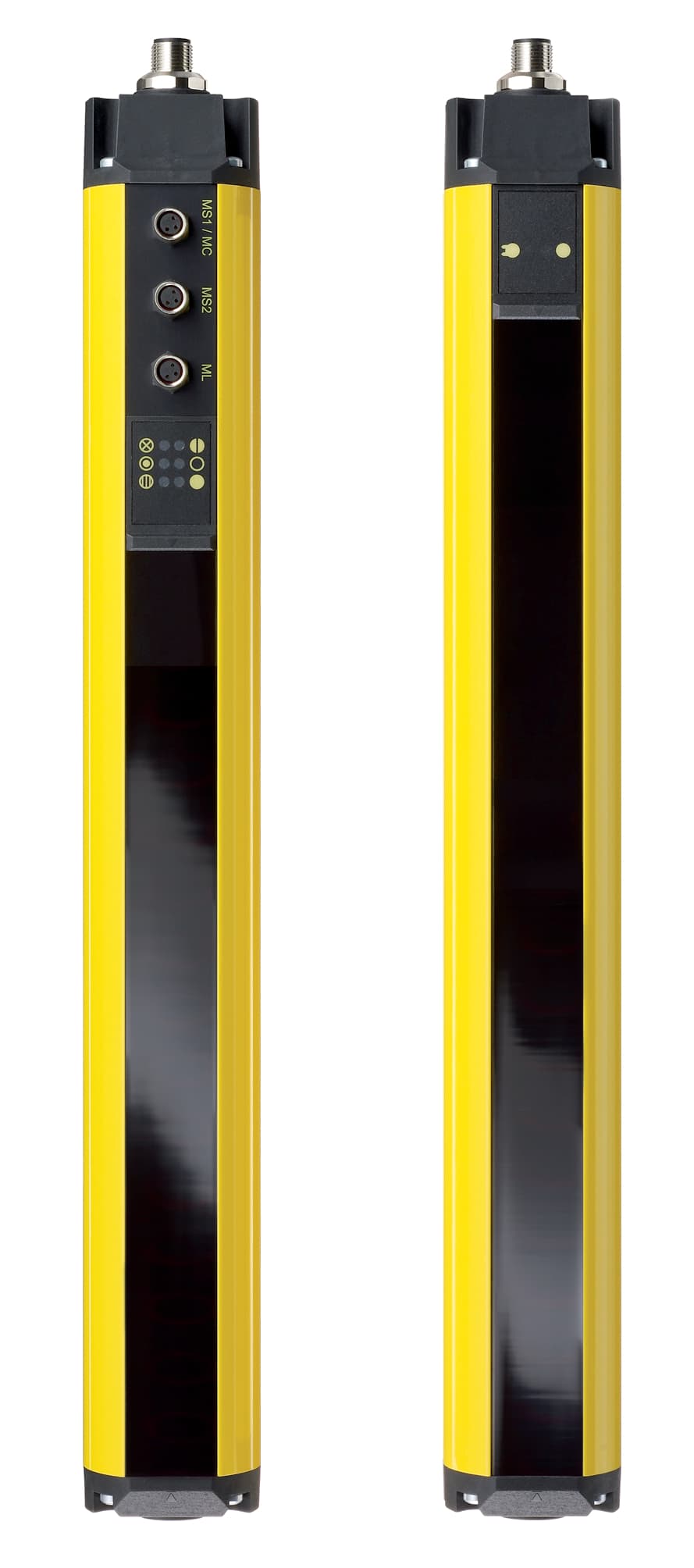

Safety light grids and curtains (Archive); Safety light grids (archive); Protection class IP67; Safety type 4 in accordance with IEC 61496-1; 2-, 3-, 4-beam; Range from 0,3 m … 18 m
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SLG 425I-E/R0900-04-RF Schmersal price in the box on the right side or send a quick quote.
Product Details
- Muting function Yes
- Detection ability for test bodies at v = 1.6 m/s 900 mm
- Terminal Connector Connector
- Degree of protection IP67 to EN 60529
- Protection rating III
- Beam coding available Yes
- Number of fail-safe digital outputs 2
- Standards IEC/EN 61496-1/-2
- Storage and transport temperature, minimum -25 °C
- Output current, (fail-safe output), maximum 0.5 A
- Number of beams 4
- Reaction time, maximum 15 ms
- Enclosure material Aluminium
- Height of transmitter 1,124 mm
- Electrical power consumption of the transmitter 4 W
- Override Yes
- Height of the protection field 900 mm
- Diameter of sensor 49 mm
- Storage and transport temperature, maximum +70 °C
- Voltage type DC (direct current)
- Integral System Diagnostics, status Yes
- Gross weight 4,000 g
- Range, protection field, minimum 300 mm
- Height of Receiver 1,188 mm
- Electrical power consumption of the receiver 8 W
- Ambient temperature, maximum +50 °C
- Integral System Diagnostics Yes
- Range, protection field, maximum 18,000 mm
- Terminal connector, Recipient Connector plug M12, 8-pole
- Switching voltage OSSD, HIGH signal 24 V
- Restart interlock (manual reset) Yes
- Length of cable 100 m
- Ambient temperature, minimum -10 °C
- Versions p-type
- Wave length of the sensor 880 nm
- Terminal, Connector, Transmitter Connector plug M12, 4-pole
- Length of cable, maximum 100 m
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SLG 425I-E/R0900-04-RF Specs
