SLG 420-E/R0900-04-69-RF Schmersal Electronic Components
Part#:SLG 420-E/R0900-04-69-RF
Manufacturer:Schmersal
Alt. Part#:101207379
Product Lifecycle:Active
Get a quick Quote!

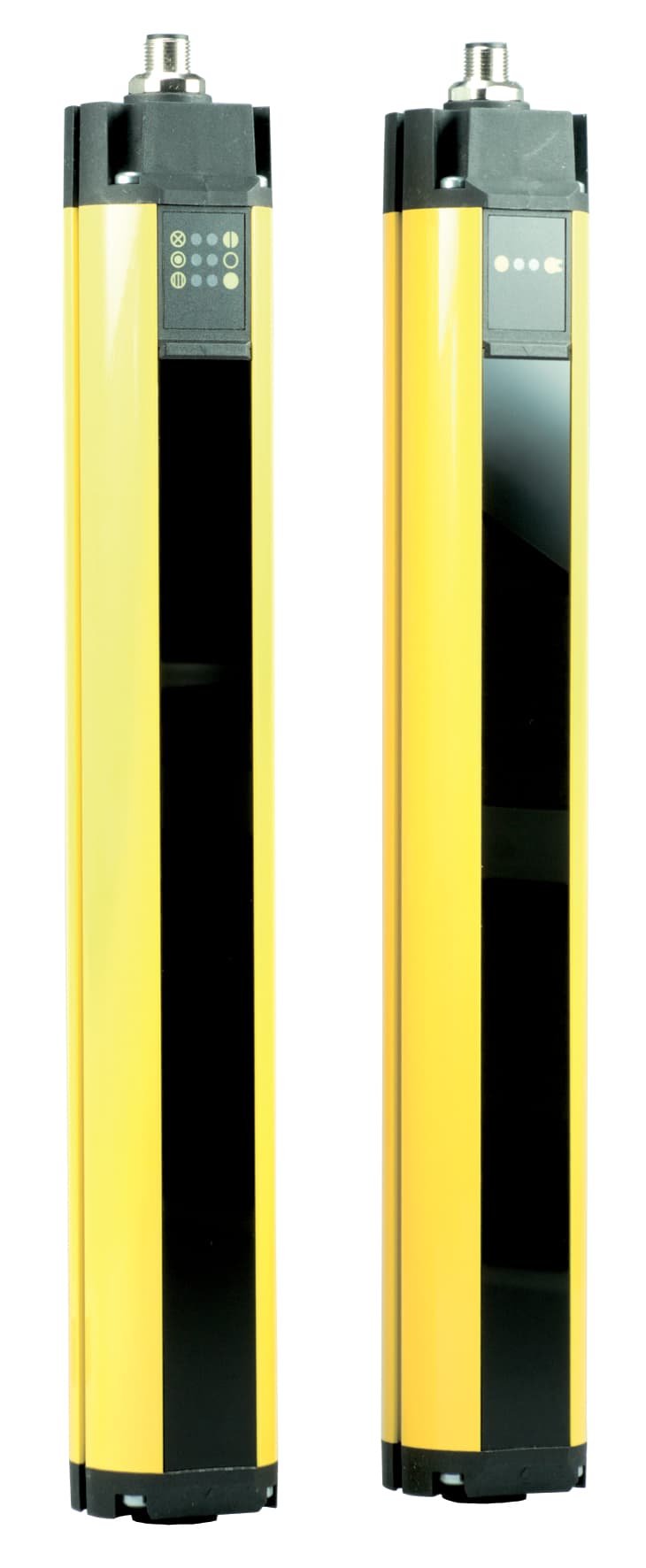

Safety light curtains, Safety light grids; Safety light grids; Protection class IP69K; Protection class IP67; Safety type 4 in accordance with IEC 61496-1
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SLG 420-E/R0900-04-69-RF Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 5,570 g
- Terminal Connector Connector
- Height of sensor 1,067 mm
- Electrical power consumption of the receiver 8 W
- Standards IEC/EN 61496-1/-2
- Range, protection field, maximum 18,000 mm
- Degree of protection IP69K to EN 60529
- Electrical power consumption of the transmitter 4 W
- Reaction time, maximum 10 ms
- Integral System Diagnostics Yes
- Length of cable 5 m
- Storage and transport temperature, maximum +70 °C
- Versions p-type
- Beam coding available Yes
- Number of fail-safe digital outputs 2
- Terminal connector, Recipient Cable with connector plug M12, 8-pole
- Storage and transport temperature, minimum -25 °C
- Output current, (fail-safe output), maximum 0.5 A
- Enclosure material Aluminium
- Detection ability for test bodies at v = 1.6 m/s 900 mm
- Terminal, Connector, Transmitter Cable with connector plug M12, 4-pole
- Voltage type DC (direct current)
- Restart interlock (manual reset) Yes
- Range, protection field, minimum 300 mm
- Diameter of sensor 60 mm
- Protection rating III
- Integral System Diagnostics, status Yes
- Height of the protection field 900 mm
- Ambient temperature, maximum +50 °C
- Length of cable, maximum 100 m
- Number of beams 4
- Wave length of the sensor 880 nm
- Ambient temperature, minimum -10 °C
- Switching voltage OSSD, HIGH signal 24 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SLG 420-E/R0900-04-69-RF Specs
