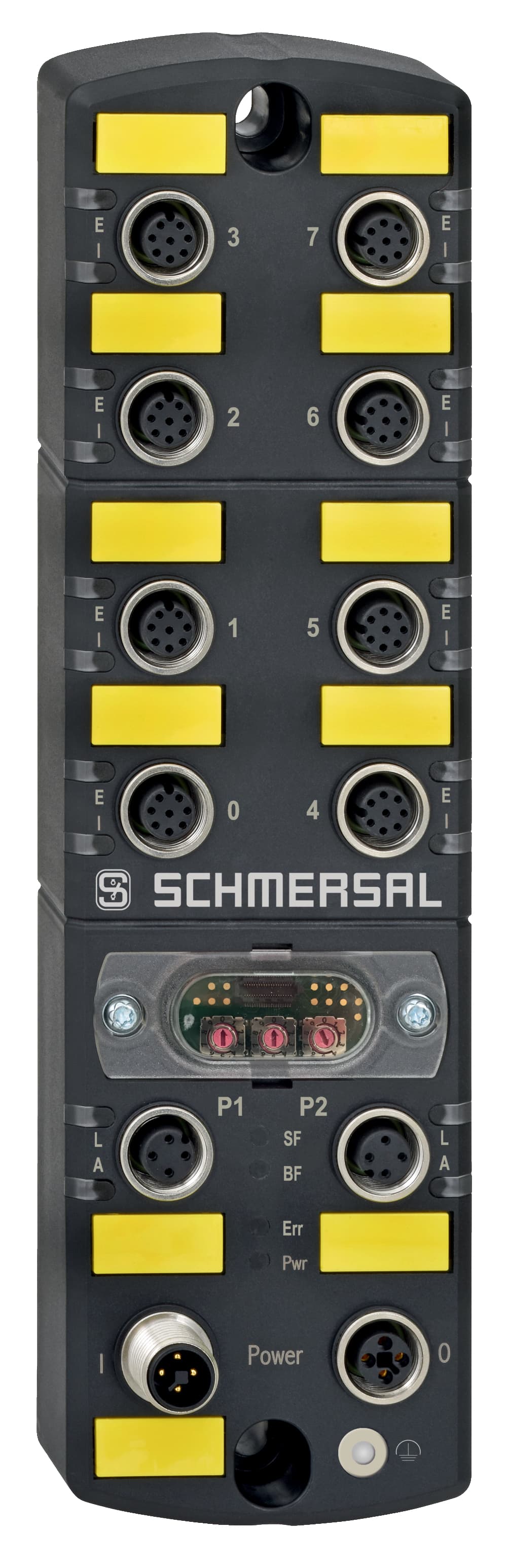

SFB-PN-IRT-8M12-IOP Schmersal Electronic Components
Part#:SFB-PN-IRT-8M12-IOP
Manufacturer:Schmersal
Alt. Part#:103015478
Product Lifecycle:Active
Get a quick Quote!
Safety-Fieldboxes; Safety fieldbox for PROFINET/PROFIsafe; For connection of up to 8 safety switching devices; Integrated dual-port switch, IRT-capable; Protection class IP67
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SFB-PN-IRT-8M12-IOP Schmersal price in the box on the right side or send a quick quote.
Product Details
- Mounting Screws
- Terminal connector, Input/Output X0 - X7: M12, 8-pole, A-coded
- Ambient temperature, minimum -25 °C
- Rated insulation voltage Ui 32 VDC
- Device Watchdog Time(Device_WD / DIN EN 61784-3-3) 10 ms
- PROFINET, Network load class 3
- Switching thresholds −3 V … 5 V (Low), 15 V … 30 V (High)
- Type of the fixing screws 2x M6
- Terminal Connector, Power I/O M12 POWER, 4-pole, T-coded
- Width 63 mm
- Note (Relative humidity) non-condensing
- Operating voltage 24 V
- Field bus PROFINET / PROFIsafe
- Integrated switch Dual Port, 100 Mbit/s, IRT fähig
- Time to readiness, maximum 8,000 ms
- Tightening torque of electrical connection 1 Nm
- Ambient temperature, maximum +55 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- Device Acknowledgement Time, maximum(DAT / DIN EN 61784-3-3) 25 ms
- PROFINET, Services I&M0 ... I&M3, SNMP, LLDP
- Classification ZVEI CB24I, Sink C1
- Material of viewing window Polyamide PACM 12
- Tightening torque for the fixing screws, maximum 3 Nm
- Height 36.1 mm
- Storage and transport temperature, maximum +70 °C
- Degree of pollution to IEC/EN 60664-1 3
- Worst Case Delay Time, maximum(WCDT_Input / DIN EN 61784-3-3) 20 ms
- PROFIsafe, Specification V2.4
- Material of electronic encapsulation Polyurethane 2K PU
- Standards EN ISO 13849-1, IEC 61508, IEC 60947-5-3
- Degree of protection IP65, IP67 to EN 60529
- Restistance to shock 30 g / 11 ms
- Overvoltage category III
- Operating Current 200 mA
- PROFINET, Options Media Redundancy Protocol (MRP), Fast Start Up
- Gross weight 655 g
- Material of the identification label Plastic, Polyamide PA
- Tightening torque of electrical connection, maximum 1.5 Nm
- Protection rating III
- Storage and transport temperature, minimum -25 °C
- Operating current 10,000 mA
- PROFINET, Specification V2.3, Conformance Class C
- Service interface WEB-Interface HTTP
- Integral System Diagnostics, general Yes
- Terminal Connector M12 Connector socket/connector
- Length 222.8 mm
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz (0.35 mm / 5 g), 5 … 10 Hz, amplitude 3.5 mm
- Worst Case Delay Time, maximum(WCDT_Output / DIN EN 61784-3-3) 50 ms
- Adressing Discovery and Configuration Protocol (DCP)
- Classification ZVEI CB24I, Source C1
- Enclosure material Thermoplastic, Polyamide PA 6 GF
- Relative humidity, minimum 10 %
- Rated operating voltage 24 VDC - 15 % / + 10 % (stabilised PELV)
- Transfer rate 100 Mbit/s Full Duplex
- Relative humidity, maximum 95 %
- Terminal Connector, Field bus PROFINET P1/P2: M12, 4-pole, D-coded
