RSST32S1 Schmersal Key Switches
Part#:RSST32S1
Manufacturer:Schmersal
Alt. Part#:101195379
Product Lifecycle:Active
Get a quick Quote!

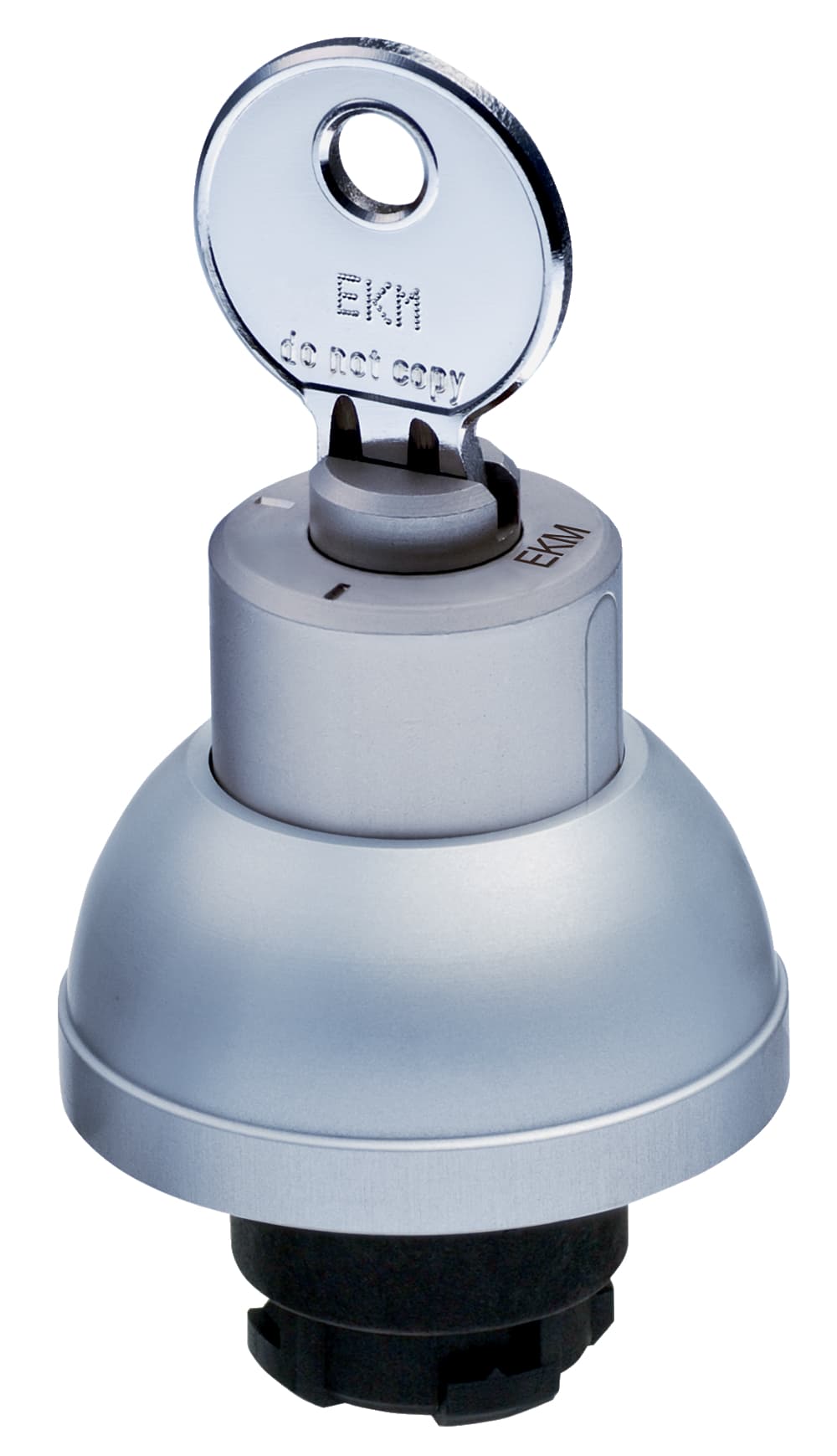

RSST32S1 Schmersal - Keyed Selector Switch
About the manufacturer: Schmersal is one of the manufacturers that offers Key Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RSST32S1 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Latching Yes
- Gross weight 125 g
- Latching position left
- Height with key inserted 58 mm
- Ambient temperature, maximum +75 °C
- Probing possible Yes
- Fully insulated Yes
- Switching angle, left 55 °
- Spacing 50 x 60 mm
- Sealing type Membrane, Lip gaskets, Form seals
- Number of plunger 2
- Switching angle, right 35 °
- Thickness of the front panel, maximum 6 mm
- Material of the cylinder lock Steel
- Installation conditions (mechanical) arbitrarily
- Mechanical life, minimum 300,000 Operations
- Diameter total 39.5 mm
- Degree of protection IP65
- Standards EN 60947-5-1, IEC/EN 60947-1
- Key withdrawal position Position I
- diameters for the cylinder lock 22 mm
- Thickness, of the front panel, minimum 1 mm
- Versions Key - Selector switch - Front plate mounting
- Number of switch positions 3
- Mounting Mounting flange EFM
- Diameter hole 22.3 mm
- Restistance to shock 50 g
- Material of the front ring Aluminium
- Unlocking Rotating unlatcher
- Diameter of the front ring 39.5 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Colour of the cylinder lock Silver
- Colour of the front ring Silver
- Touch position right
- Tightening torque of the screw 0.6 Nm
- Ambient temperature, minimum +0 °C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RSST32S1 Description
RSST32S1 Schmersal - Keyed Selector Switch
