RDTWS Schmersal Pushbuttons
Part#:RDTWS
Manufacturer:Schmersal
Alt. Part#:101188237
Product Lifecycle:Active
Get a quick Quote!

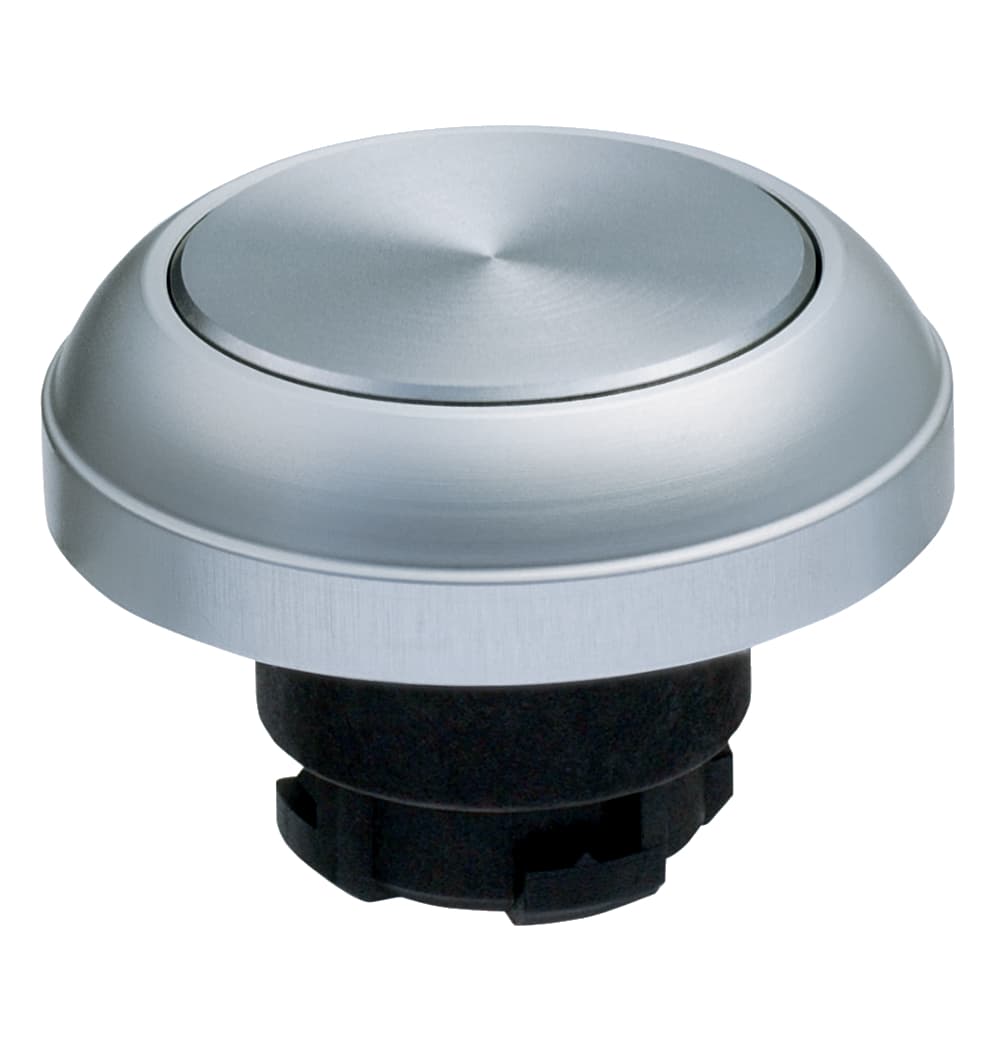

RDTWS Schmersal - Pushbutton
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RDTWS Schmersal price in the box on the right side or send a quick quote.
Product Details
- Mounting flange Yes
- Mounting Mounting flange EFM
- Thickness of the front panel, maximum 6 mm
- Restistance to shock 50 g
- Sealing type Membrane, Lip gaskets, Form seals
- Material of the operators Aluminium
- Probing possible Yes
- Height 11 mm
- Ambient temperature, maximum +75 °C
- Material of the front ring Aluminium
- Unlocking without
- Diameter total 39.5 mm
- Switching frequency 1,200 /h
- Standards EN 60947-5-1, IEC/EN 60947-1
- Gross weight 40 g
- Actuating stroke 4 mm
- Ambient temperature, minimum -25 °C
- Versions Embeddable button - Front plate mounting
- Mechanical life, minimum 1,000,000 Operations
- Diameter of the front ring 39.5 mm
- Spacing 40 x 50 mm
- Colour of the operating element White
- Fully insulated Yes
- Height of touch surface 0.5 mm
- Degree of protection IP65
- Installation conditions (mechanical) arbitrarily
- Actuating force, approx. 1.5 N
- Diameter of touch surface 28 mm
- Thickness, of the front panel, minimum 1 mm
- Design Round
- Colour of the front ring Silver
- Tightening torque of the screw 0.6 Nm
- Diameter hole 22.3 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RDTWS Description
RDTWS Schmersal - Pushbutton
Related documents RDTWS Specs
