RDRZ45RT Schmersal Pushbuttons
Part#:RDRZ45RT
Manufacturer:Schmersal
Alt. Part#:101193576
Product Lifecycle:Active
Get a quick Quote!

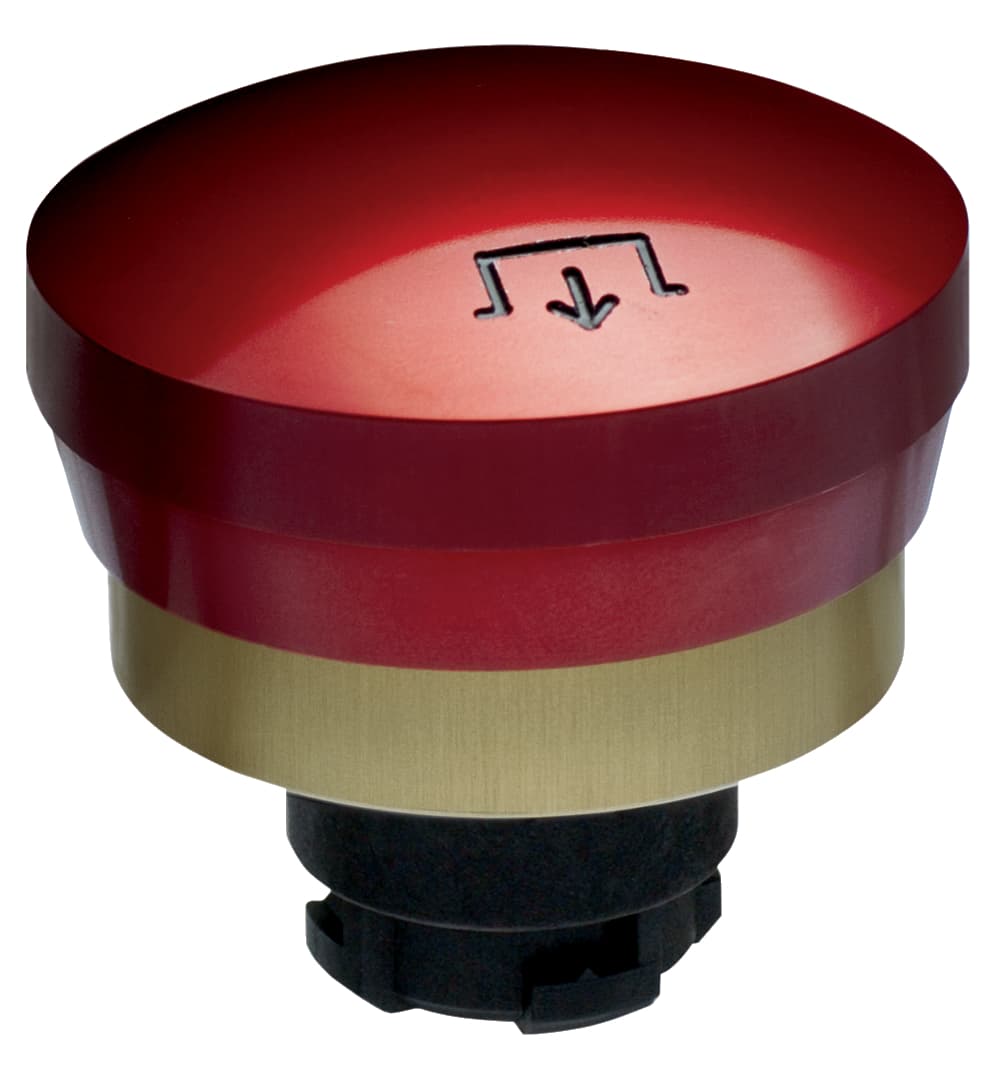

RDRZ45RT Schmersal - Emergency Stop Pushbutton
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RDRZ45RT Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 110 g
- Latching Yes
- Actuating stroke 4 mm
- Spacing 50 x 60 mm
- Colour of the operating element Red
- Material of the operators Aluminium powder-coated
- Fully insulated Yes
- diameters for the actuating heads 45 mm
- Ambient temperature, minimum -25 °C
- Mounting flange Yes
- Design Round
- Mechanical life, minimum 100,000 Operations
- Thickness, of the front panel, minimum 1 mm
- Emergency-Stop button Yes
- Installation conditions (mechanical) arbitrarily
- Mounting Mounting flange EFM
- Restistance to shock 50 g
- Sealing type Membrane, Lip gaskets, Form seals
- Snap-action mechanism integrated Yes
- Tightening torque of the screw 0.6 Nm
- Ambient temperature, maximum +75 °C
- Versions Emergency stop pushbutton with latching - front plate mounting
- Standards EN ISO 13850, IEC/EN 60947-5-5
- Diameter total 45 mm
- Degree of protection IP65
- Safety functions Yes
- Colour of the front ring Yellow
- Height 27.5 mm
- Thickness of the front panel, maximum 6 mm
- Material of the front ring Aluminium
- Unlocking Draw unlocking
- Diameter hole 22.3 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RDRZ45RT Description
RDRZ45RT Schmersal - Emergency Stop Pushbutton
