RDRZ45GB Schmersal Pushbuttons
Part#:RDRZ45GB
Manufacturer:Schmersal
Alt. Part#:101195098
Product Lifecycle:Active
Get a quick Quote!

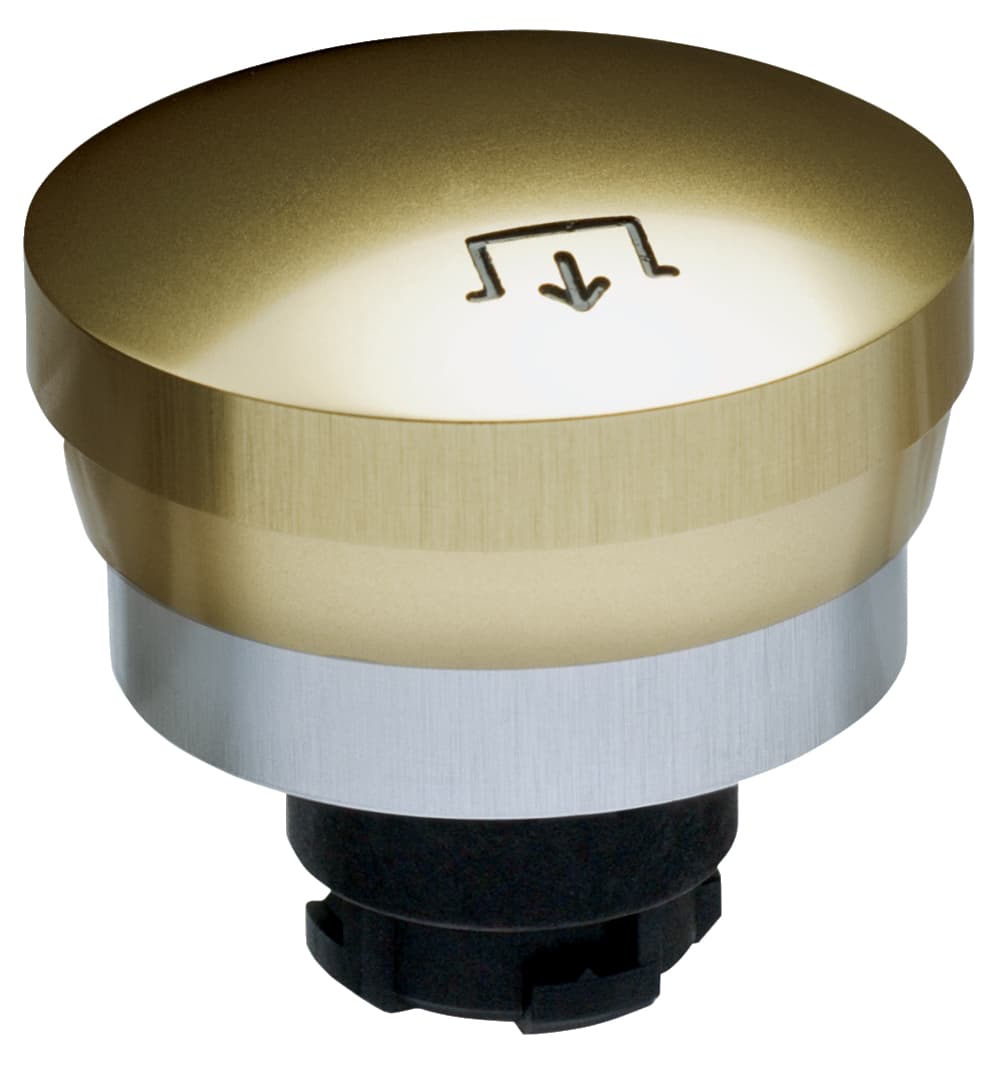

RDRZ45GB Schmersal - Mushroom Button with latching
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RDRZ45GB Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the operators Aluminium powder-coated
- Mechanical life, minimum 100,000 Operations
- Diameter total 45 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Design Round
- Snap-action mechanism integrated Yes
- Diameter hole 22.3 mm
- Ambient temperature, maximum +75 °C
- Sealing type Membrane, Lip gaskets, Form seals
- Mounting flange Yes
- Actuating stroke 4 mm
- Degree of protection IP65
- Versions Latched pushbutton - Front plate mounting
- Fully insulated Yes
- diameters for the actuating heads 45 mm
- Restistance to shock 50 g
- Colour of the front ring Silver
- Unlocking Draw unlocking
- Ambient temperature, minimum -25 °C
- Standards EN ISO 13850, IEC/EN 60947-5-5
- Material of the front ring Aluminium
- Height 27.5 mm
- Thickness of the front panel, maximum 6 mm
- Gross weight 70 g
- Colour of the operating element Yellow
- Tightening torque of the screw 0.6 Nm
- Thickness, of the front panel, minimum 1 mm
- Installation conditions (mechanical) arbitrarily
- Latching Yes
- Mounting Mounting flange EFM
- Spacing 50 x 60 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RDRZ45GB Description
RDRZ45GB Schmersal - Mushroom Button with latching
Related documents RDRZ45GB Specs
