NDTGR Schmersal Pushbuttons
Part#:NDTGR
Manufacturer:Schmersal
Alt. Part#:101163560
Product Lifecycle:Active
Get a quick Quote!

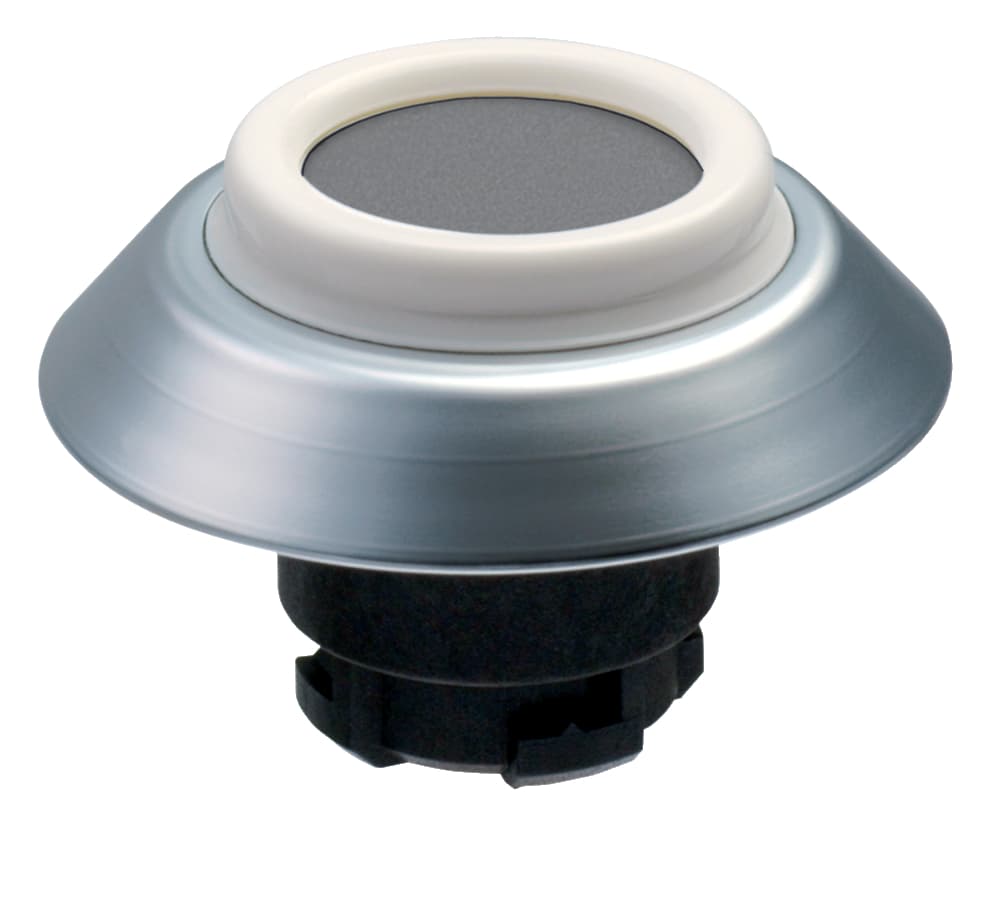

NDTGR Schmersal - Pushbutton from N Series (IP69K)
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the NDTGR Schmersal price in the box on the right side or send a quick quote.
Product Details
- Mounting flange Yes
- Spacing 50 x 50 mm
- Colour of the front ring Silver
- Fully insulated Yes
- diameters for the actuating heads 44.5 mm
- Material of the front ring ABS, chrome-plated
- Probing possible Yes
- Thickness, of the front panel, minimum 1.5 mm
- Colour of the bellows White
- Unlocking without
- Ambient temperature, minimum -25 °C
- Standards EN 60947-5-1, IEC/EN 60947-1
- Tightening torque of the screw 0.6 Nm
- Thickness of the front panel, maximum 6 mm
- Ambient temperature, maximum +80 °C
- Sealing type Membrane, Lip gaskets
- Mounting Mounting flange EFM
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Colour of the operating element Grey
- Design Round
- Material of the operators ABS
- Actuating stroke 5 mm
- Degree of protection IP67, IP69K
- Versions Embeddable button - Front plate mounting
- Gross weight 25 g
- Height 11 mm
- Diameter hole 22.3 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
NDTGR Description
NDTGR Schmersal - Pushbutton from N Series (IP69K)
Related documents NDTGR Specs
1-year warranty
