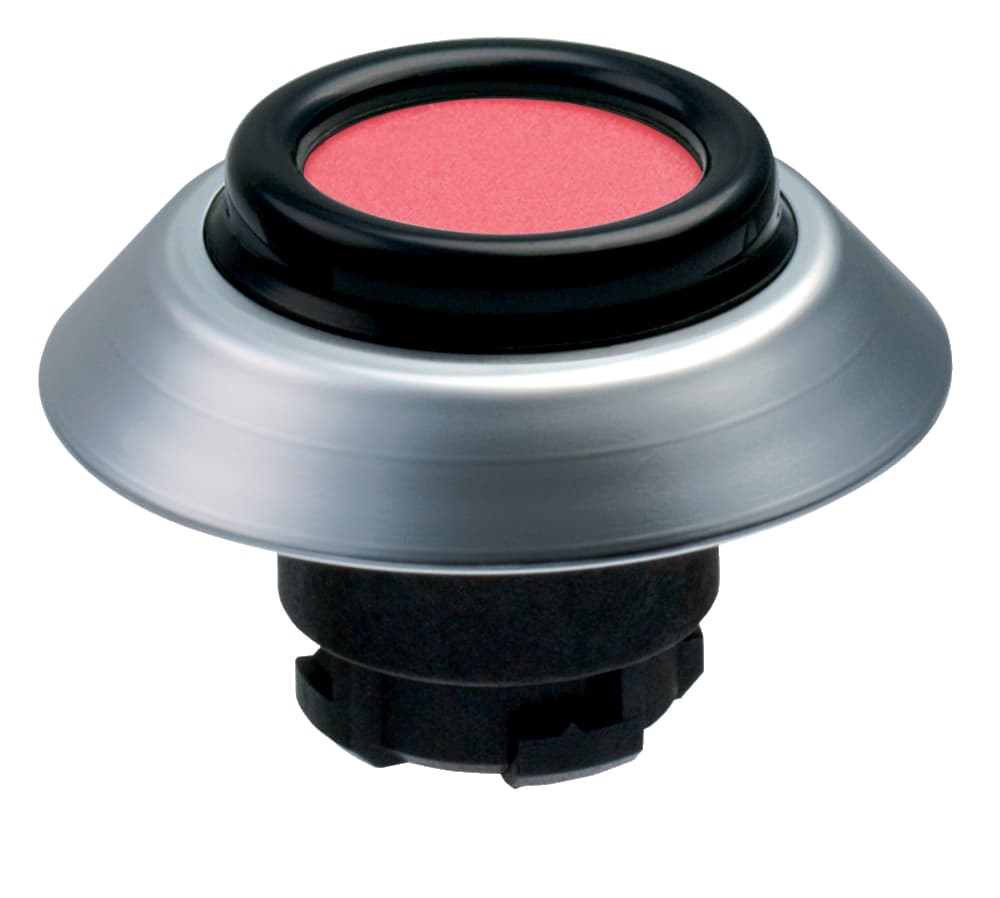

NDTGR/RTOFL Schmersal Pushbuttons
Part#:NDTGR/RTOFL
Manufacturer:Schmersal
Alt. Part#:101184142
Product Lifecycle:Active
Get a quick Quote!
Automation technology; Command and signalling devices; Only for Position switch
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the NDTGR/RTOFL Schmersal price in the box on the right side or send a quick quote.
Product Details
- Standards EN 60947-5-1, IEC/EN 60947-1
- Versions Embeddable button - Front plate mounting
- Tightening torque of the screw 0.6 Nm
- Ambient temperature, minimum -25 °C
- Gross weight 23 g
- Sealing type Membrane, Lip gaskets
- Height 11 mm
- Degree of protection IP67, IP69K
- Ambient temperature, maximum +80 °C
- Design Round
- diameters for the actuating heads 44.5 mm
- Probing possible Yes
- Material of the front ring ABS, chrome-plated
- Unlocking without
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Mounting Mounting flange EFMH
- Diameter hole 22.3 mm
- Thickness, of the front panel, minimum 1.5 mm
- Actuating stroke 5 mm
- Colour of the bellows Black
- Spacing 50 x 50 mm
- Material of the operators ABS
- Fully insulated Yes
- Colour of the front ring Silver
- Colour of the operating element Red
- Thickness of the front panel, maximum 6 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents NDTGR/RTOFL Specs
