85722 Murr Elektronik Power Supply Accessories
Part#:85722
Manufacturer:Murr Elektronik
Alt. Part#:85437
Product Lifecycle:Active
Get a quick Quote!

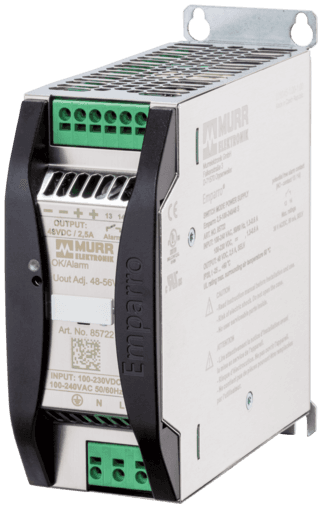

85722 Murrelektronik - Emparro 2,5-100-240/48 S, Screw mounting
About the manufacturer: Murr Elektronik is one of the manufacturers that offers Power Supply Accessories that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85722 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight790 g
- SeriesTransformators/Power Supplies
- Protection IP20
- Input voltage 85...265 V AC/90...250 V DC
- Relative humidity 5...95%, no condensation
- Unit protection short-circuit and overload protected
- Product article number of manufacturer 85722
- Mounting method 4 hole screw mounting
- Ripple max. 50 mV eff/rms
- Output voltage 48 V DC (SELV), ±1%; 48...56 V adjustable
- Output current 2.5 A
- Input fuse (internal) 6.3 A (T)
- Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
- Mains failure bridging time min. 30 ms (100 V AC); 2.5 A (48 V DC)
- Frequency 50...60 Hz
- Connection Push-In spring clamp terminals
- Spikes max. 200 mV ss/pp
- Efficiency 92.8% (110 V AC); 94.6 % (230 V AC)
- Inrush current after 1 ms max. 3.5 A (230 V AC)
- Temperature range -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
- Power factor 0.87 (230 V AC)
- Power Boost Iout N × 150% (min. 4 s)
- Input current 1.2 A (100 V AC); 0.6 A (240 V AC)
- Dimensions H×W×D 123×50×138 mm
- LED display LED (green): OK; LED (red): overload, overheating or short-circuit
- Parallel usage/serial usage max. 5 units/max. 2 units
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85722 Description
85722 Murrelektronik - Emparro 2,5-100-240/48 S, Screw mounting
Related documents 85722 Specs
