85679 Murr Elektronik AC/DC Power Supplies
Part#:85679
Manufacturer:Murr Elektronik
Product Lifecycle:Active
Get a quick Quote!

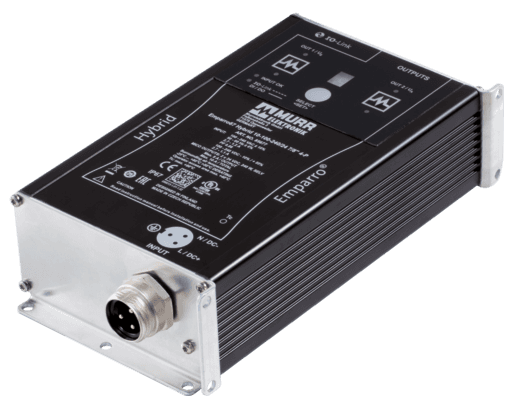

85679 Murrelektronik - Emparro67 Hybrid 3,8-100-240/24 NEC2 7/8" 4-P
About the manufacturer: Murr Elektronik is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85679 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight1900 g
- SeriesTransformators/Power Supplies
- Mounting method 6 hole screw mounting
- Spikes max. 150 mV ss/pp
- Frequency 50...60 Hz
- Dimensions H×W×D 216×110×53 mm
- Unit protection Short-circuit, overload and temperature
- Input fuse (internal) 6.3 A (T)
- Temperature range -25...+50 °C, ...+80 °C derating (storage temperature -25...+85 °C)
- No. of channels 2× MICO (Over current protection device)
- Relative humidity 4...100%
- Mains failure bridging time min. 20 ms (230 V AC)
- Connection 7/8" (female), 4-pole
- Power factor 0.88 (230 V AC)
- MTBF 610 000 h
- LED display LED (green): OK; LED (red): overload, overheating or short-circuit
- Inrush current after 1 ms max. 5.9 A (230 V AC)
- Standards IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2
- Parallel usage/serial usage no
- Product article number of manufacturer 85679
- Protection IP67
- Input voltage 90...265 V AC/90...265 V DC
- Efficiency 91.8% (115 V AC); 92.9% (230 V AC)
- Ripple max. 10 mV eff/rms
- Output voltage 24 V DC (PELV), ±1%; 24...28 V adjustable
- Output current max. 3.8 A (per channel)
- Input current 1.2 A (240 V AC)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85679 Description
85679 Murrelektronik - Emparro67 Hybrid 3,8-100-240/24 NEC2 7/8" 4-P
