85678 Murr Elektronik AC/DC Power Supplies
Part#:85678
Manufacturer:Murr Elektronik
Product Lifecycle:Active
Get a quick Quote!

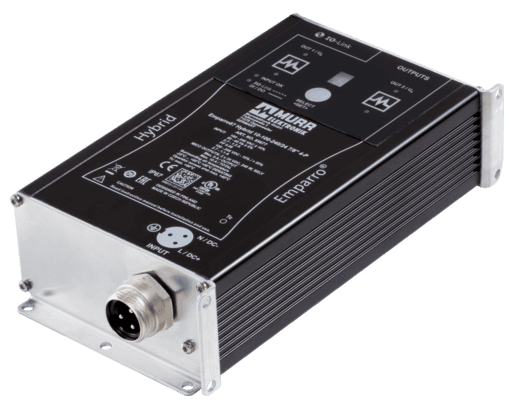

85678 Murrelektronik - Emparro67 Hybrid 10-100-240/24 M12
About the manufacturer: Murr Elektronik is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85678 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight1900 g
- SeriesTransformators/Power Supplies
- Temperature range -25...+50 °C, ...+80 °C derating (storage temperature -25...+85 °C)
- Connection M12 (female) 5-pole, L-coded
- Input current 1.2 A (240 V AC)
- Standards IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2
- Parallel usage/serial usage no
- Product article number of manufacturer 85678
- Mounting method 6 hole screw mounting
- Input voltage 90...265 V AC/90...265 V DC
- LED display LED (green): OK; LED (red): overload, overheating or short-circuit
- Inrush current after 1 ms max. 5.9 A (230 V AC)
- Efficiency 91.6% (115 V AC); 92.8% (230 V AC)
- Unit protection Short-circuit, overload and temperature
- Relative humidity 4...100%
- Mains failure bridging time min. 20 ms (230 V AC)
- Power factor 0.88 (230 V AC)
- MTBF 430 000 h
- Spikes max. 150 mV ss/pp
- Frequency 50...60 Hz
- Protection IP67
- Ripple max. 10 mV eff/rms
- Input fuse (internal) 6.3 A (T)
- Output voltage 24 V DC (SELV), ±1%; 24...28 V adjustable
- No. of channels 2× MICO (Over current protection device)
- Dimensions H×W×D 216×110×53 mm
- Output current max. 8 A (per channel), max. 10 A (total)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85678 Description
85678 Murrelektronik - Emparro67 Hybrid 10-100-240/24 M12
Related documents 85678 Specs
1-year warranty
